Vimar - 03224.3 - 25u patch panel floor-cabinet 640x640
Vimar - 03224.3 - 25u patch panel floor-cabinet 640x640

03224.3
System infrastructure / Netsafe structured wiring / Surface mounting components / Carpentry

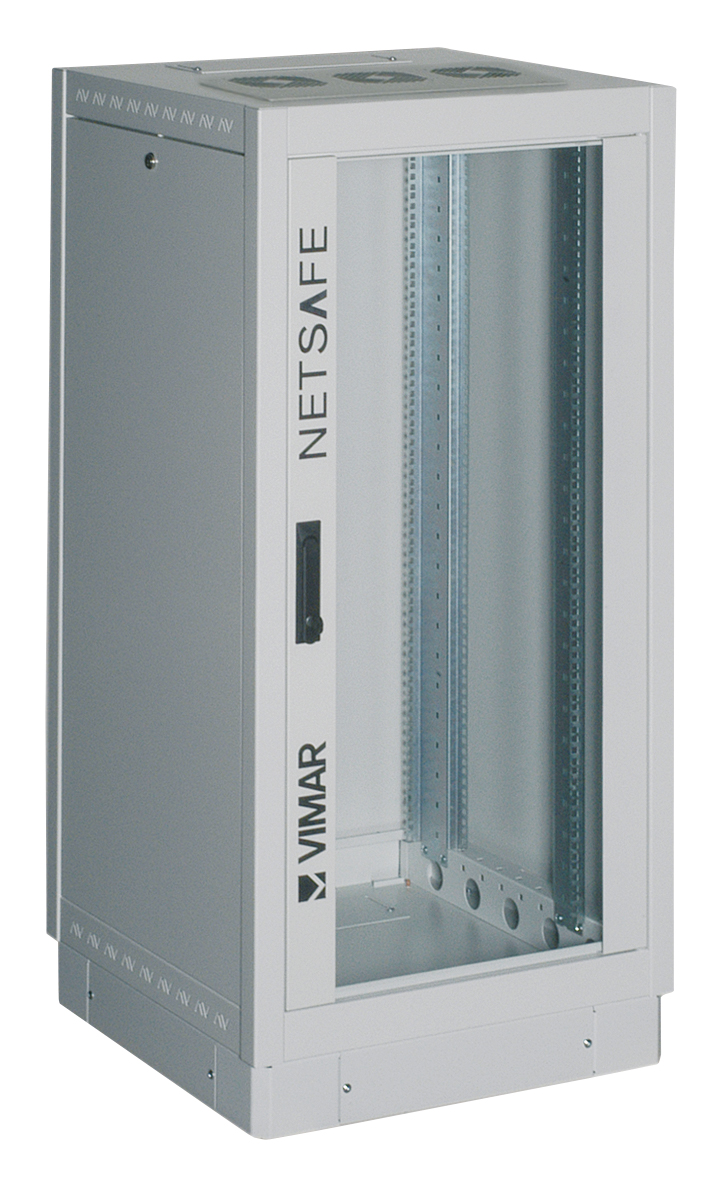

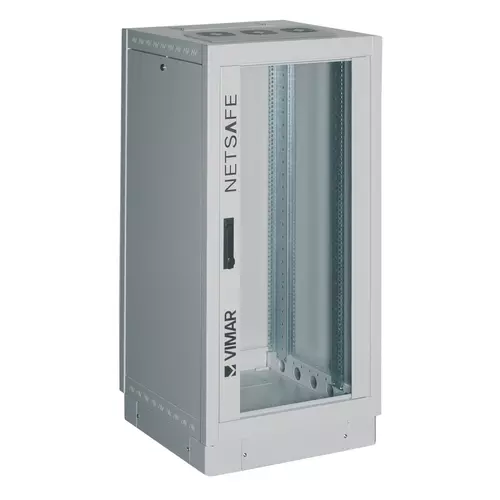

25u patch panel floor-cabinet 640x640
Floor mount cabinet for 19 in patch panels of up to 25 rack units, RAL 7035. Dimensions 640x640x1359 mm

Product Status
2 - Will be discontinued

Drawings

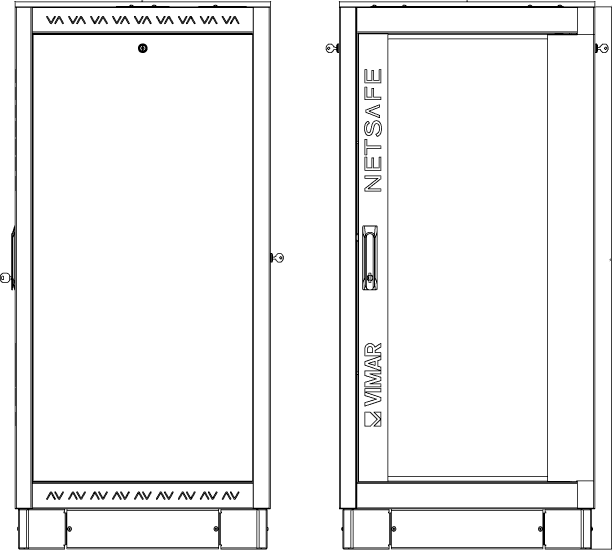

view encumbered art. 03224.3
PNG DXF

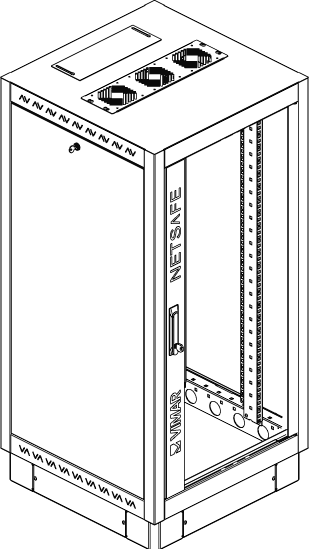

3D view art. 03224.3
PNG DXF
Class group
Cabinet enclosures
Class
Network/server enclosure
Type of profile rail
L-shaped
Number of doors
2
Type of ventilation
None
Width
640 mm
Height
1.359 mm
Depth
640,00 mm
Modular spacing
482.6 mm (19 inch)
Number of height units
25
With roof plate
Yes
With earthing
Yes
With front door
Yes
With rear door
Yes
With sidewall
Yes
With base
Yes
Material
Other
Surface finishing
Lacquered
Colour
Grey
Model
With swing frame
RAL-number
0
Demountable
Yes
Degree of protection (IP)
IP20
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352276550
1 NR
79.5x65x147.5 [cm]
73,000 [g]
