Wall mount cabinet-19in12u 600x514x626mm - 03212.4

Pdf
Vimar - 03212.4 - Wall mount cabinet-19in12u 600x514x626mm
Vimar - 03212.4 - Wall mount cabinet-19in12u 600x514x626mm

03212.4
System infrastructure / Netsafe structured wiring / Surface mounting components / Carpentry

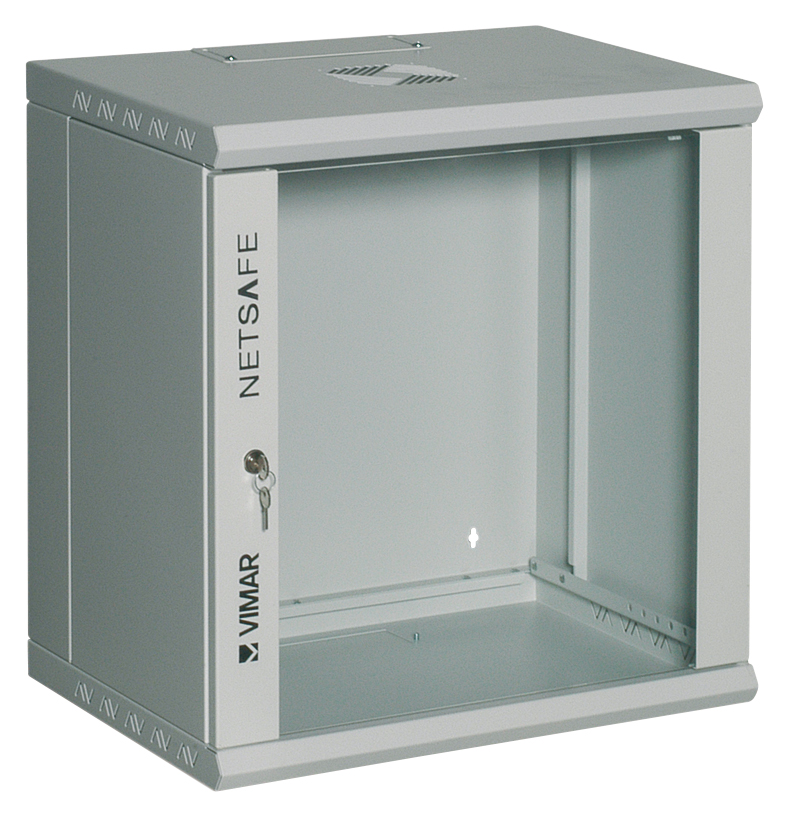

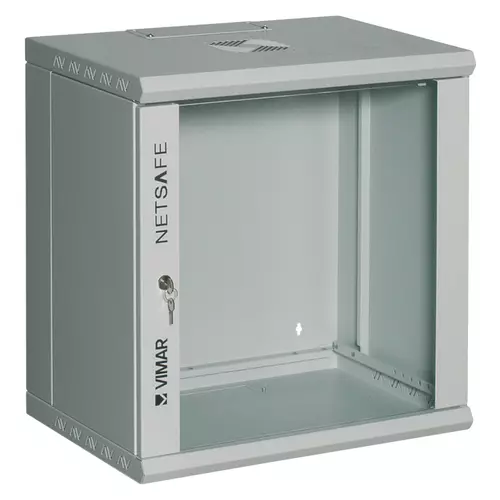

Wall mount cabinet-19in12u 600x514x626mm
Surface mounting cabinet for 19 panel installation in up to 12 rack units, RAL 7035. Dimensions 600x514x626mm

Product Status
3 - Active

Drawings

view encumbered art. 03212.4
PNG DXF

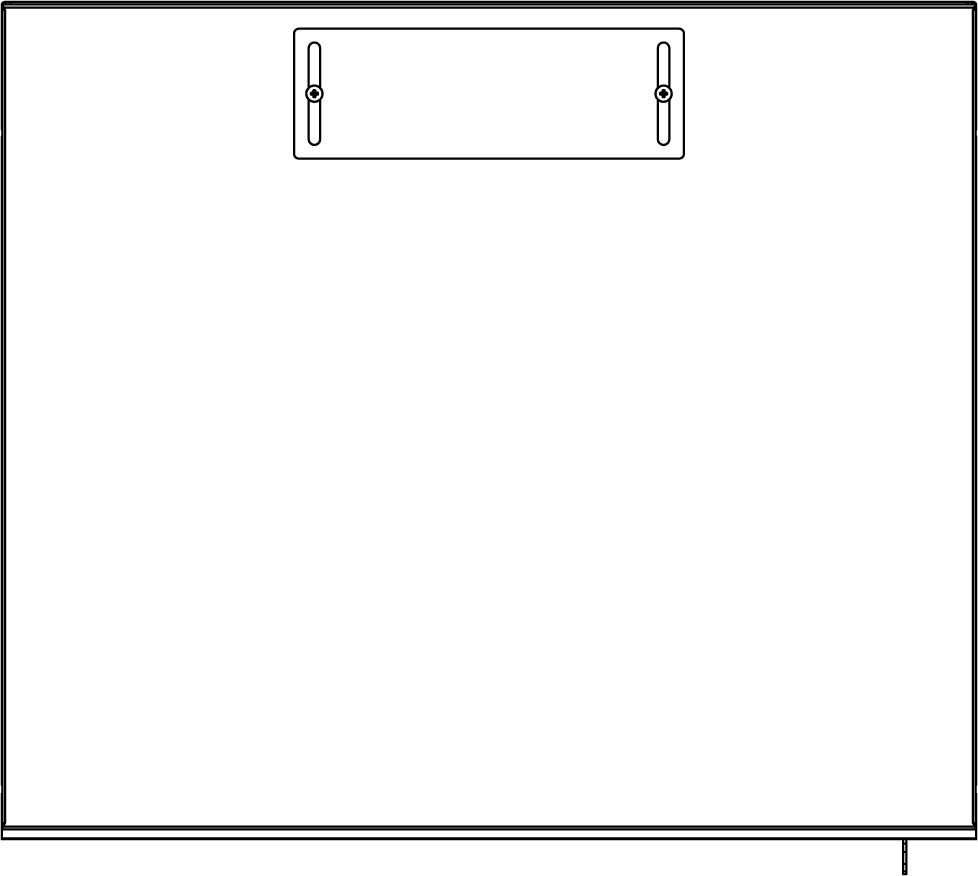

rear view art. 03212.4
PNG DXF
3D view art. 03212.4
PNG DXF
Class group
Cabinet enclosures
Class
Network/server enclosure
Type of profile rail
L-shaped
Number of doors
1
Type of ventilation
None
Width
600 mm
Height
630 mm
Depth
515,00 mm
Modular spacing
482.6 mm (19 inch)
Number of height units
12
With roof plate
Yes
With earthing
Yes
With front door
Yes
With rear door
No
With sidewall
Yes
With base
No
Material
Other
Surface finishing
Lacquered
Colour
Grey
Model
With swing frame
RAL-number
0
Demountable
Yes
Degree of protection (IP)
IP20
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352559257
1 NR
64.8x46.5x64.2 [cm]
24,836.78 [g]
