8-fibre multi 50/125 OM3 Eca cable-500m - 03154.E

03154.E
System infrastructure / Netsafe structured wiring / Cables and patch-cords / Cable

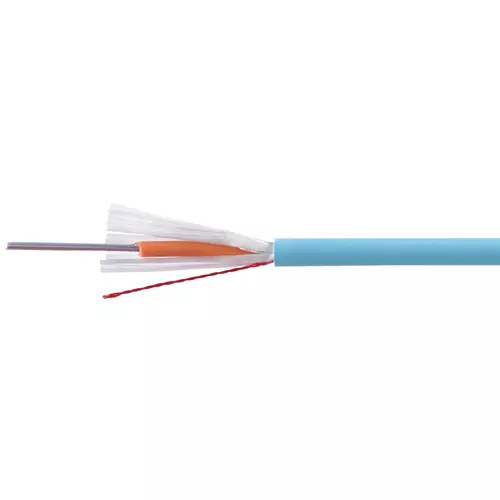

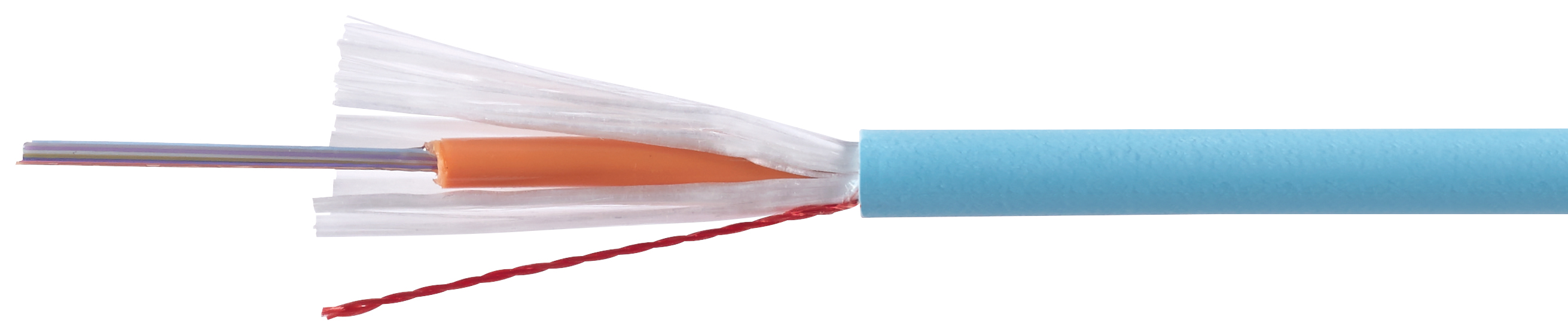

8-fibre multi 50/125 OM3 Eca cable-500m
50/125 µm OM3 multimodal loose Netsafe fiber-optic cable, 8-fiber, with LSZH sheath, suitable for installation with I Category power supply cables (U0 = 400 V), sea-green - 500 m reel

Product Status
3 - Active

• ETIM technical data
• Certifications
• Supply data

Class group
Cables

Class
Fibre optic cable

Number of fibres
8

Type of tube
Loose tube

Number of fibres per tube
8

Fibre type
Multi mode 50/125

With strain relief
No

With rodent protection
Yes

Armouring/reinforcement
None

Material outer sheath
Other

Colour outer sheath
Other

Longitudinal water blocking cable
No

Radial water blocking cable
No

Cable metal free
Yes

Oil resistant according to EN IEC 60811-404
No

Resistant to chemicals
No

Outer diameter approx.
6,30 mm

00. CE Marking - EU

Minimum order quantity: 500 M

---

Barcode

8007352574908

1 M

100x0.63x0.63 [cm]

45 [g]

8007352574915

500 M

32x32x61 [cm]

22,500 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
