Dial thermostat KNX 2M grey - 02972

Pdf

02972
Smart systems&products / KNX / Shared components / Devices

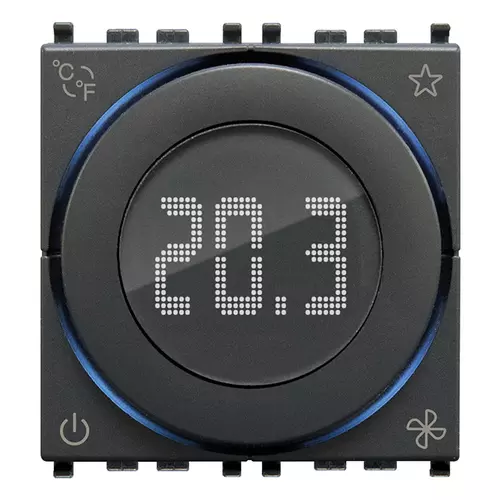

Dial thermostat KNX 2M grey
Rotary dial thermostat for room temperature control (heating and air conditioning), for KNX automation, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, can be interfaced with KNX actuator with proportional analogue outputs to realize a class V modulating room thermostat (contribution 3%), 1 input for electronic temperature sensor 20432, 19432 or 14432 or wired temperature sensor 02965.1, 1 programmable digital input, white LED backlighting, grey - 2 modules. To be completed with Eikon, Arké and Plana cover plates, for Idea with dedicated mounting frame 16723

Product Status
3 - Active

Class group
Stats, switches and controllers
Class
Room thermostat
Model
Other
Connection
2-wire
With receiver
No
External sensor
Yes
Thermal feedback
Parallel
Control characteristic
PID
Suitable for heating
Yes
Number of heater outputs
1
Number of cooler outputs
1
Adjustable differential
Yes
Temperature readable
Yes
With sound indicator
No
Sensor/feeler type
Resistance sensor
Mounting method
Flush-mounted
Number of modules (module system)
2
With display
Yes
Operation
Turn
With tap water circuit
No
Max. contact voltage
29 V
Max. contact load
0 A
Degree of protection (IP)
IP20
Explosion-proof
Yes
Colour
Grey
RAL-number
7024

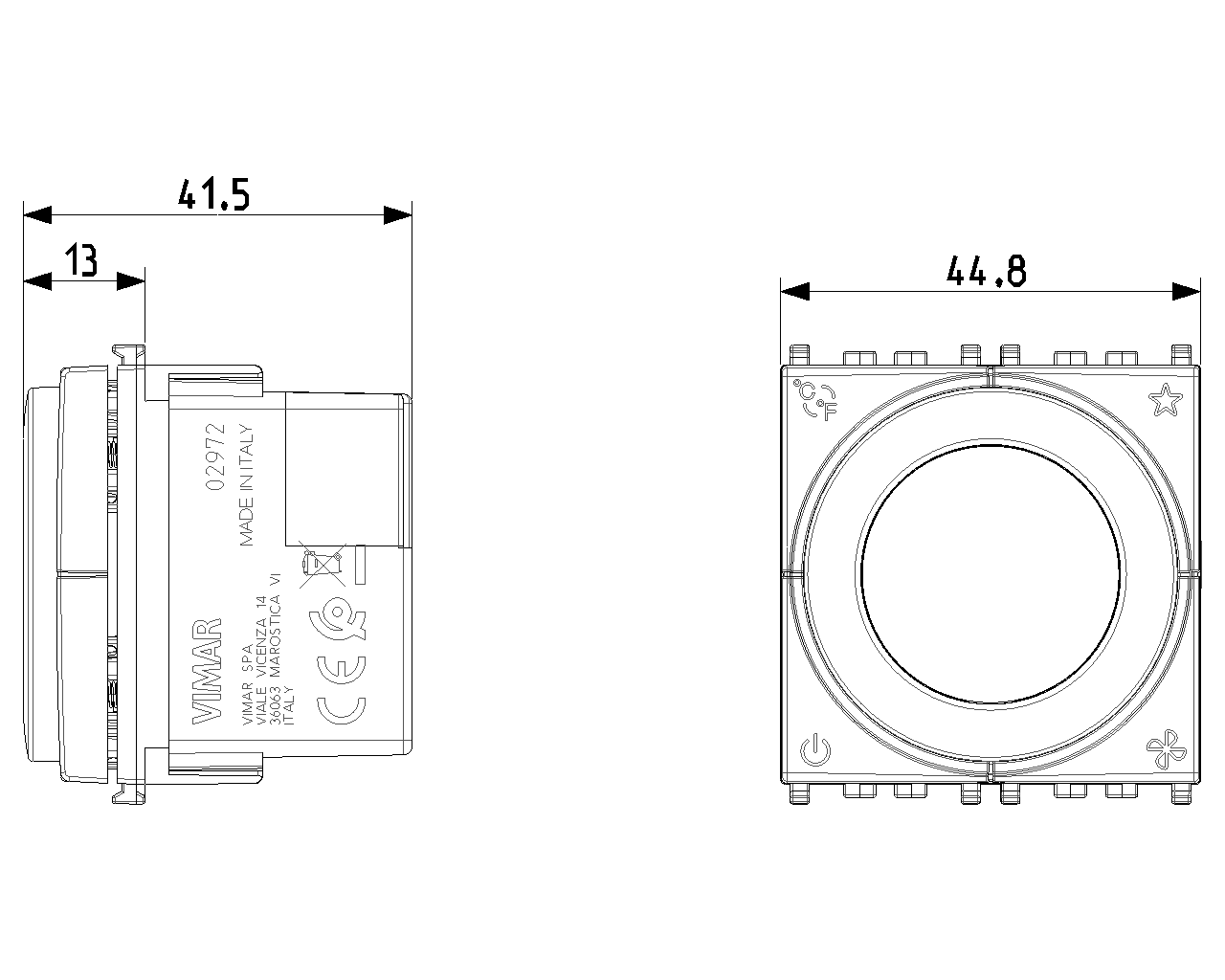

Height
49,00 mm
Width
44,80 mm
Depth
41,50 mm
Diameter
0 mm
Class of the temperature control
V

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352668416
1 NR
5.7x5.3x7.7 [cm]
74.38 [g]
Barcode Qty 60 NR
8007352746428
60 NR
37.5x30x13.5 [cm]
4,796.52 [g]
Barcode Qty 70 NR
8007352668423
70 NR
39.5x30x17 [cm]
5,596 [g]
