RGB emergency lamp Eikon/Arké/Plana - 02663

Pdf

02663
Wiring devices / Traditional wiring devices / Shared components / Devices

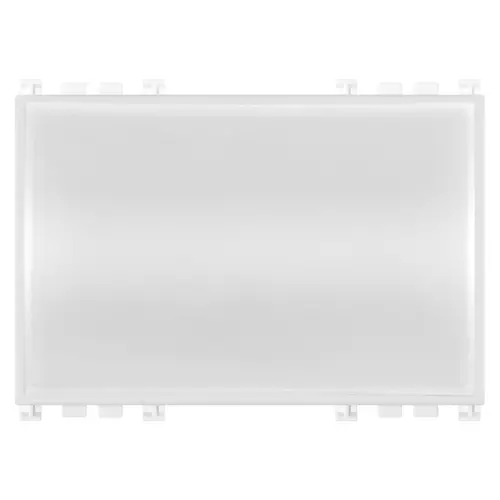

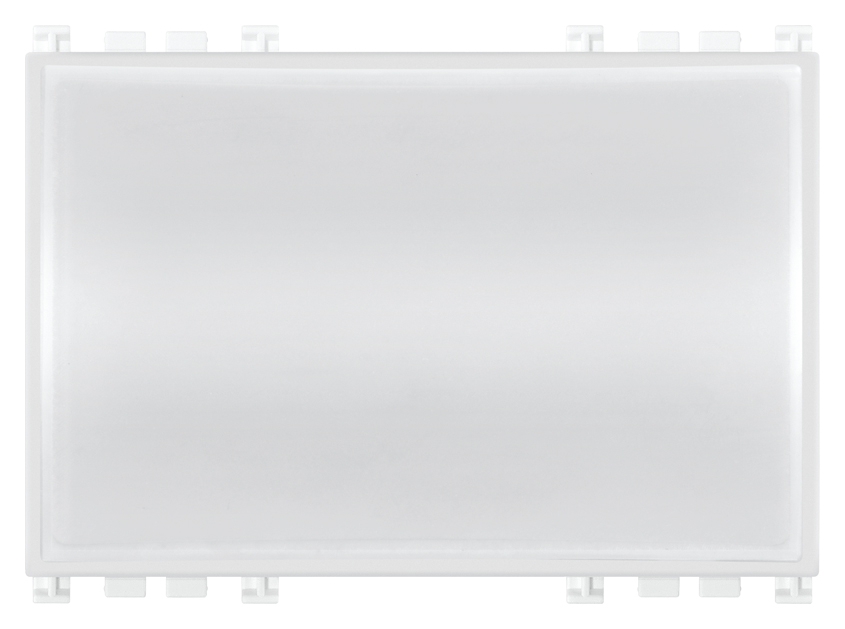

RGB emergency lamp Eikon/Arké/Plana
RGB LED lamp, supply voltage 230 V~ 50 Hz, from RGD and FADING-SHOW dimmers control, with automatic emergency device, 3 replaceable and rechargeable 1,2 V AAA batteries, 3 hours of operating range - 3 modules. To complete with Eikon, Arké or Plana cover plates

Product Status
2 - Will be discontinued

Class group
Luminaires
Class
Emergency luminaire
Monitoring equipment
None
With remote switch connection
Yes
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Housing colour
White
Voltage type
AC
Nominal voltage
230,00 - 230,01 V
Degree of protection (IP)
IP40
Protection class
II
Max. system power
3,00 W

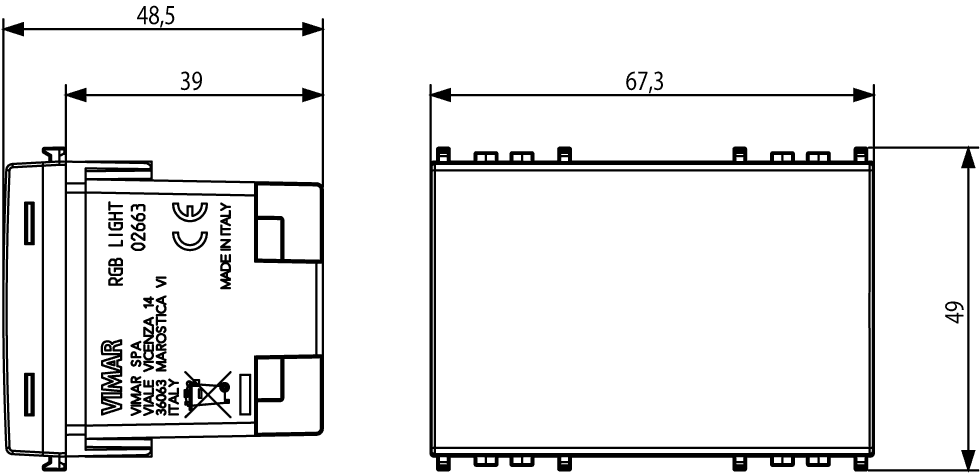

Width
67,30 mm
Height/depth
48,50 mm
Length
49,00 mm
Built-in width
67,30 mm
Built-in height/depth
39,00 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352468726
1 NR
11.2x9.6x9.8 [cm]
173.1 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
