LED emergency lamp 230V Eikon Evo 7M - 02661

02661
Wiring devices / Traditional wiring devices / EIKON / Devices

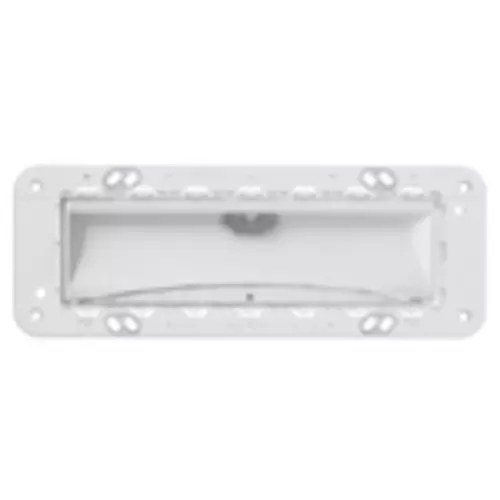

LED emergency lamp 230V Eikon Evo 7M
Emergency lighting device with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, rechargeable Ni-Cd battery, built-in mounting frame for 6/7-module flush mounting boxes. To complete with Eikon Evo cover plate

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (804 kb)

---

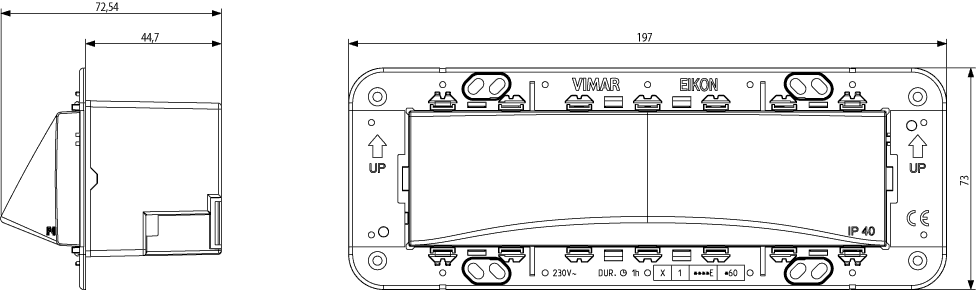

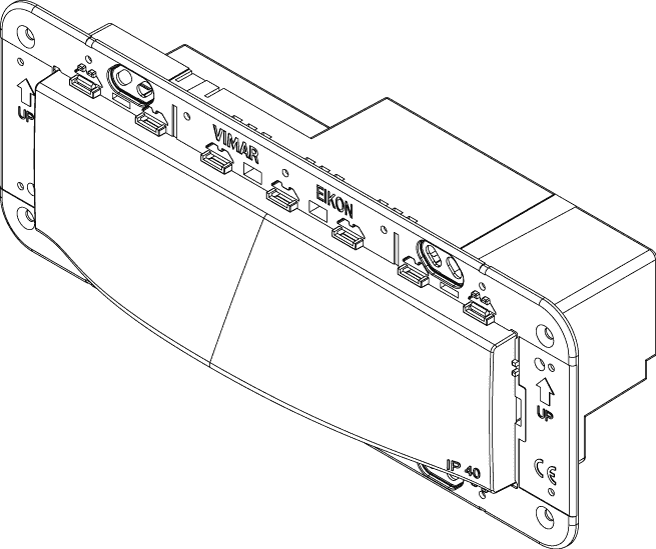

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Luminaires

Class
Emergency luminaire

Monitoring equipment
None

With remote switch connection
Yes

Power supply system
Peripheral (individual battery)

Battery quality
NiCd

Lamp type
LED not exchangeable

With light source
Yes

Housing colour
White

Voltage type
AC

Nominal voltage
230,00 - 230,01 V

Degree of protection (IP)
IP40

Protection class
II

Max. system power
5,00 W

Rated luminous flux according to IEC 62722-2-1
75

Width
73,00 mm

Height/depth
72,50 mm

Length
197,00 mm

Built-in width
197,00 mm

Built-in height/depth
44,70 mm

00. CE Marking - EU

17. ENEC 03 (IMQ)

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352424159

1 NR

22.5x9.7x10 [cm]

393.5 [g]
