02653
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

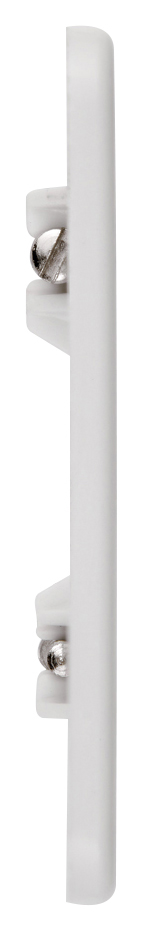

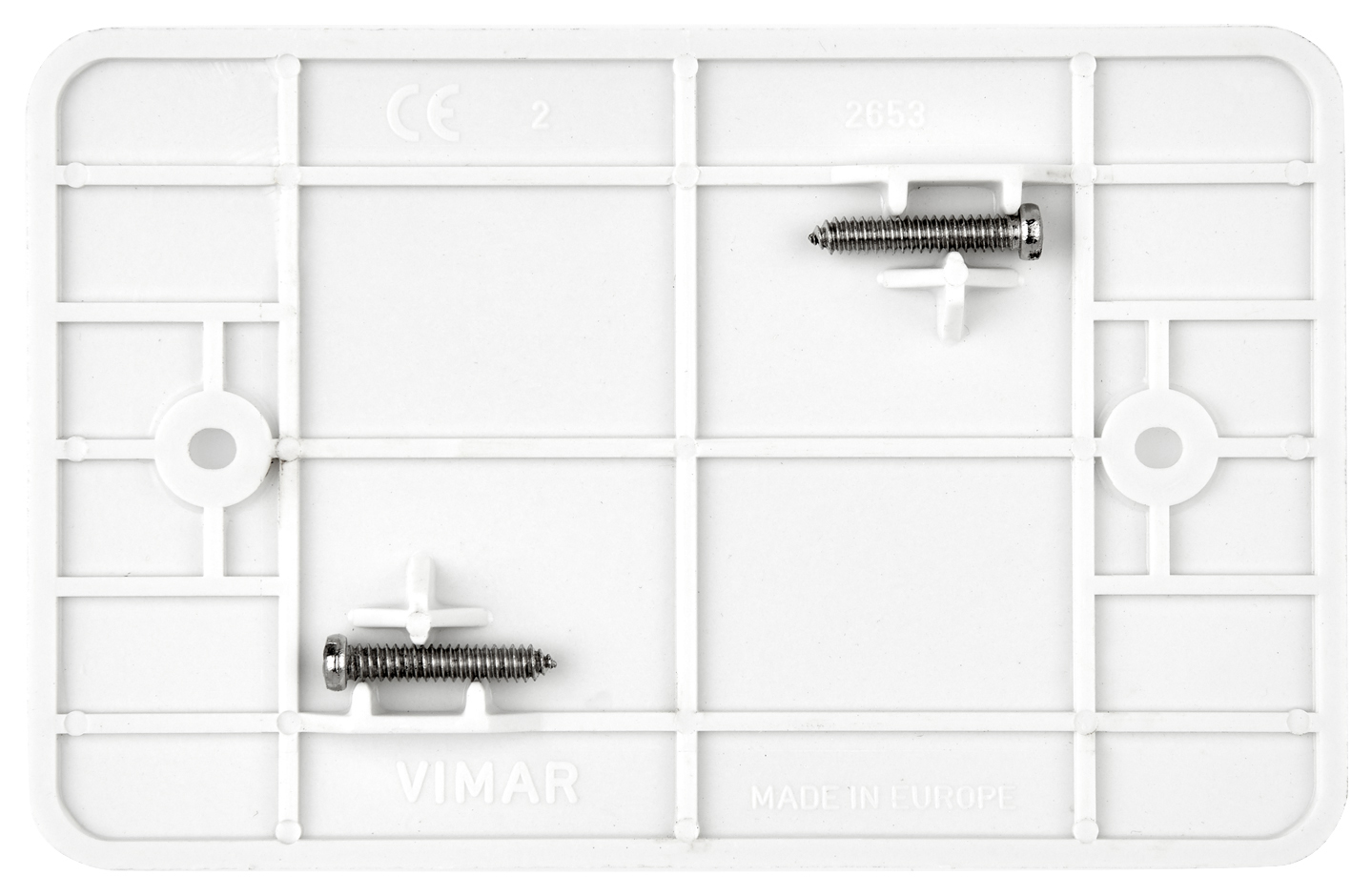

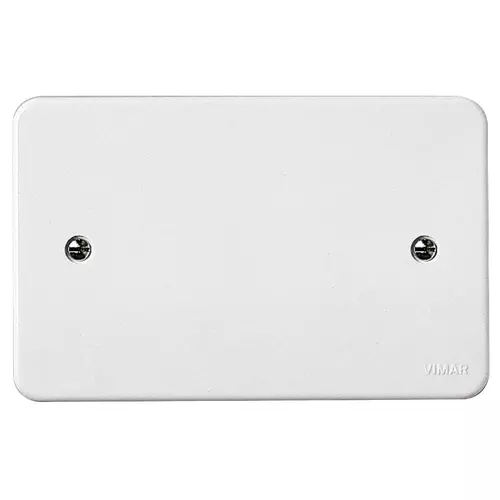

Cover for 3M-flush mounting boxes white
Rectangular cover with screws for 3-module mounting boxes, urea resin, white. Fixing centres at 83,5 mm
Product Status
3 - Active

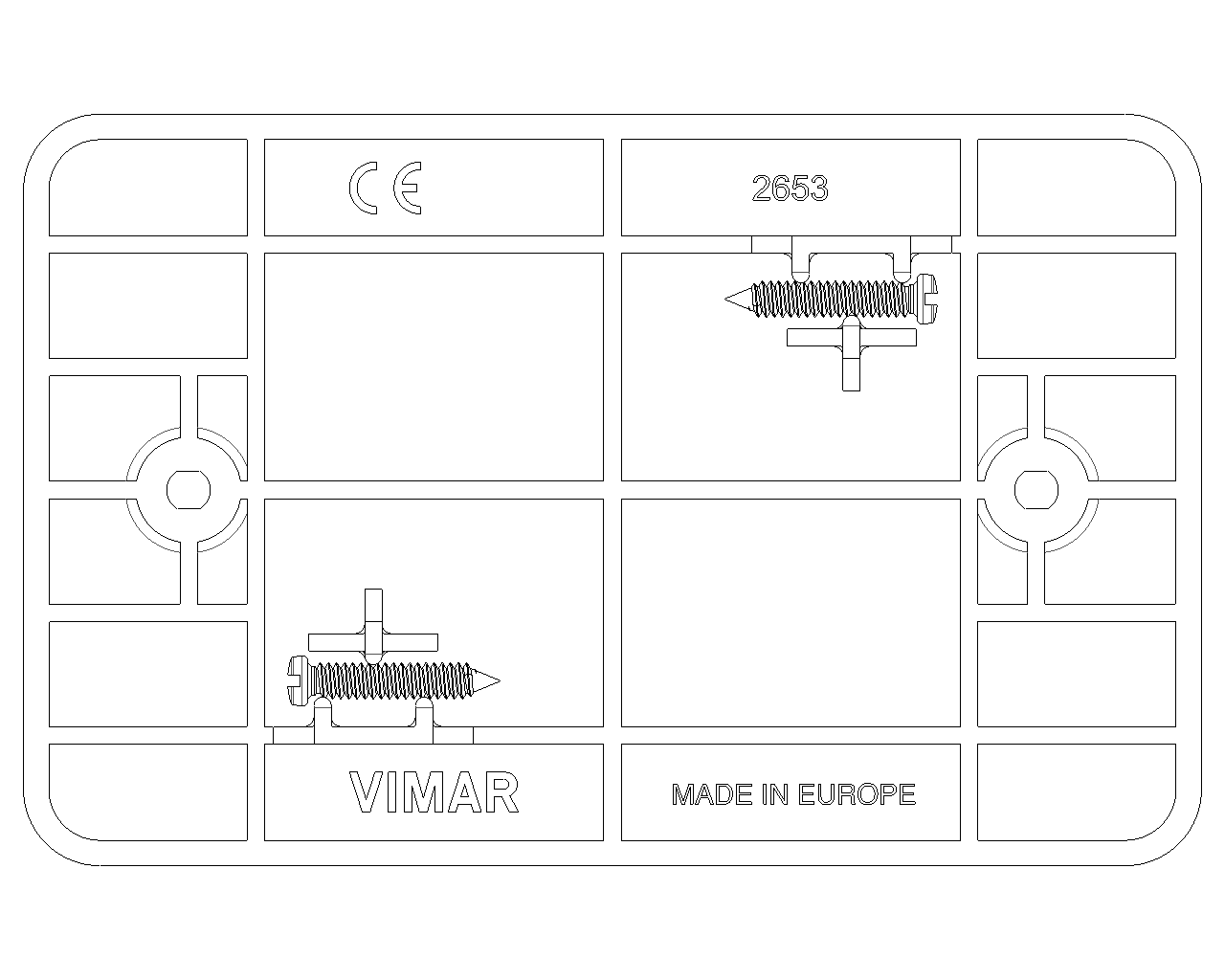

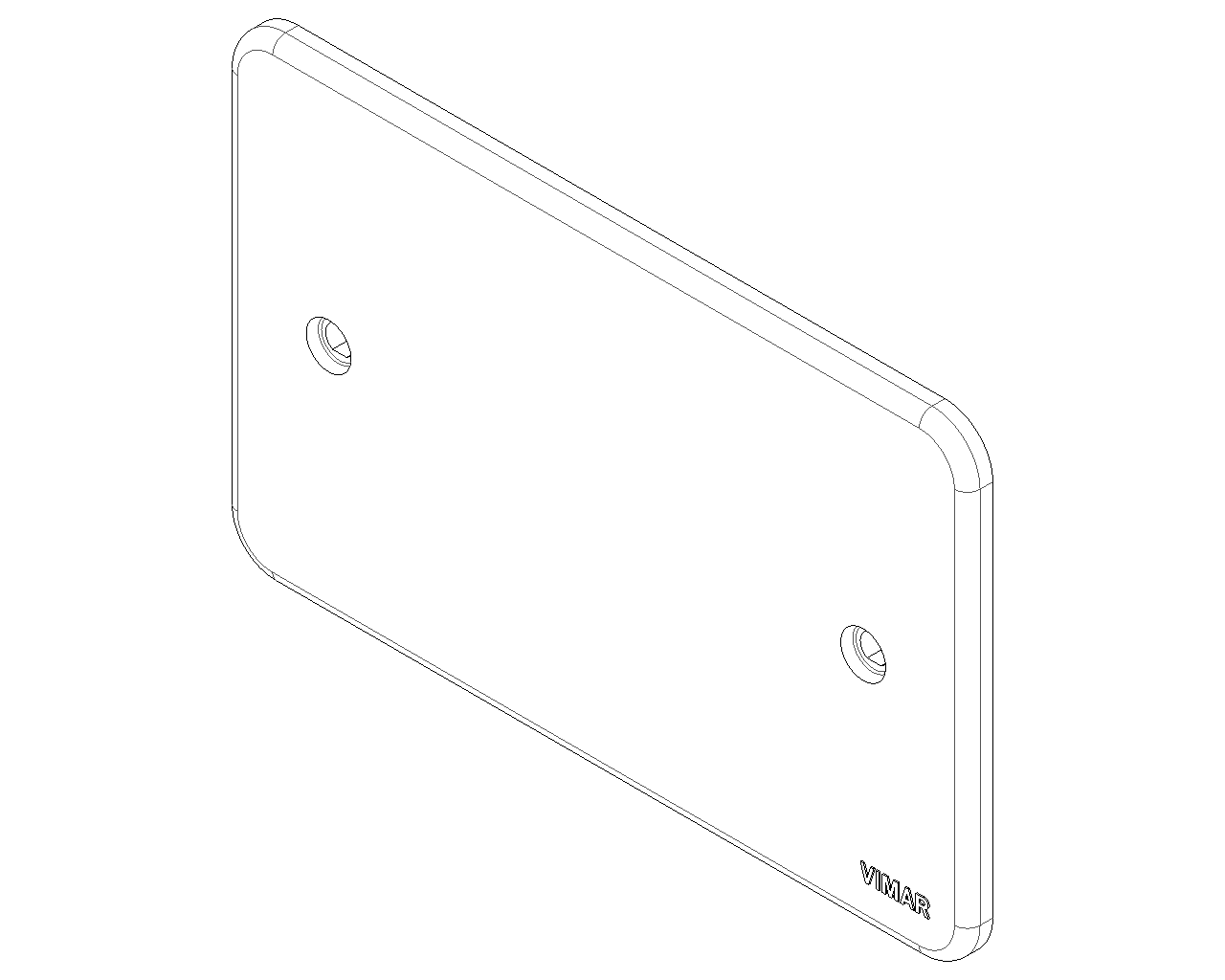

Drawings
Class group
Connection material (electrotechnical)
Connection material (electrotechnical)
Class
Cover for box/housing for built-in mounting in the wall/ceiling
Cover for box/housing for built-in mounting in the wall/ceiling
Diameter
0 mm
0 mm
Length
74,00 mm
74,00 mm
For box-/housing length
59,00 mm
59,00 mm
Width
116,00 mm
116,00 mm
For box-/housing width
96 mm
96 mm
Depth
3,00 mm
3,00 mm
Shape
Rectangular
Rectangular
Type of fastening
Cover for mounting with screws
Cover for mounting with screws
Model
Blind cover
Blind cover
Material
Plastic
Plastic
Halogen free
Yes
Yes
Colour
White
White
With screws
Yes
Yes
Sealable
No
No
Minimum order quantity: 50 NR
Barcode
8007352059894
1 NR
9x9x3 [cm]
40.81 [g]
8007352033498
50 NR
24.4x13.9x11.9 [cm]
2,144.67 [g]
8007352368613
300 NR
38.5x29.5x25 [cm]
13,180 [g]
