Round cover ø94mm +claws white - 02646

Pdf

02646
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

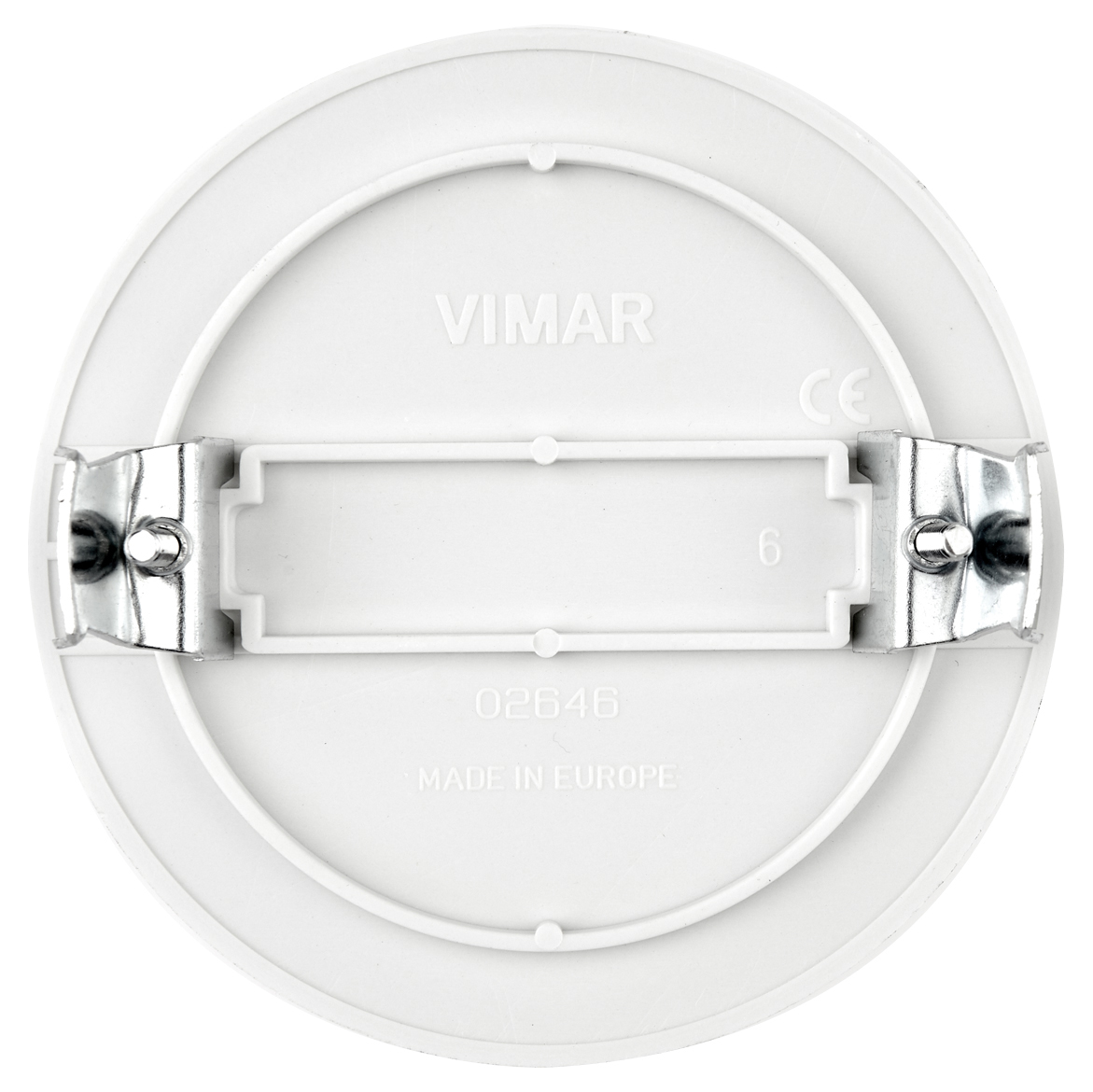

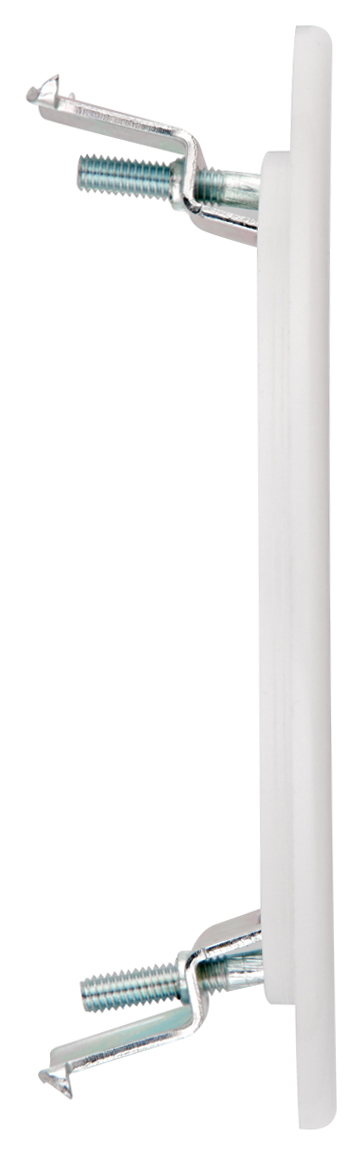

Round cover ø94mm +claws white
ø 94 mm round cover with claws for ø 75-85 mm round mounting boxes, urea resin, white

Product Status
3 - Active

Class group
Connection material (electrotechnical)
Class
Cover for box/housing for built-in mounting in the wall/ceiling
Diameter
94 mm
Length
94,00 mm
For box-/housing length
85,00 mm
Width
94,00 mm
For box-/housing width
94 mm
Depth
3,00 mm
Shape
Rectangular
Type of fastening
Cover for mounting with screws
Model
Blind cover
Material
Plastic
Halogen free
Yes
Colour
White
With screws
Yes
Sealable
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352038448
1 NR
9x9x3 [cm]
44.2 [g]
Barcode Qty 100 NR
8007352024588
100 NR
39.5x30x17 [cm]
4,660 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
