Lamphld - G5 fluorescent lamp - 02405

02405
Portable installation / Lighting components / Lampholders / Fluorescent lampholders

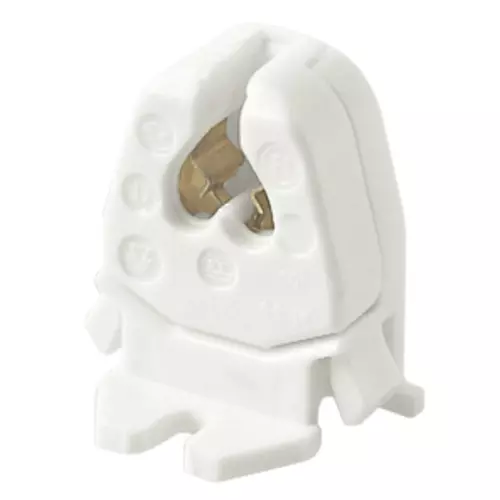

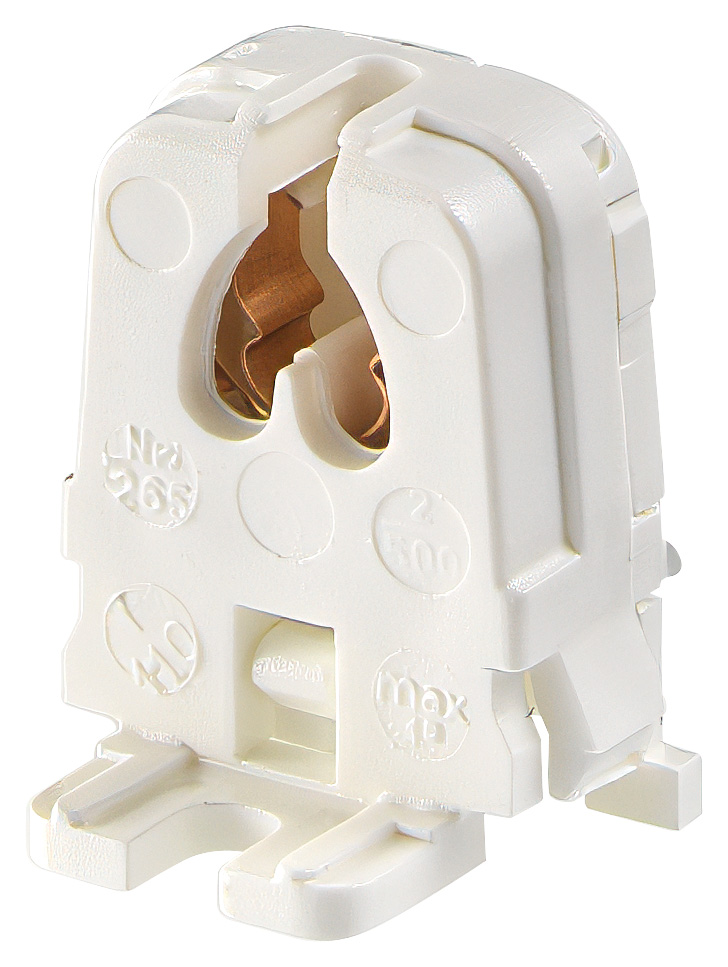

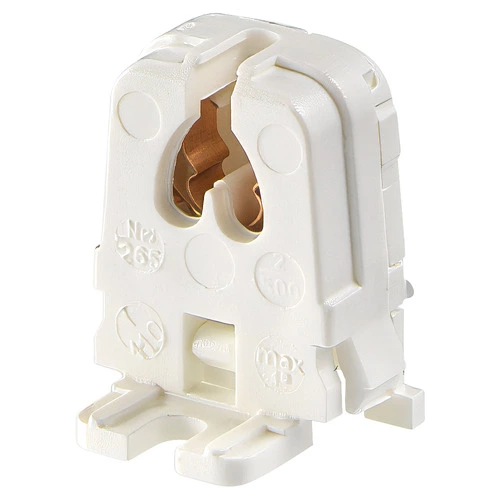

Lamphld - G5 fluorescent lamp
2 A 250 V lampholder for G5 fluorescent tubular lamps, snap fixing, screwless terminals for rigid and flexible conductors 0,5 mm2 to 1 mm2, brass contacts, rated operating temperature 110 °C, white

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

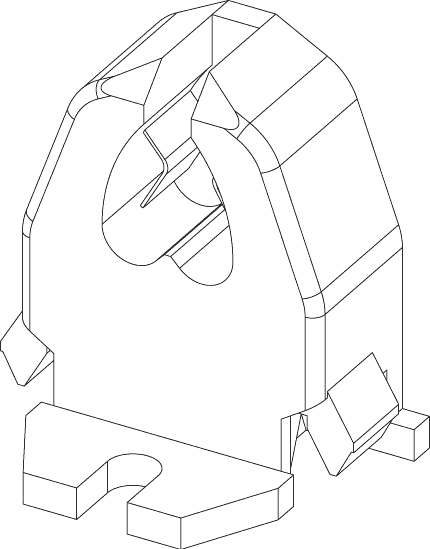

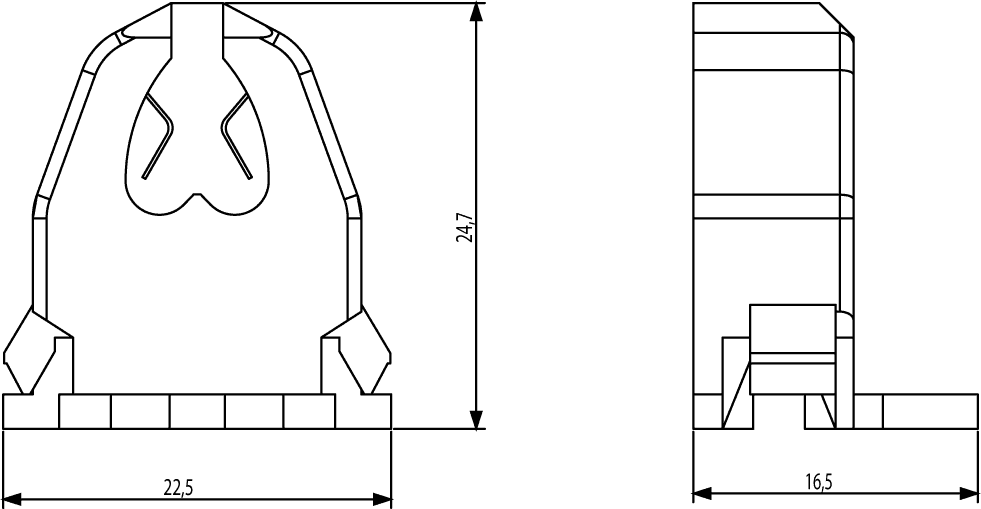

Drawings

PNG DXF

PNG DXF

Class group
Accessories for lighting

Class
Lamp holder

Model
Plug-in lamp holder

Material
Other

Colour
White

Lamp holder
G5

With starter insertion
No

Type of fastening
Plug-in mounting

Nipple thread
None

00. CE Marking - EU

18. ENEC 10 (VDE)

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 100 NR

---

Barcode

8007352037922

1 NR

2.9x4x2.4 [cm]

3.2 [g]

8007352011274

100 NR

13.9x11.9x7.4 [cm]

365.4 [g]

8007352643307

2,000 NR

38.5x29.5x25 [cm]

7,660 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
