Lamphld - 6A/250V steatite halogen lamp - 02391

02391
Portable installation / Lighting components / Lampholders / Halogen lampholders

Lamphld - 6A/250V steatite halogen lamp

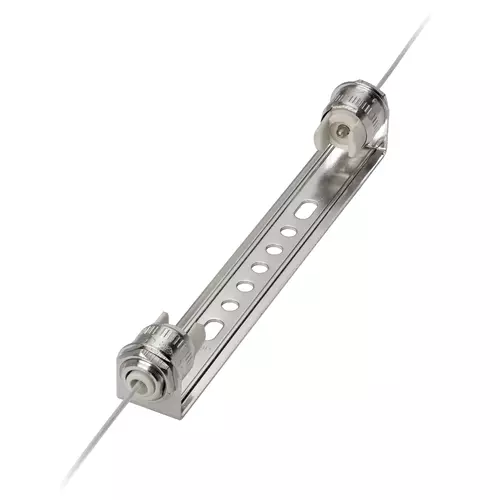

6 A 250 V cylindrical steatite lampholder, nickel-plated brass casing, for halogen lamps with cap R7s rating 300-500 W, 250 mm PTFE teflon cable 0,75 mm2 - straight fixing bracket. Rated operating temperature: the lampholder and the cable 250 °C. Fixing bracket with ø 7,2 mm central hole and 4,5x7 mm slots, 68 mm fixing centres

Product Status
3 - Active

• ETIM technical data
• Certifications
• Supply data

Class group
Accessories for lighting

Class
Lamp holder

Model
Double lamp holder

Material
Other

Colour
White

Lamp holder
R7s

With starter insertion
No

Type of fastening
Screw mounting

Nipple thread
None

00. CE Marking - EU

17. ENEC 03 (IMQ)

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

---

Barcode

8007352037915

1 NR

15.1x1.4x1.4 [cm]

61.6 [g]

8007352011267

20 NR

24.4x13.9x8.4 [cm]

1,292 [g]

8007352643321

200 NR

47.5x27x29 [cm]

13,440 [g]
