Lamphld - 8A/250V steatite halogen lamp - 02380

02380
Portable installation / Lighting components / Lampholders / Halogen lampholders

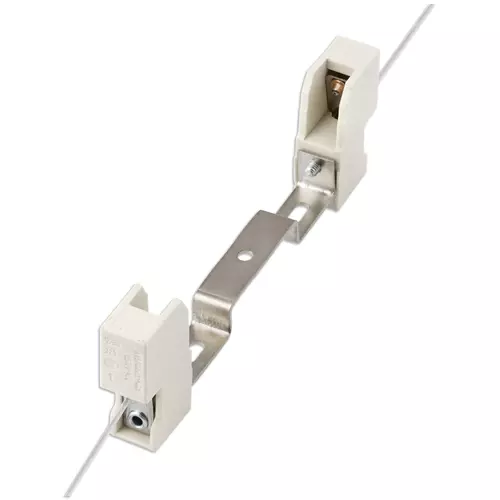

Lamphld - 8A/250V steatite halogen lamp
8 A 250 V steatite body lampholder for halogen lamps R7s rating 300-500 W, 200 mm PTFE teflon cable 0,75 mm2 - median fixing bracket. Rated operating temperature : the lamholder 350 °C and the cable 250 °C. Fixing bracket with ø 4,5 mm central hole and 4,5x9,5 mm slots, 65 mm fixing centres

Product Status
3 - Active

• ETIM technical data
• Certifications
• Supply data

Class group
Accessories for lighting

Class
Lamp holder

Model
Double lamp holder

Material
Other

Colour
White

Lamp holder
R7s

With starter insertion
No

Type of fastening
Screw mounting

Nipple thread
None

00. CE Marking - EU

17. ENEC 03 (IMQ)

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

---

Barcode

8007352037885

1 NR

14.1x4x1.4 [cm]

64.13 [g]

8007352011236

20 NR

28.4x18.4x9.5 [cm]

1,495.47 [g]

8007352643512

120 NR

57.5x22.5x30 [cm]

9,484 [g]
