LED RGB driver 230V 50Hz 12-24Vdc - 01876

01876
Wiring devices / Traditional wiring devices / Shared components / Accessories

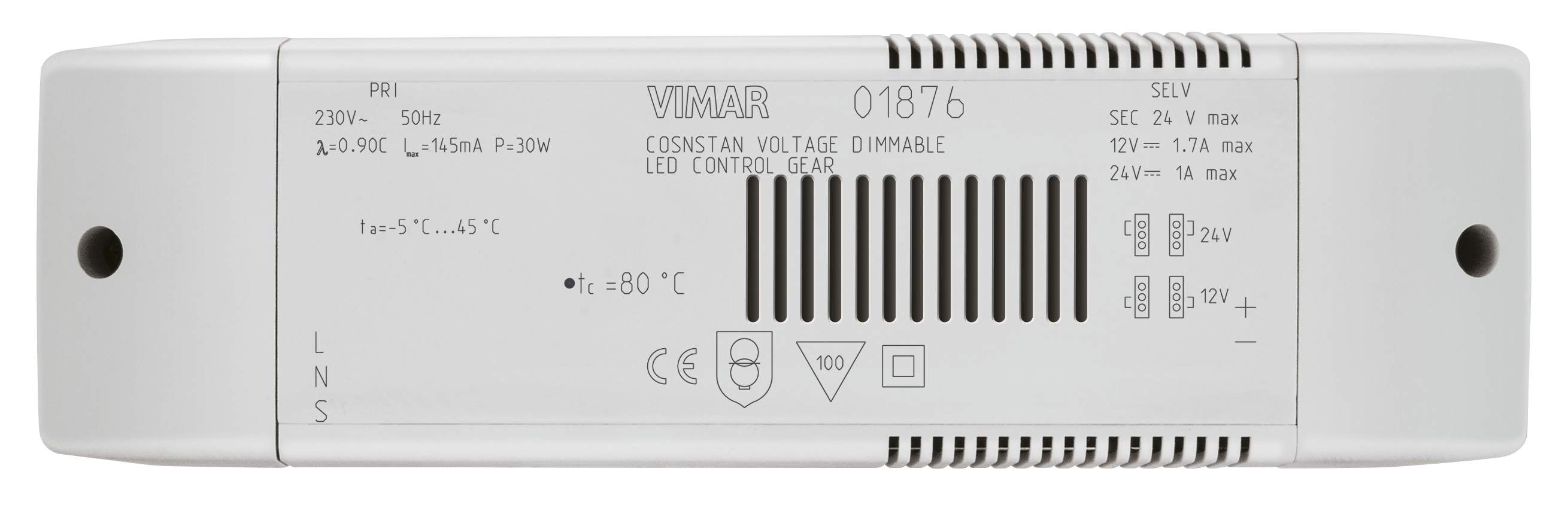

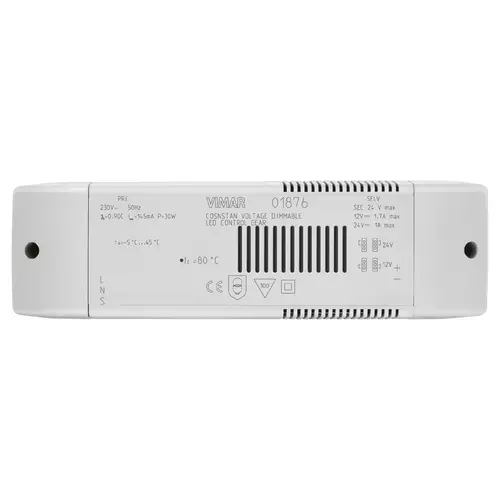

LED RGB driver 230V 50Hz 12-24Vdc
Multivoltage driver 230 V~ 50 Hz for RGB LED modules 12/24 Vdc, dimmable with RGB and FADING-SHOW dimmers

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1251 kb)
• Installation diagrams (2458 kb)

Video

• New universal dimmers

---

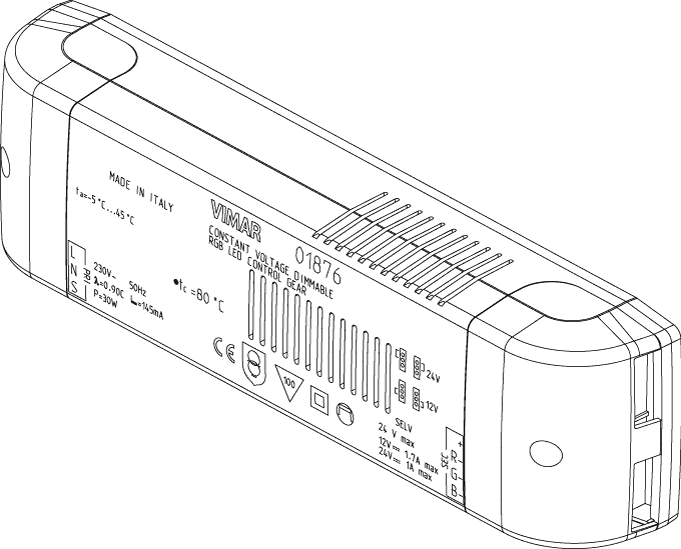

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Light control

Class
LED driver

Suitable for outdoor use
No

Housing
Plastic housing

Suitable for constant current
No

Suitable for constant voltage
Yes

Output voltage
12 - 24 V

Output current
0 - 1.700 mA

Suitable for DC-voltage (primary side)
No

Output power
24,00 - 24,01 W

Degree of protection (IP)
IP20

Protection class
II

Length
36,60 mm

Width
218,00 mm

Height
60,50 mm

Diameter
0 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352468757

1 NR

26.9x11.6x4.9 [cm]

321.1 [g]
