MASTER dimmer 230V 500VA - 01867

Pdf
Vimar - 01867 - MASTER dimmer 230V 500VA
Vimar - 01867 - MASTER dimmer 230V 500VA

01867
Smart systems&products / By-me Plus / Shared components / DIN devices

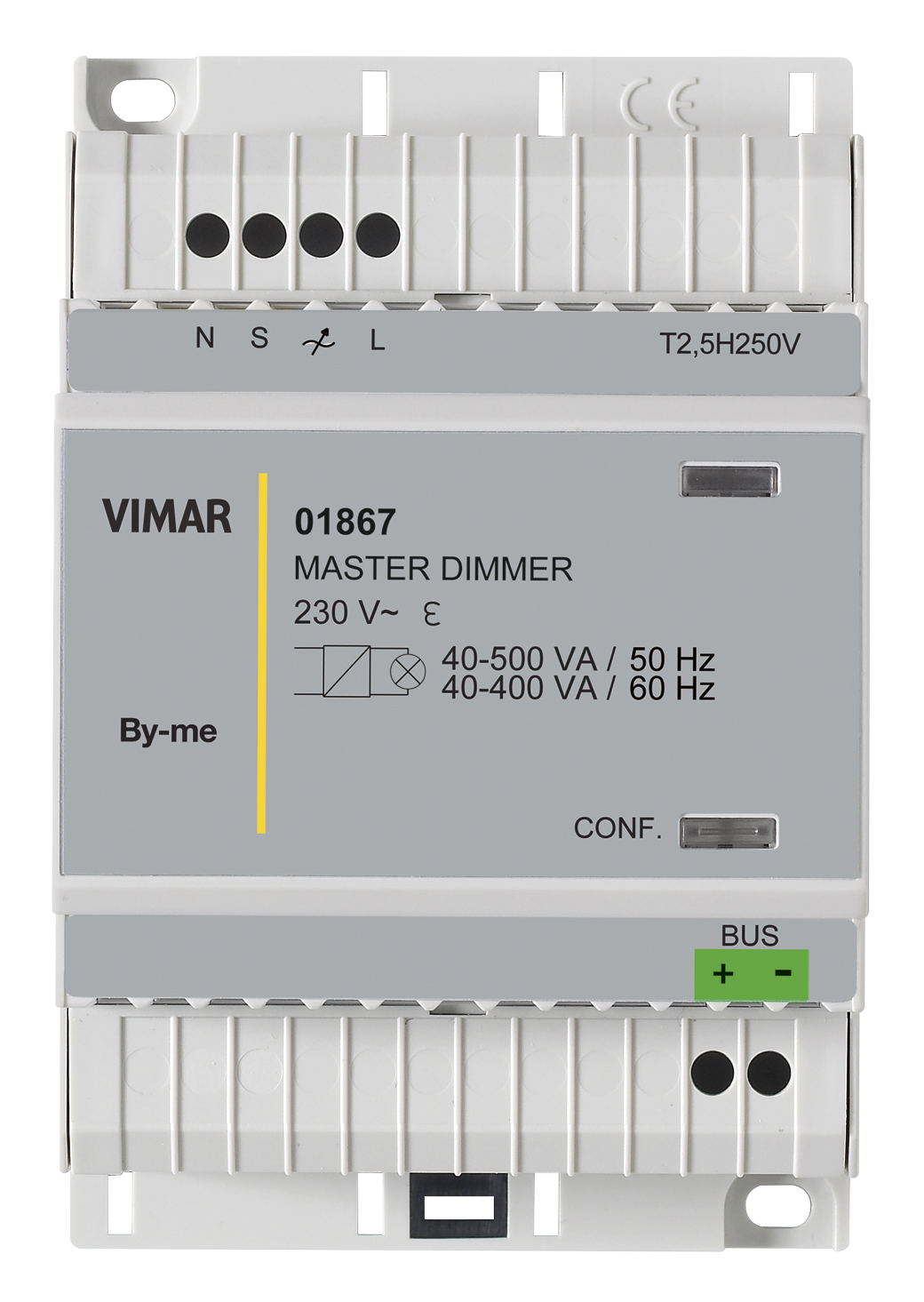

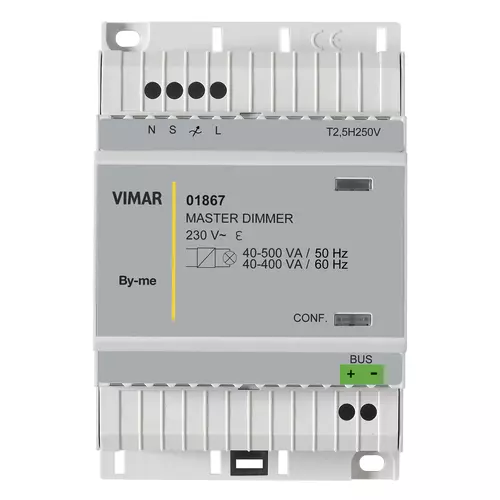

MASTER dimmer 230V 500VA
Dimmer, 230 V~ for: 40-500 VA to 50 Hz, 40-400 VA to 60 Hz electronic transformers, with beutral terminals, MASTER function for 01868, MOSFET technology, protection fuse, for DIN (60715 TH35)rail installation, occupies 4 17,5 mm modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

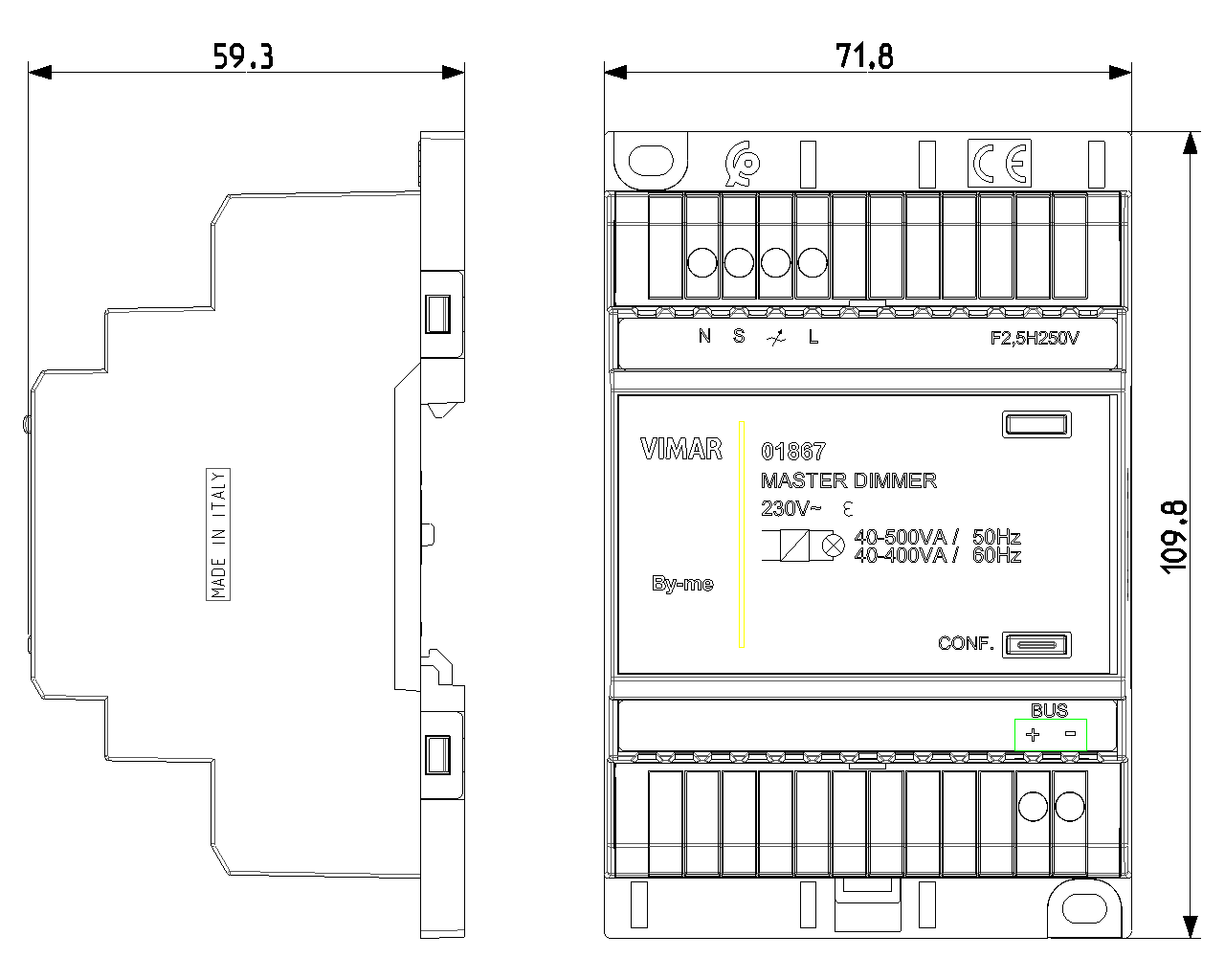

view encumbered art. 01867
PNG DXF
Class group
Installation bus systems
Class
Dimming actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Model
Dimming actuator
Mounting method
Other
Width in number of modular spacings
4
With bus connection
Yes
Bus module detachable
No
Local operation/hand operation
No
With LED indication
Yes
Number of outputs
1
Power boost suitable
No
Type of load
Universal
Voltage
230,00 - 230,01 V
Parallel-service possible
No
Frequency
50,00 - 60,00 HZ
Degree of protection (IP)
IP20

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352387485
1 NR
11.7x10.8x7.1 [cm]
210.7 [g]
