By-alarm Plus cord-operated contact - 01825

Pdf

01825
Safety / By-alarm Plus / Surface mounting components / Non-modular components

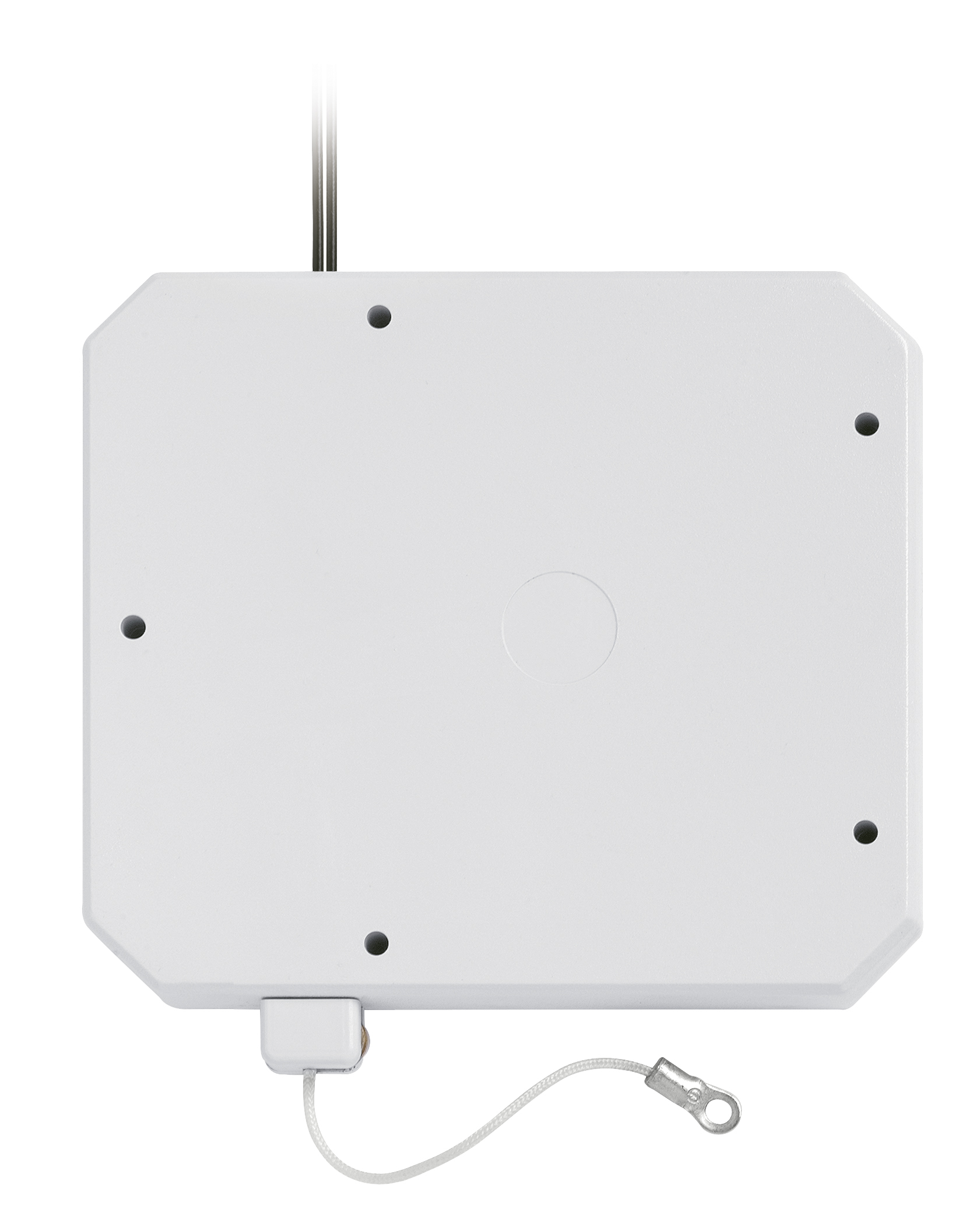

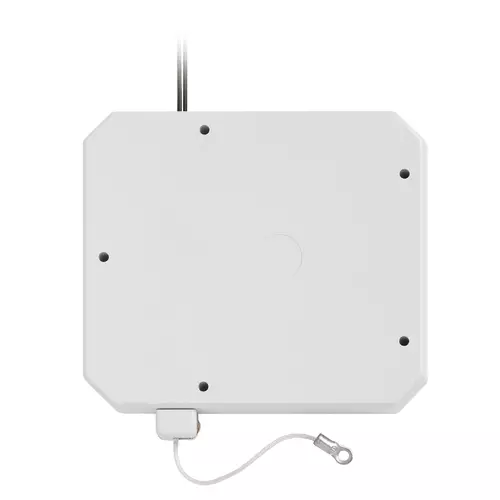

By-alarm Plus cord-operated contact
By-alarm Plus electromechanical cord-operated contact to protect roller shutters and shutters

Product Status
3 - Active

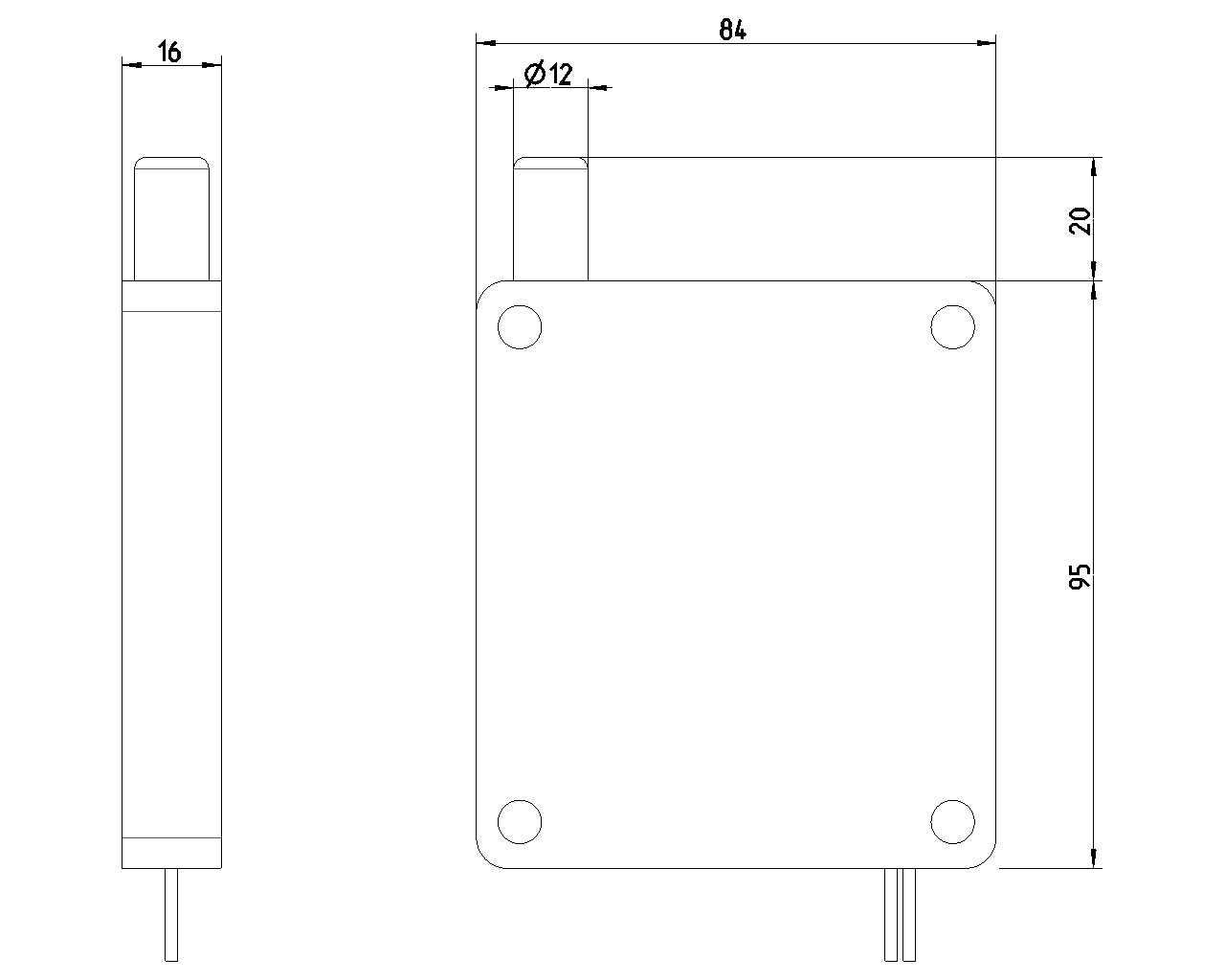

Drawings

Class group
Alarm installations, emergency call and signalling
Class
Opening detector for danger detection system
Colour
Other

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352135260
1 NR
11.2x9.6x9.8 [cm]
158.32 [g]
Barcode Qty 18 NR
8007352648142
18 NR
37.5x30x21 [cm]
3,284 [g]
Question: I connected a roller shutter sensor art.01825 to the input expansion module art. 01709 but it does not read the shutter movement.
Answer: In the control panel parameters (on By-alarm Manager) Inputs > Special functions > Switch alarm–impulses per alarm, you can vary the number and length of the impulses (default 1 impulse, 160ms). Generally, for a roller shutter contact the settings are: from 3 to 6 impulses (check the shutter movement), 2ms.
Question: Can I connect roller shutter or inertia sensors (art.01825, art.01826) directly on the control panel 01700 or 01703 inputs?
Answer: No. These sensors are managed exclusively by the expansion module art.01709 inputs.
Question: What are the dimensions of the sensor?
Answer: The product dimensions are as follows: 102mm*98mm*16mm.
