By-alarm Plus DT curtain-ef.surf.detect. - 01722

Pdf

01722
Safety / By-alarm Plus / Surface mounting components / Non-modular components

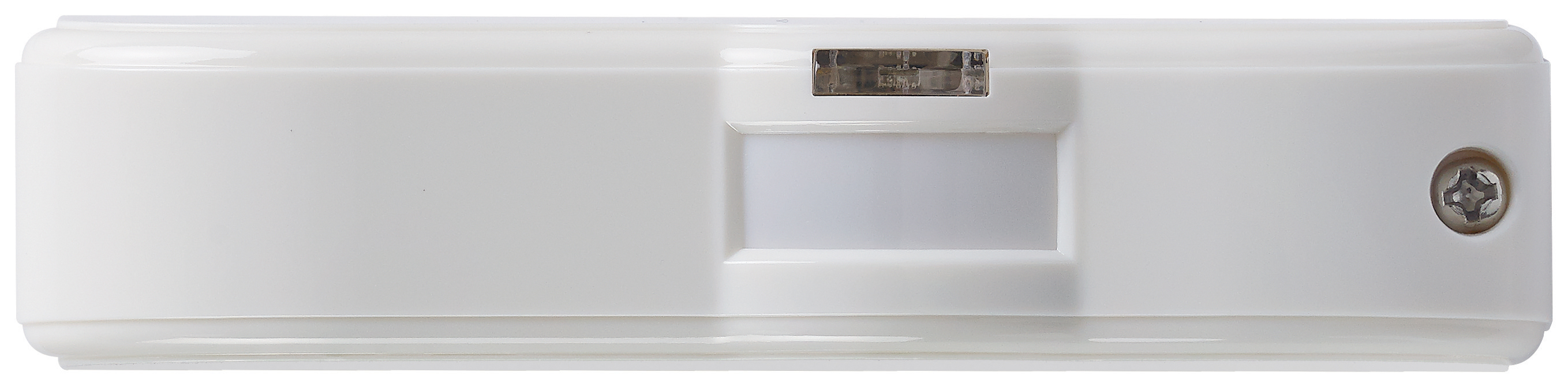

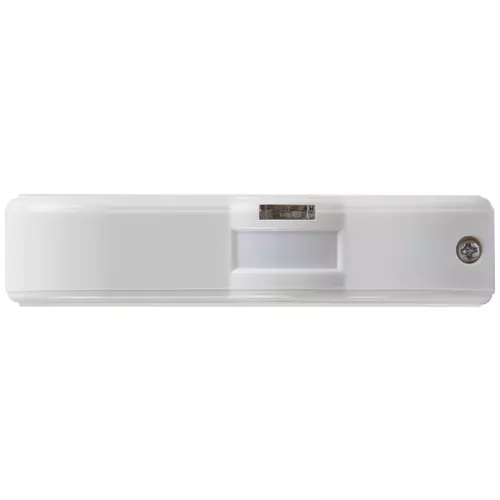

By-alarm Plus DT curtain-ef.surf.detect.
By-alarm Plus passive infrared and microwave dual technology curtain-effect detector to protect entrances and openings such as doors, windows, covered terraces, corridors and French doors, surface mounting for indoor use

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Movement detector for danger detection system
Type of messaging
Infrared/microwave (Dual)
Mounting method
Surface mounting
Detection range
140
Operating current
40,00 mA
Operating voltage
12,00 - 12,01 V

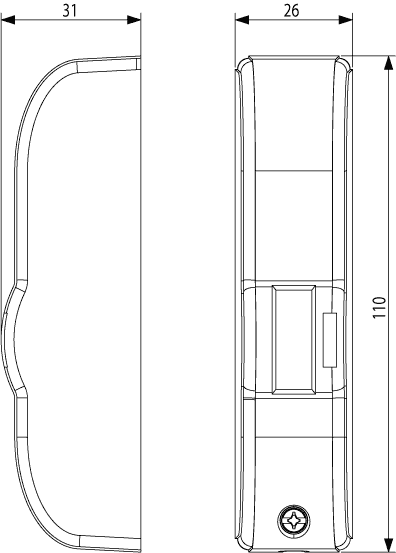

Height
110,00 mm
Width
26,00 mm
Depth
31,00 mm
Characteristic
Curtain
Cover monitoring
Yes
Radio system
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352548114
1 NR
14.2x6.7x5.9 [cm]
94.1 [g]
Barcode Qty 100 NR
8007352575349
100 NR
53x18x20 [cm]
9,400 [g]
Question: Can the product be ceiling mounted and not surface mounted?
Answer: The product should be installed horizontally in the centre, in the top part of the area (i.e. of the entrance) to be protected, with the lens pointing down, so the possibility of installing the product on the ceiling should not be taken into consideration.
