Ceiling adaptor for 01529.1 detector - 01529.1.S

Pdf
Vimar - 01529.1.S - Ceiling adaptor for 01529.1 detector
Vimar - 01529.1.S - Ceiling adaptor for 01529.1 detector

01529.1.S
Smart systems&products / KNX / Surface mounting components / Non-modular components

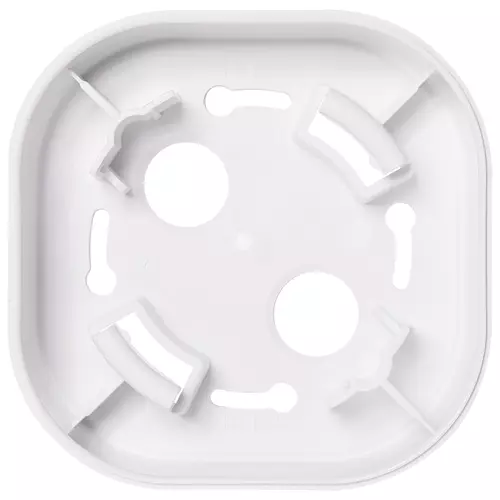

Ceiling adaptor for 01529.1 detector
Adaptor pour ceiling installation of 01529.1 360° presence detector

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

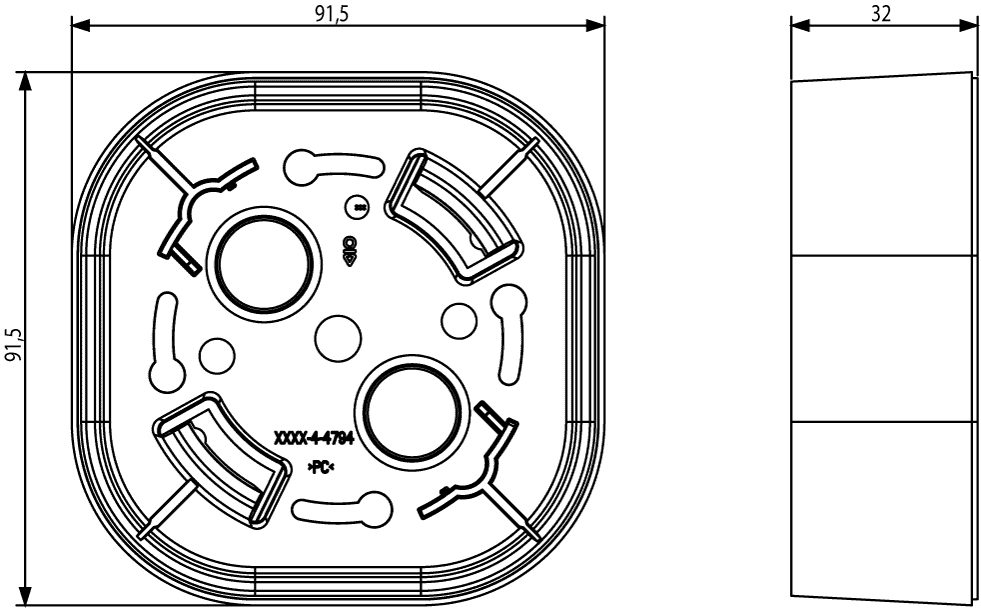

view encumbered art. 01529.1.S
PNG DXF

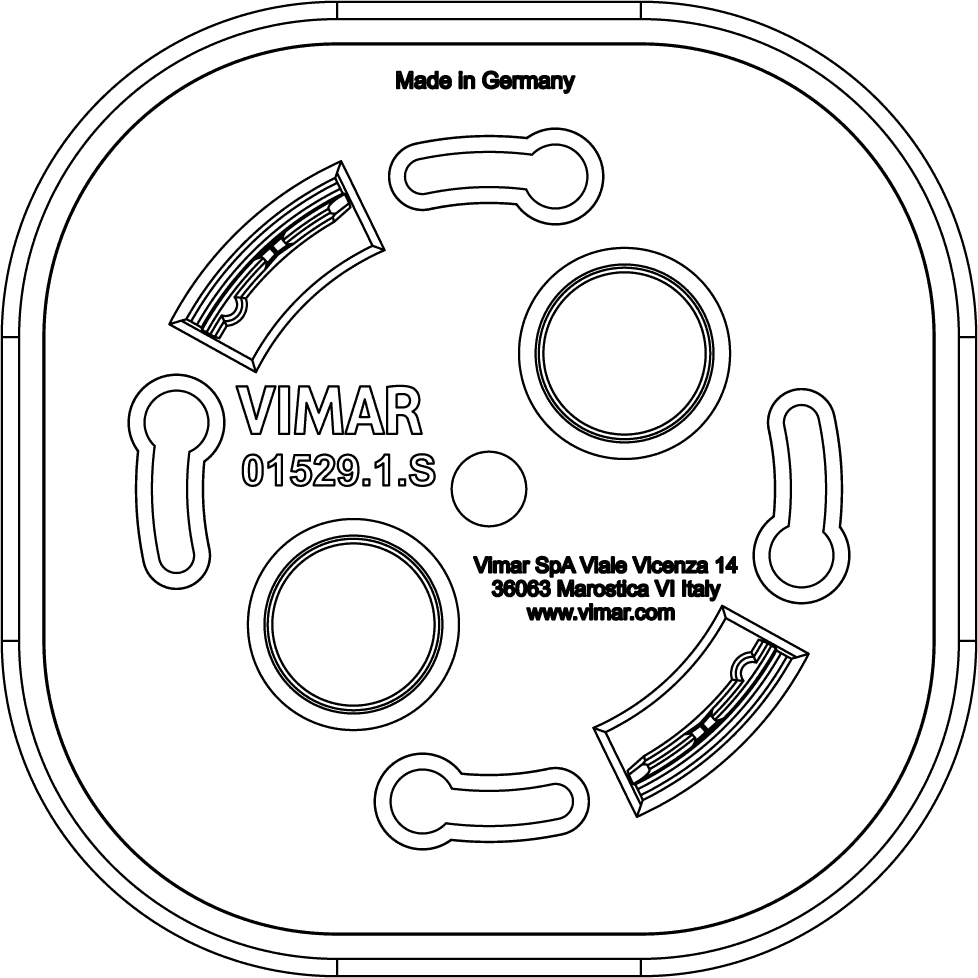

rear view art. 01529.1.S
PNG DXF

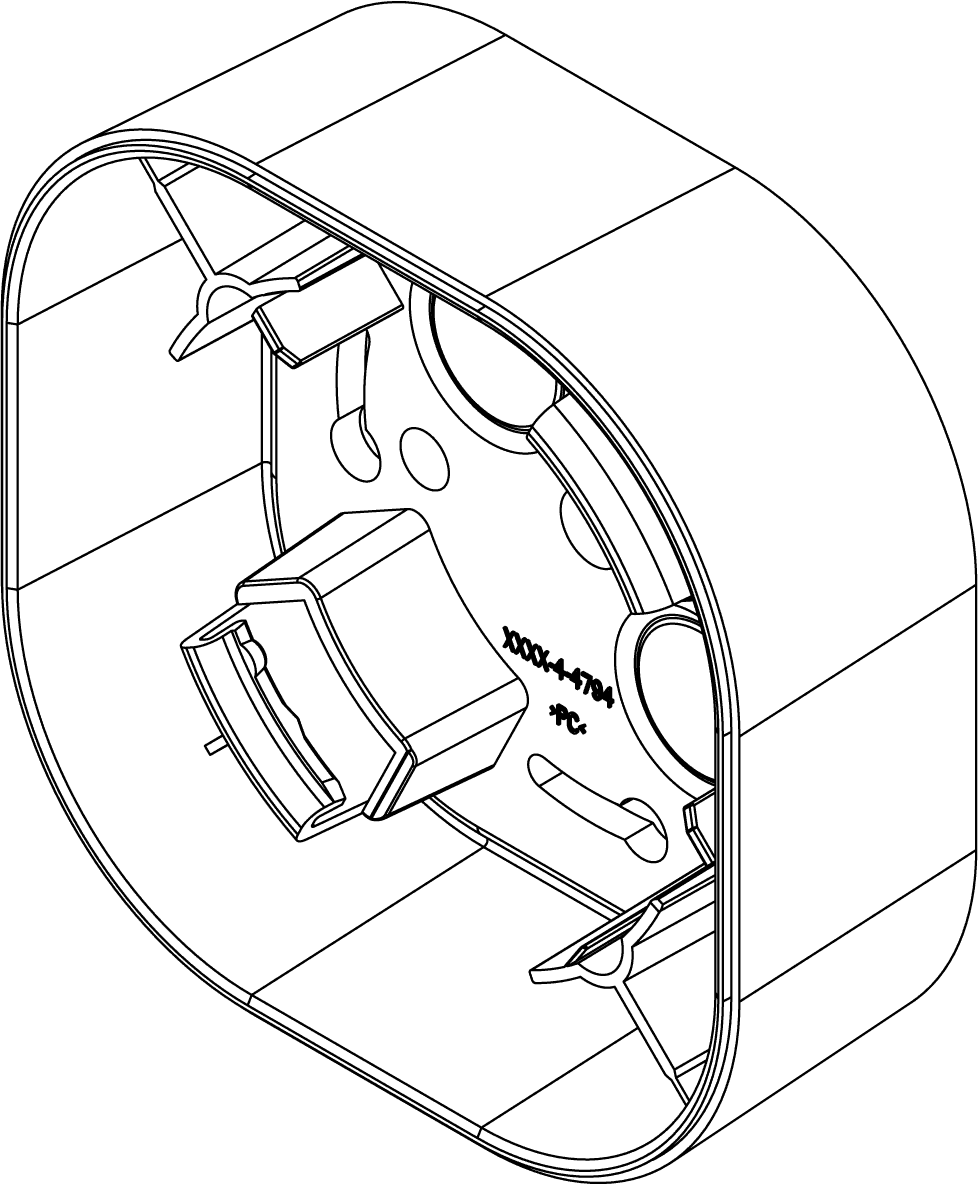

3D view art. 01529.1.S
PNG DXF
Class group
Installation bus systems
Class
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
Model
Other
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With bus connection
No
Operation mode switch
No
Staircase light controller
No
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
Optimum mounting height
2,50 m
Max. reach sideways
0,00 m
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352556492
1 NR
12x9.4x6 [cm]
96.1 [g]
Barcode Qty 11 NR
8007352762220
11 NR
40x37x8 [cm]
1,255.1 [g]
