KNX presence detector - 01527

Pdf
Vimar - 01527 - KNX presence detector
Foto gallery #1
Foto gallery #2
Vimar - 01527 - KNX presence detector

01527
Smart systems&products / KNX / Surface mounting components / Non-modular components

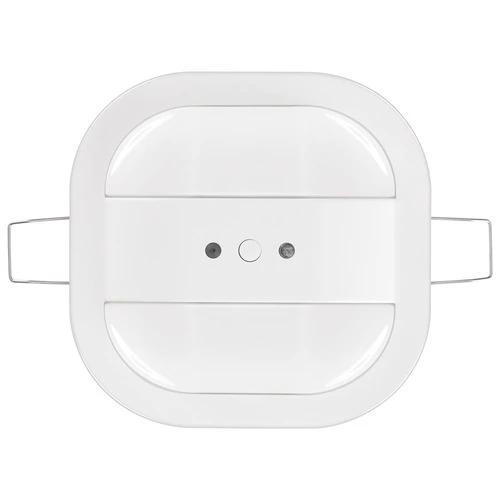

KNX presence detector
360° IR presence detector for switching ON/OFF and control of lighting, heating, air conditioning, ventilation according to brightness and/or movement, 1 – 1000 Lux adjustable brightness range, KNX standard, ceiling installation, dimensions 80x80x45 mm

Product Status
3 - Active

Class group
Installation bus systems
Class
Movement sensor for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
Model
Other
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With bus connection
Yes
Operation mode switch
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
Yes
Optimum mounting height
2,50 m
Max. reach sideways
10,50 m
Detection angle vertical
0 - 10

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352556508
1 NR
12x9.4x6 [cm]
126.8 [g]
Barcode Qty 11 NR
8007352762190
11 NR
40x37x8 [cm]
1,592.8 [g]
