Dimmer 230V 2 outputs 300W/VA KNX - 01526

01526
Smart systems&products / KNX / Shared components / DIN devices

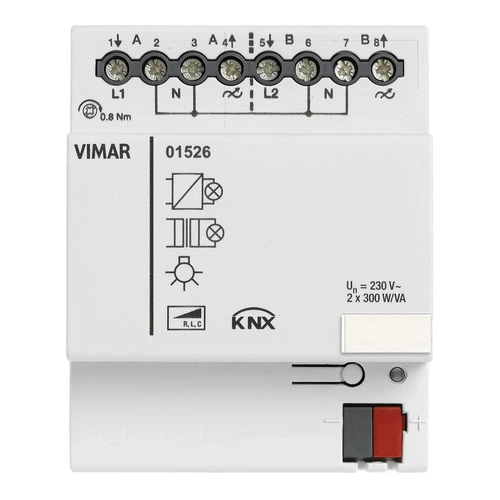

Dimmer 230V 2 outputs 300W/VA KNX
Dimmer 230 V~ 50-60 Hz for 2x300 W incandescent lamps, 2x300 VA ferromagnetic transformers, 2x300 VA electronic transformers, KNX standard, installation on DIN rail (60715 TH35), occupies 4 17,5 mm modules

Product Status
2 - Will be discontinued

Alternative products

01538 - Dimmer KNX 2 OUT200W LED 120-240V

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (630 kb)
• Manuale installatore (603 kb)

Product Software

• DB_ComponentiAutomazione_KNX_01.16_20210920.zip
• DB_ComponentiAutomazione_KNX_01.19_20230331.zip
• DB_ComponentiAutomazione_KNX_01.20_20240917.zip

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Light control unit for bus system

Bus system KNX
Yes

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Other bus systems
None

Radio frequent bidirectional
No

Mounting method
Other

Width in number of modular spacings
4

With bus connection
Yes

Local operation/hand operation
No

With LED indication
No

Max. switching current (resistive load)
2 A

Max. switching power
300 W

Number of outputs
2

Degree of protection (IP)
IP20

00. CE Marking - EU

27. KNX

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352385788

1 NR

9.3x7.7x6.9 [cm]

243.2 [g]
