2 inputs/outputs interface LED KNX - 01514

01514
Smart systems&products / KNX / Shared components / Non-modular components

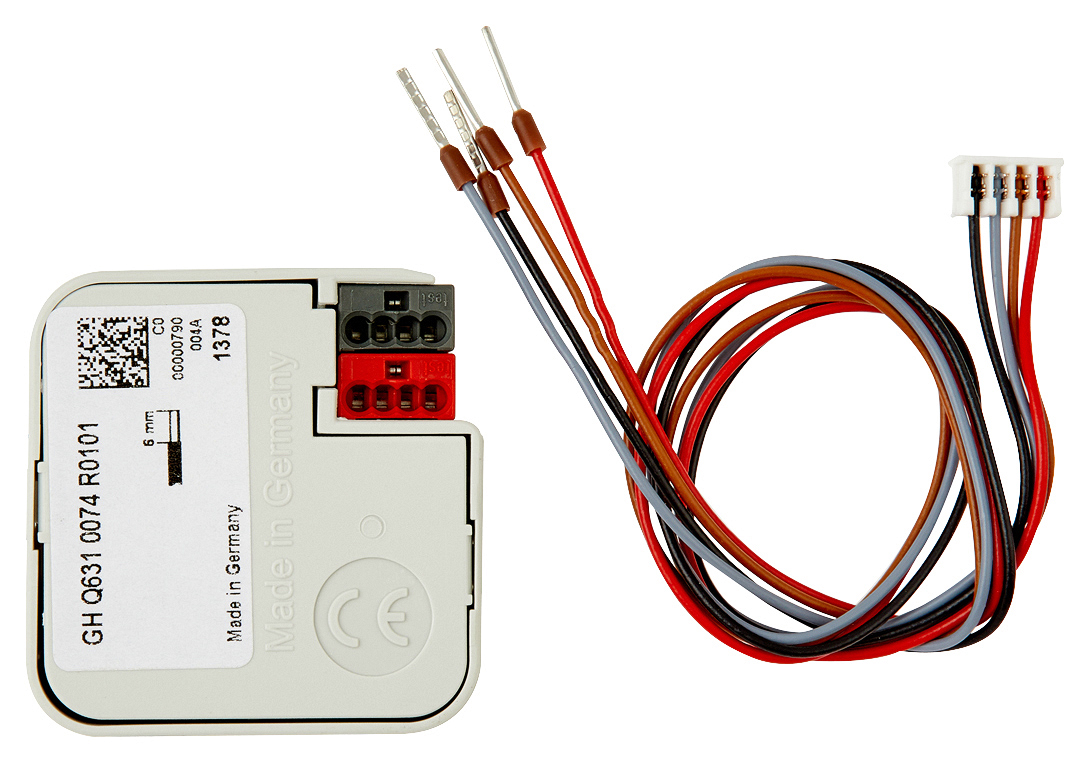

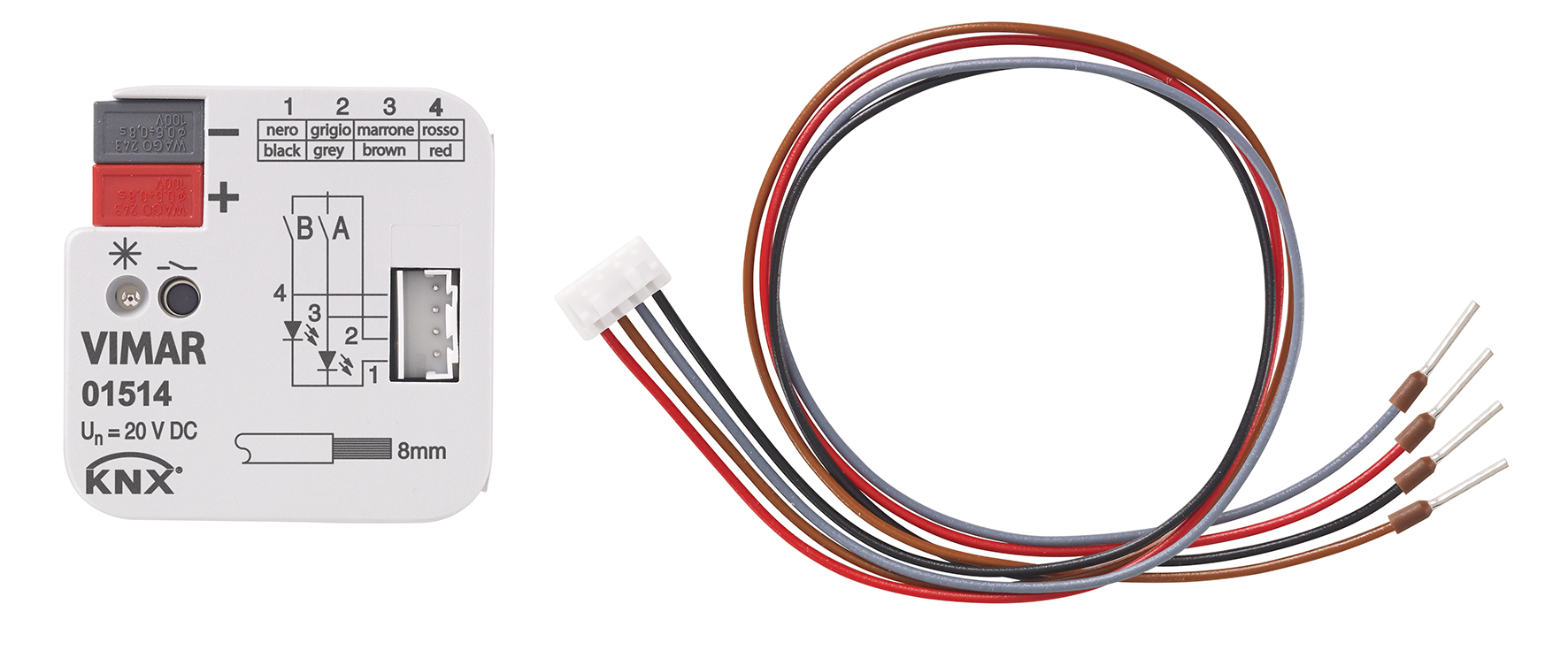

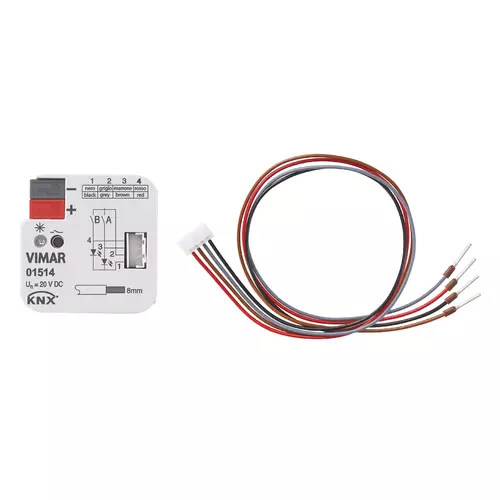

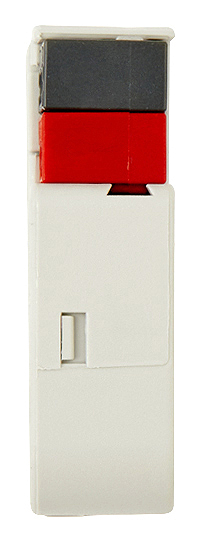

2 inputs/outputs interface LED KNX
2-channel interface programmable as clean-contact inputs or LED outputs, KNX standard

Product Status
2 - Will be discontinued

Alternative products

01515.1 - 4 inputs/outputs interface for LED KNX

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (198 kb)
• Manuale installatore (3638 kb)
• Installer manual (3394 kb)

Product Software

• DB_ComponentiAutomazione_KNX_01.16_20210920.zip
• DB_ComponentiAutomazione_KNX_01.19_20230331.zip
• DB_ComponentiAutomazione_KNX_01.20_20240917.zip
• DB_ComponentiAutomazione_KNX_01.21_20250224.zip

---

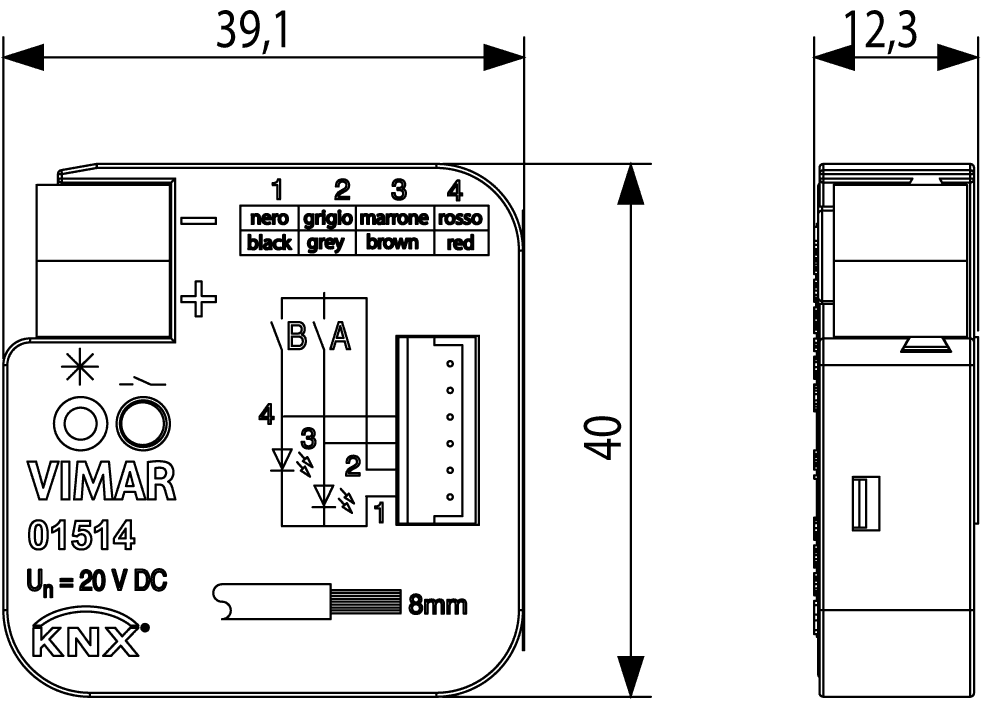

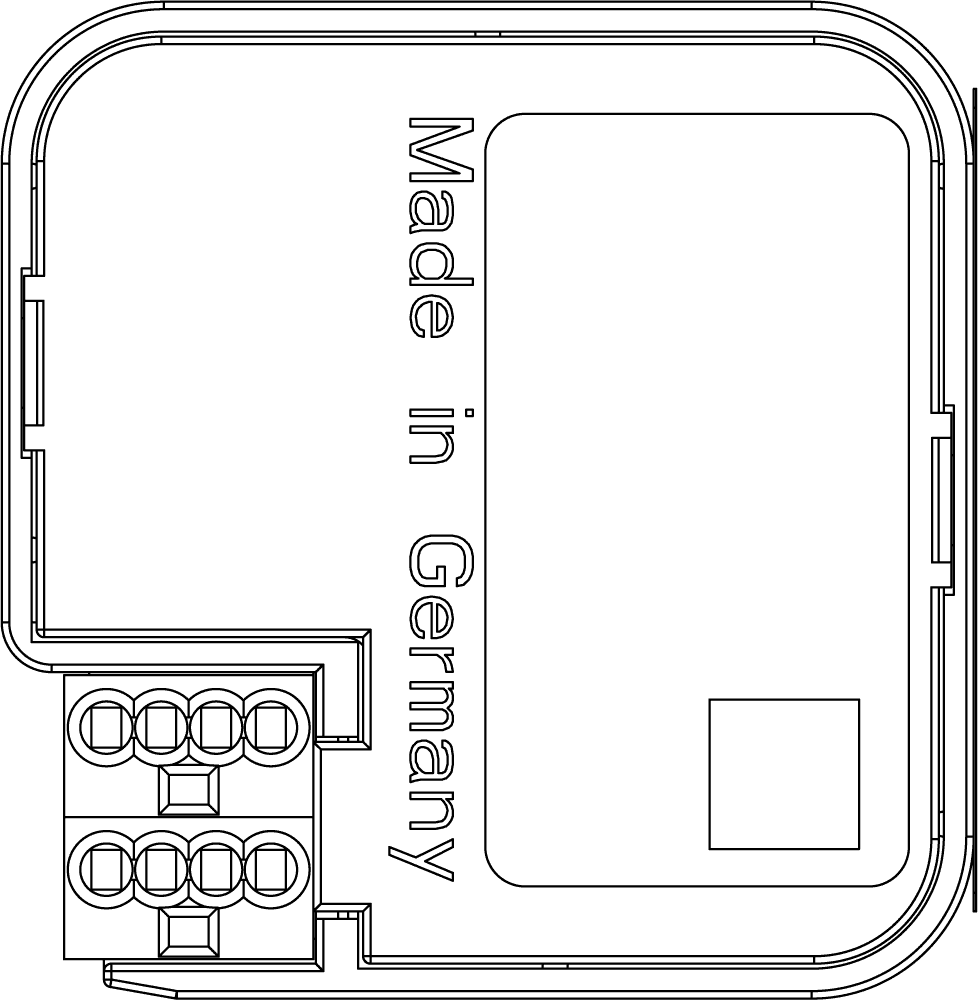

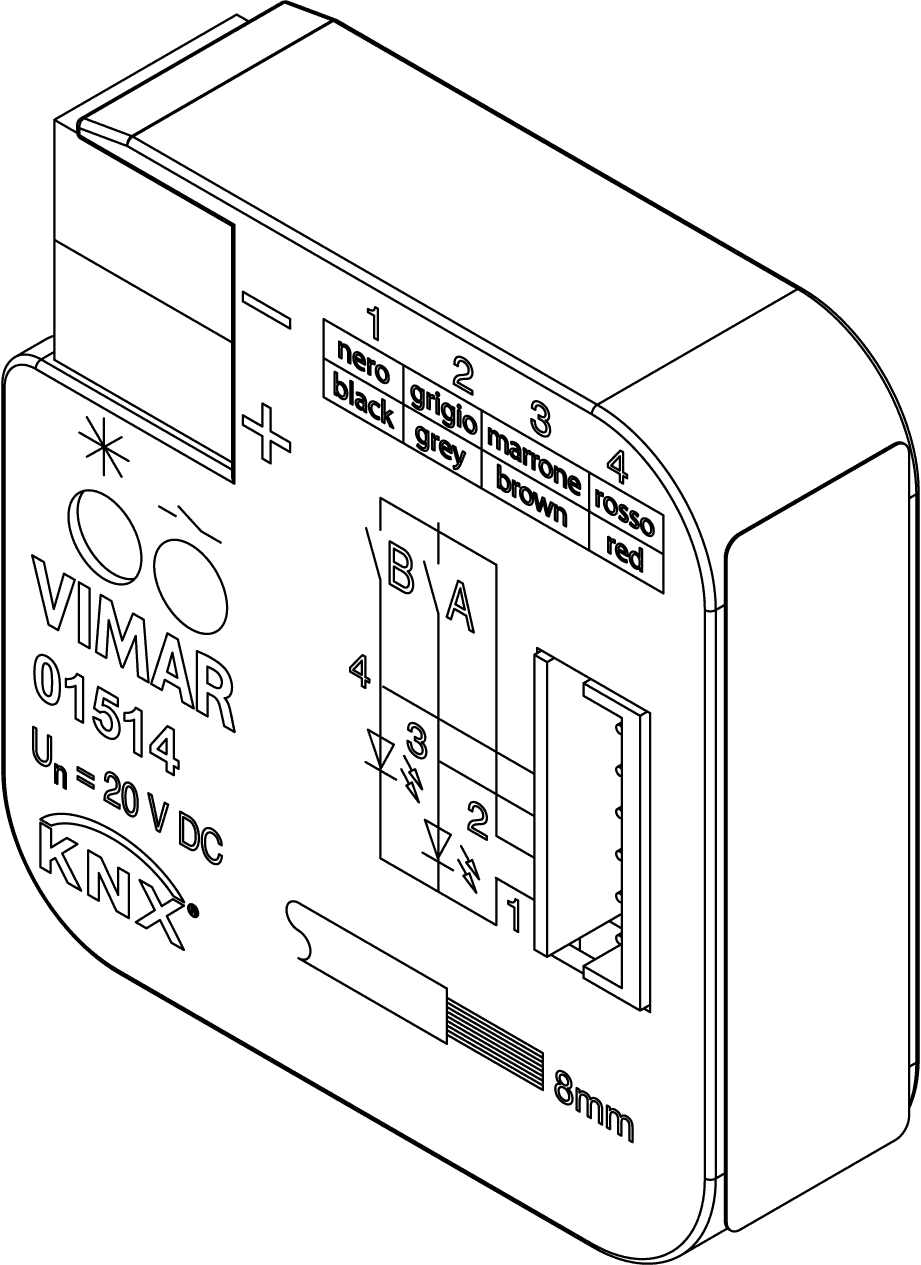

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
I/O device for bus system

Bus system KNX
Yes

Bus system KNX-RF (Radio Frequency)
No

Bus system radio frequency
No

Bus system LON
No

Bus system Powernet
No

With bus connection
Yes

LED controlling
Yes

With LED indication
Yes

Local operation/hand operation
Yes

Suitable for C-load
No

With switch function
Yes

Rated current
2,00 A

External signal voltage necessary
No

Different phases connectable
No

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352561427

1 NR

9.2x6.7x2.4 [cm]

37 [g]

8007352762251

50 NR

40x37x8 [cm]

2,048 [g]
