6-button control+actuator 3M - 01486

Pdf
Vimar - 01486 - 6-button control+actuator 3M
Foto gallery #1
Foto gallery #2
Vimar - 01486 - 6-button control+actuator 3M

01486
Smart systems&products / By-me Plus / Shared components / Devices

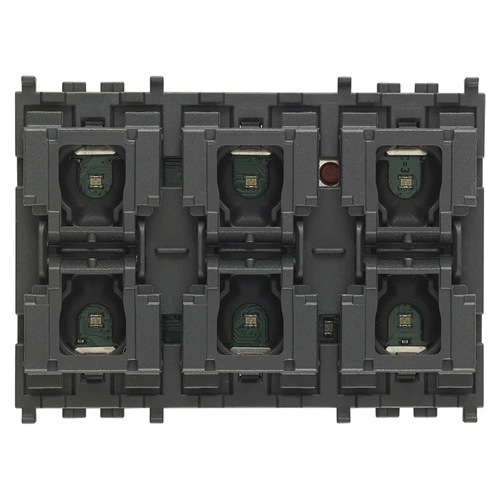

6-button control+actuator 3M
6-button home automation device and NO 16 A 120-240 V~ 50/60 Hz relay output actuator , RGB LED location in darkness with brightness control, to be completed with interchangeable 1- or 2-module Eikon, Arké or Plana half-buttons - 3 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
No
With integrated DCF77 receiver
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
With bus connection
Yes

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352593480
1 NR
5.7x5.3x7.7 [cm]
79.3 [g]
Barcode Qty 70 NR
8007352633117
70 NR
39.5x30x17 [cm]
6,389.6 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
