4-button+1 LINEOUT switch 2M - 01483

Pdf
Vimar - 01483 - 4-button+1 LINEOUT switch 2M
Vimar - 01483 - 4-button+1 LINEOUT switch 2M

01483
Smart systems&products / By-me Plus / Shared components / Devices

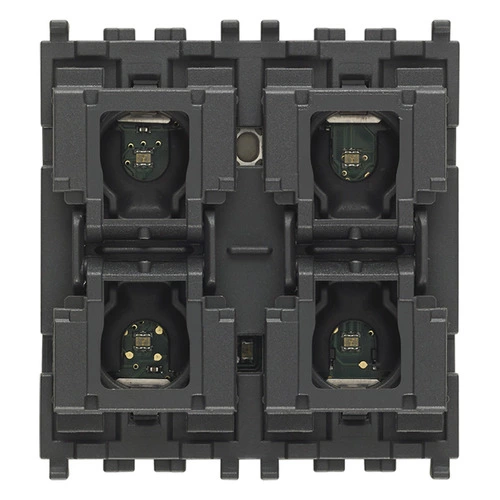

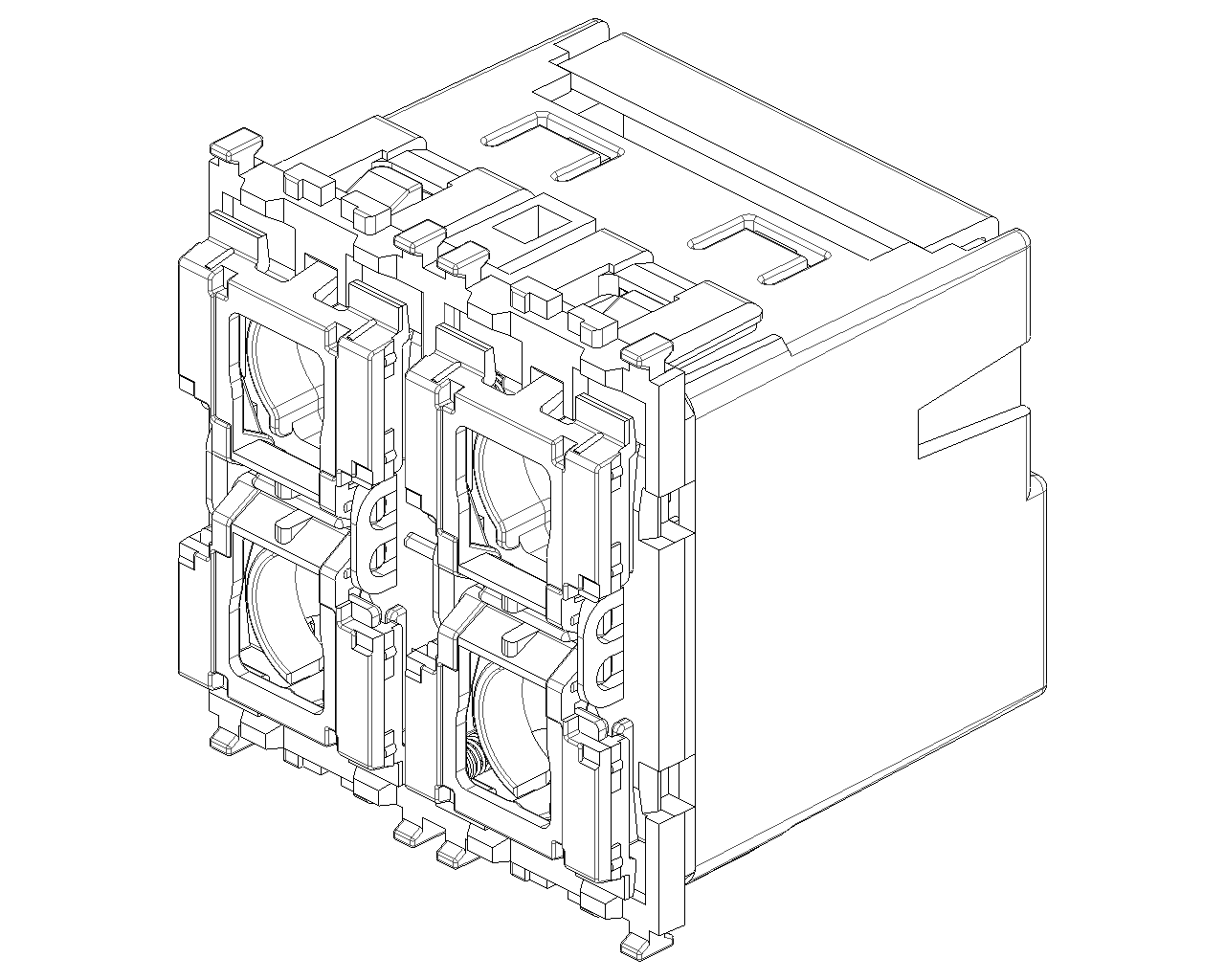

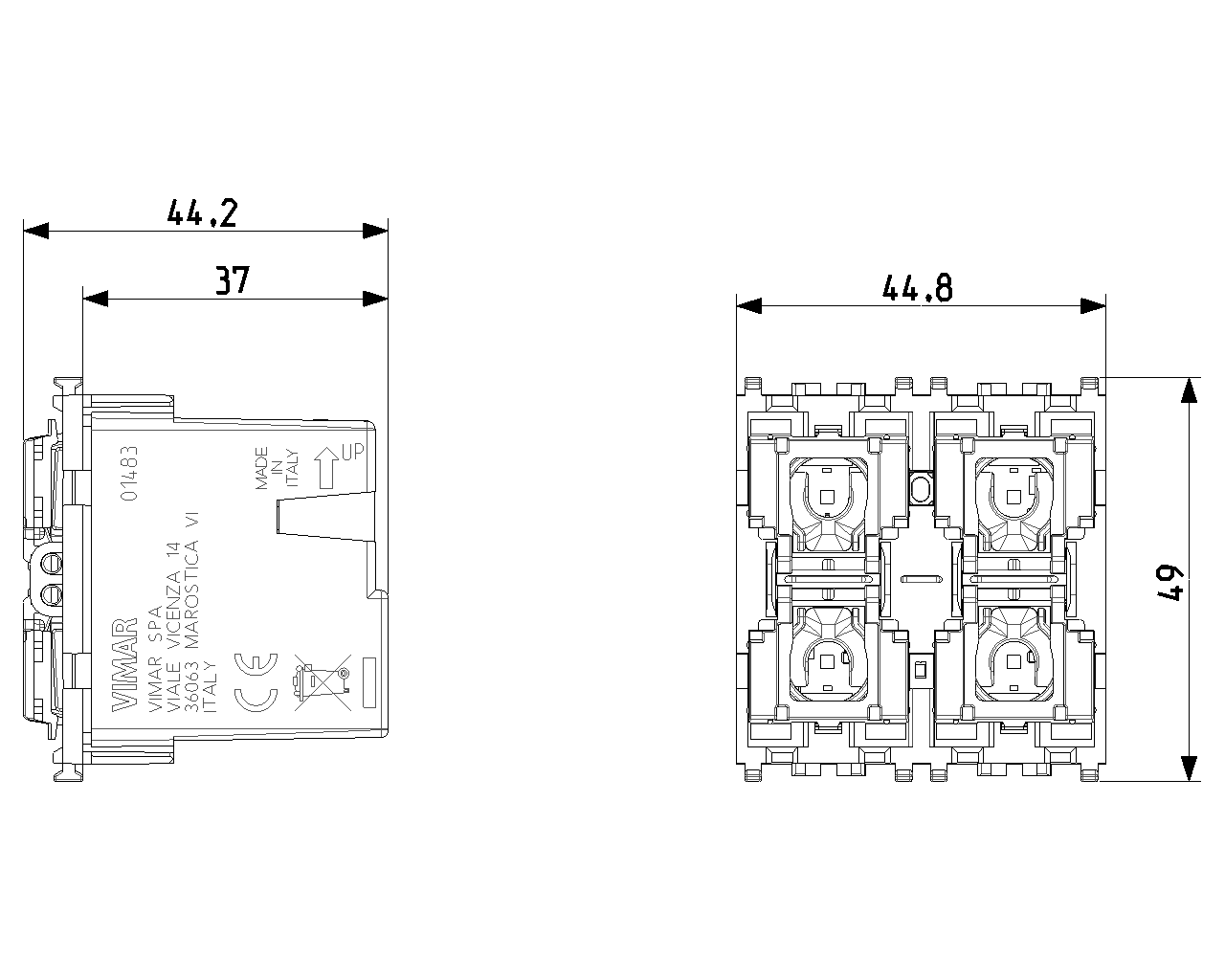

4-button+1 LINEOUT switch 2M
4-button home automation device, 1 LINE OUT output, RGB LED location in darkness with brightness control,to be completed with interchangeable 1- or 2-module Eikon, Arké or Plana half-buttons - 2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
No
With integrated DCF77 receiver
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
With bus connection
Yes

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352593220
1 NR
6x5.4x5.3 [cm]
68.6 [g]
Barcode Qty 10 NR
8007352593237
10 NR
28.1x13.1x6 [cm]
769 [g]
