Home autom.module 2IN 3OUT (1blind+2LED) - 01476

01476
Smart systems&products / By-me Plus / Shared components / Non-modular components

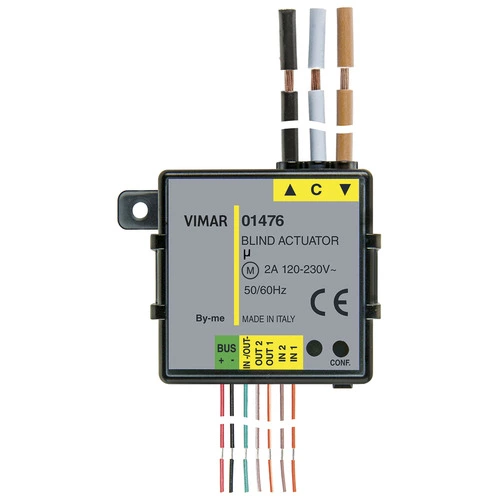

Home autom.module 2IN 3OUT (1blind+2LED)
Module with 2 programmable digital inputs for contacts without potential, 1 cosφ 0.6 2 A 120-230 V~ relay output for 1 rolling shutter laths orientation, 2 LED control outputs, By-me home automation, flush mounting at the back of the device

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (634 kb)
• By-me automation-fw Compatibility (206 kb)
• Installation diagrams (2105 kb)

Video

• Plug&Play 01475-01476-01477

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Basic module for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Other bus systems
Other

Mounting method
DRA (DIN-rail adapter)

Width in number of modular spacings
0

Local operation/hand operation
No

Number of inputs
2

Number of outputs
3

Degree of protection (IP)
IP20

With bus connection
Yes

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

---

Barcode

8007352539457

1 NR

5.7x5.3x7.7 [cm]

57 [g]

8007352733176

70 NR

39.5x30x17 [cm]

4,716.6 [g]
