3-analog inputs domotic interface - 01467

Pdf
Vimar - 01467 - 3-analog inputs domotic interface
Vimar - 01467 - 3-analog inputs domotic interface

01467
Smart systems&products / By-me Plus / Shared components / DIN devices

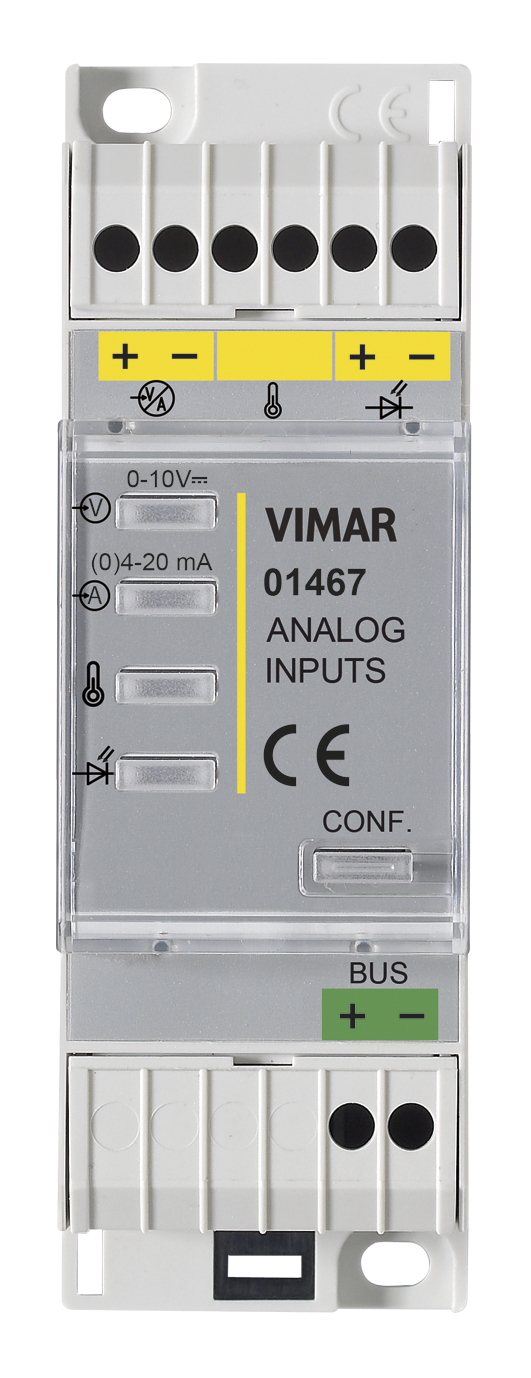

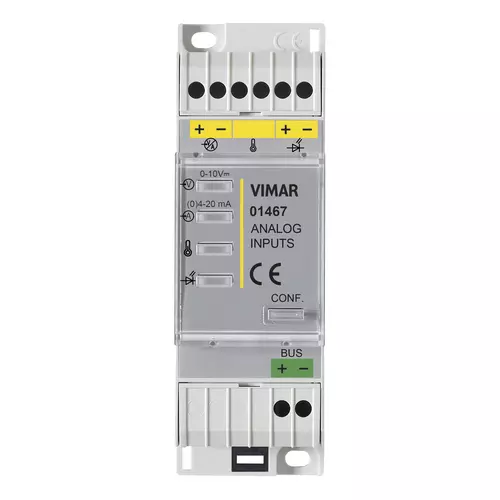

3-analog inputs domotic interface
Device with 3 analogue signal inputs, 1 input 0-10 V or 4-20 mA, 1 input for linear or flush mounting NTC temperature sensor, 1 input for brightness sensor 01530, for By-me home automation, installation on DIN rail (60715 TH35), occupies 2 modules size 17.5 mm

Product Status
3 - Active

Class group
Installation bus systems
Class
Interface for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Model
Other
Mounting method
Other
Width in number of modular spacings
2
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7035
Transparent
No
Max. data transmission rate
9600
With bus connection
Yes
With label area
Yes
With LED indication
Yes
Degree of protection (IP)
IP20

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352512399
1 NR

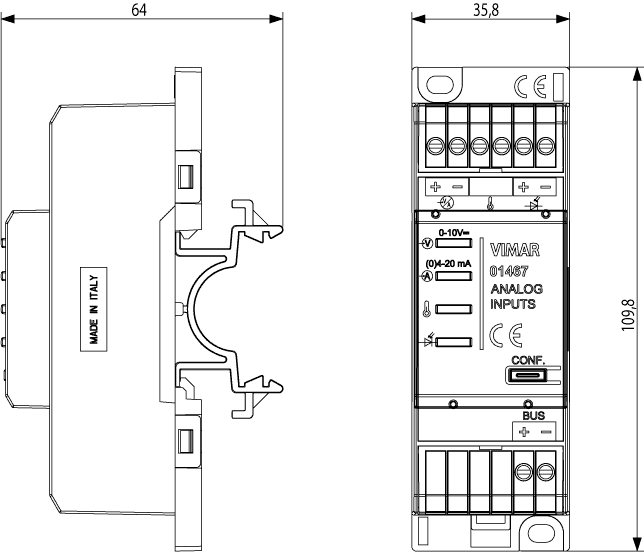

14.2x6.7x5.9 [cm]
114.8 [g]
