4-analog outputs domotic actuator - 01466.1

Pdf
Vimar - 01466.1 - 4-analog outputs domotic actuator
Vimar - 01466.1 - 4-analog outputs domotic actuator

01466.1
Smart systems&products / By-me Plus / Shared components / DIN devices

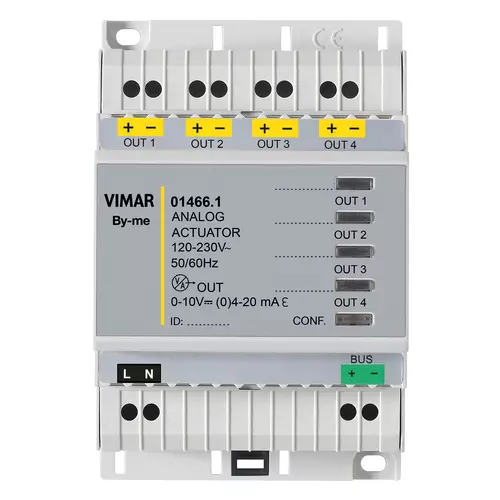

4-analog outputs domotic actuator
Actuator with 4 proportional analogue outputs (0)4-20 mA or 0-10 V with re-scalable maximum output voltage or current, power supply 120-230 V~ 50/60 Hz, By-me home automation, installation on DIN rails (60715 TH35), occupies 4 modules size 17.5 mm. Combined with By-me temperature sensors and thermostats, it allows you to make a modulating room thermostat in class V (3% contribution). Combined with relay actuator, it allows the management of lamps controlled by driver 0/1-10 V

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

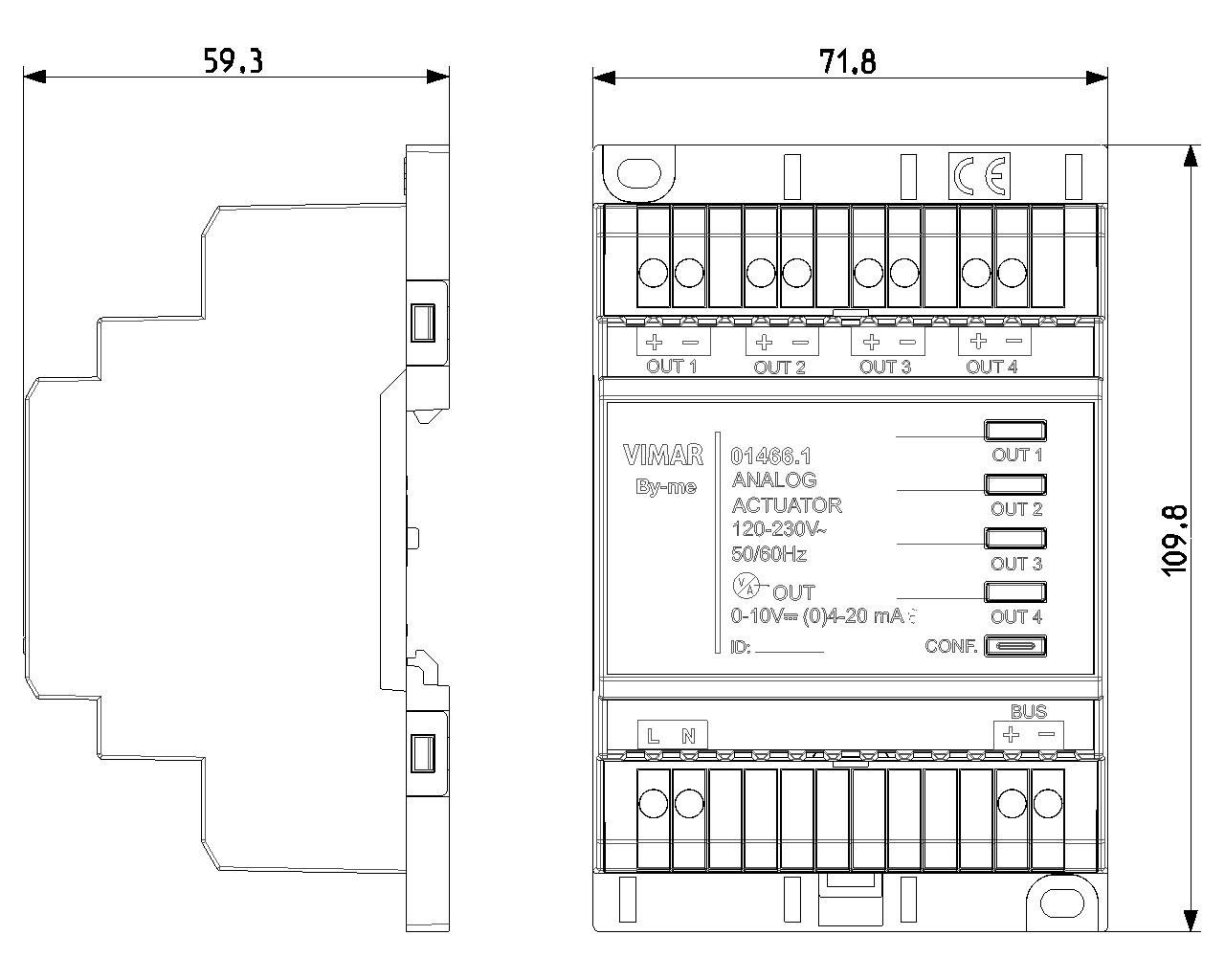

view encumbered art. 01466.1
PNG DXF
rear view art. 01466.1
PNG DXF
3D view art. 01466.1
PNG DXF
Class group
Installation bus systems
Class
Analogue actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
Other
Width in number of modular spacings
4
Model
Base module
With LED indication
Yes
With bus connection
Yes
Number of outputs
4
Output voltage
0 - 10 V
Degree of protection (IP)
IP20

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352623774
1 NR
11.7x10.8x7.1 [cm]
204 [g]
