By-me/DALI-2 gateway 64-channel/16groups - 01419.1

Pdf
Vimar - 01419.1 - By-me/DALI-2 gateway 64-channel/16groups
Vimar - 01419.1 - By-me/DALI-2 gateway 64-channel/16groups

01419.1
Smart systems&products / By-me Plus / Shared components / DIN devices

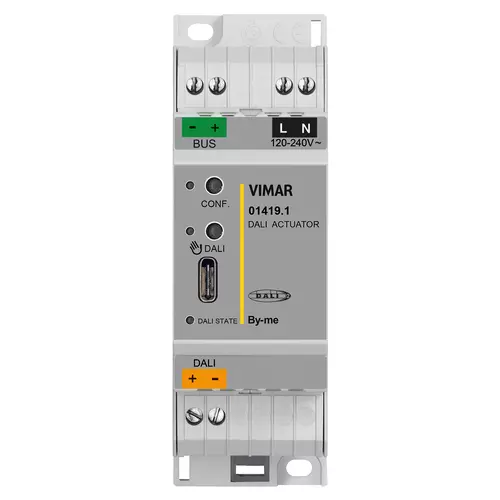

By-me/DALI-2 gateway 64-channel/16groups
Actuator for DALI/DALI-2 lamps with integrated power supply unit, MASTER controller function, max. 64 lamps configurable in 16 By-me Functional Blocks via View PRO App, DALI Device Type 8 for tunable white and RGB(W) management, By-me home automation system, push button for local control, 120-240 V~ 50/60 Hz power supply, installation on DIN rail (60715 TH35), occupies 2 modules size 17.5 mm

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

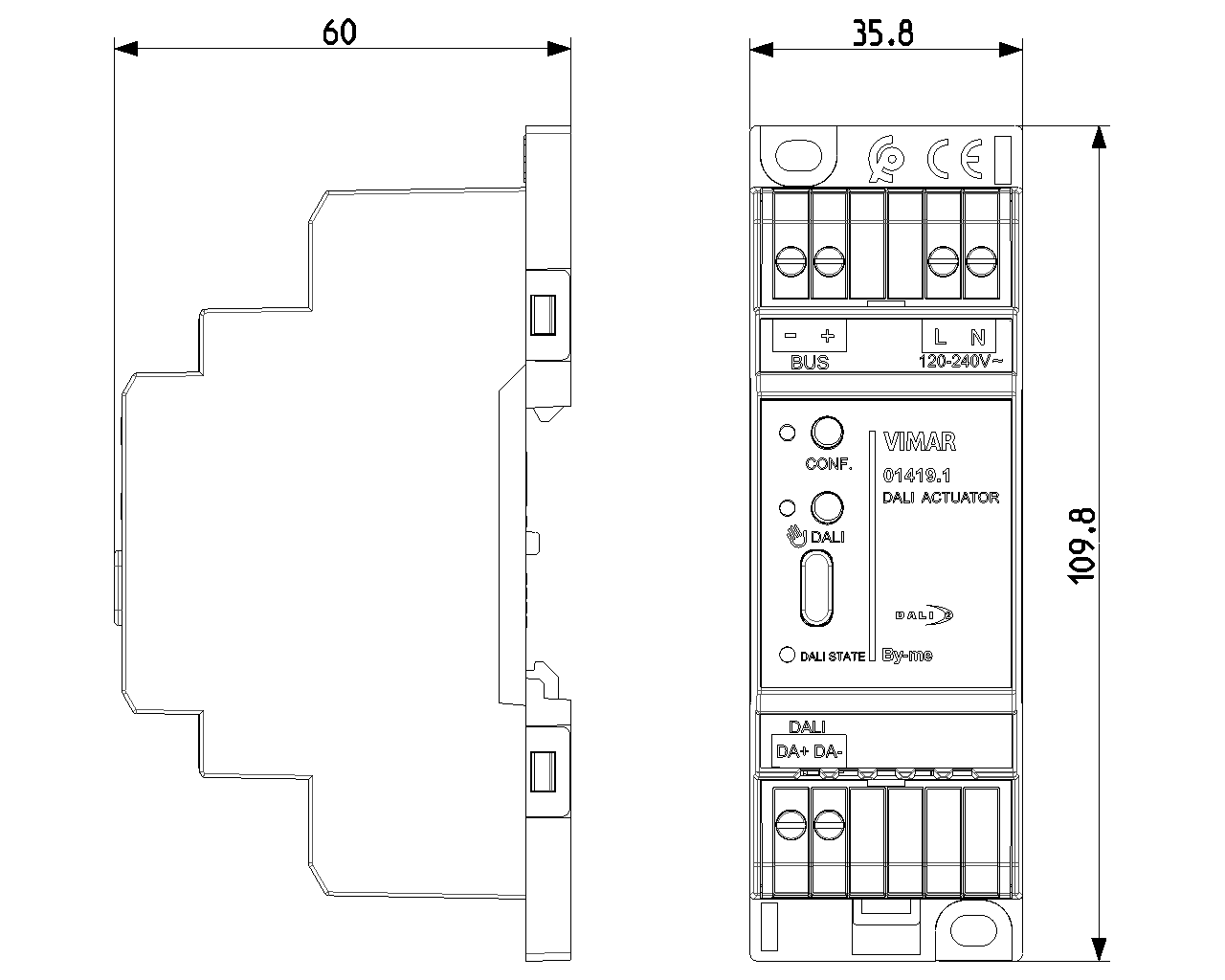

view encumbered art. 01419.1
PNG DXF

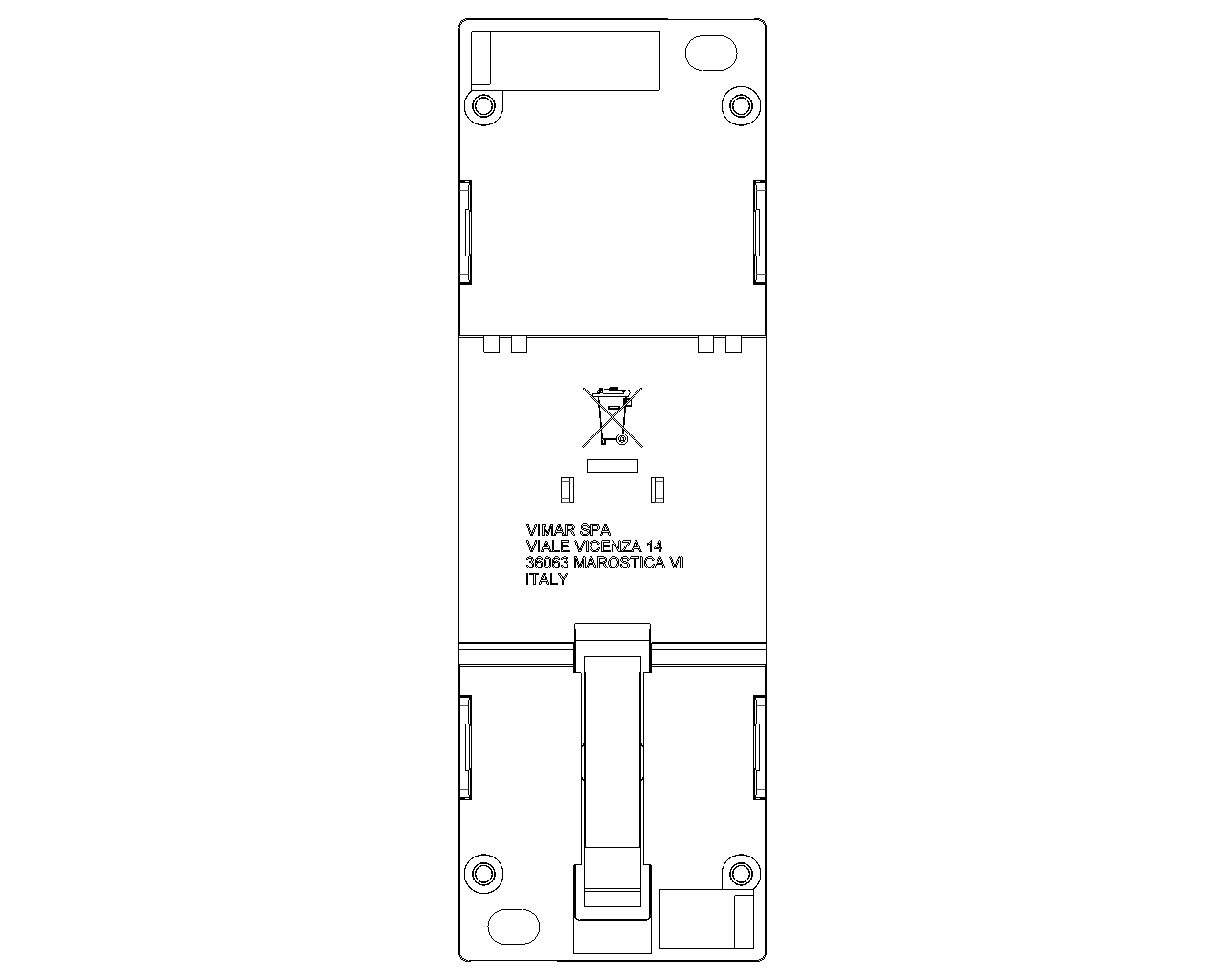

rear view art. 01419.1
PNG DXF

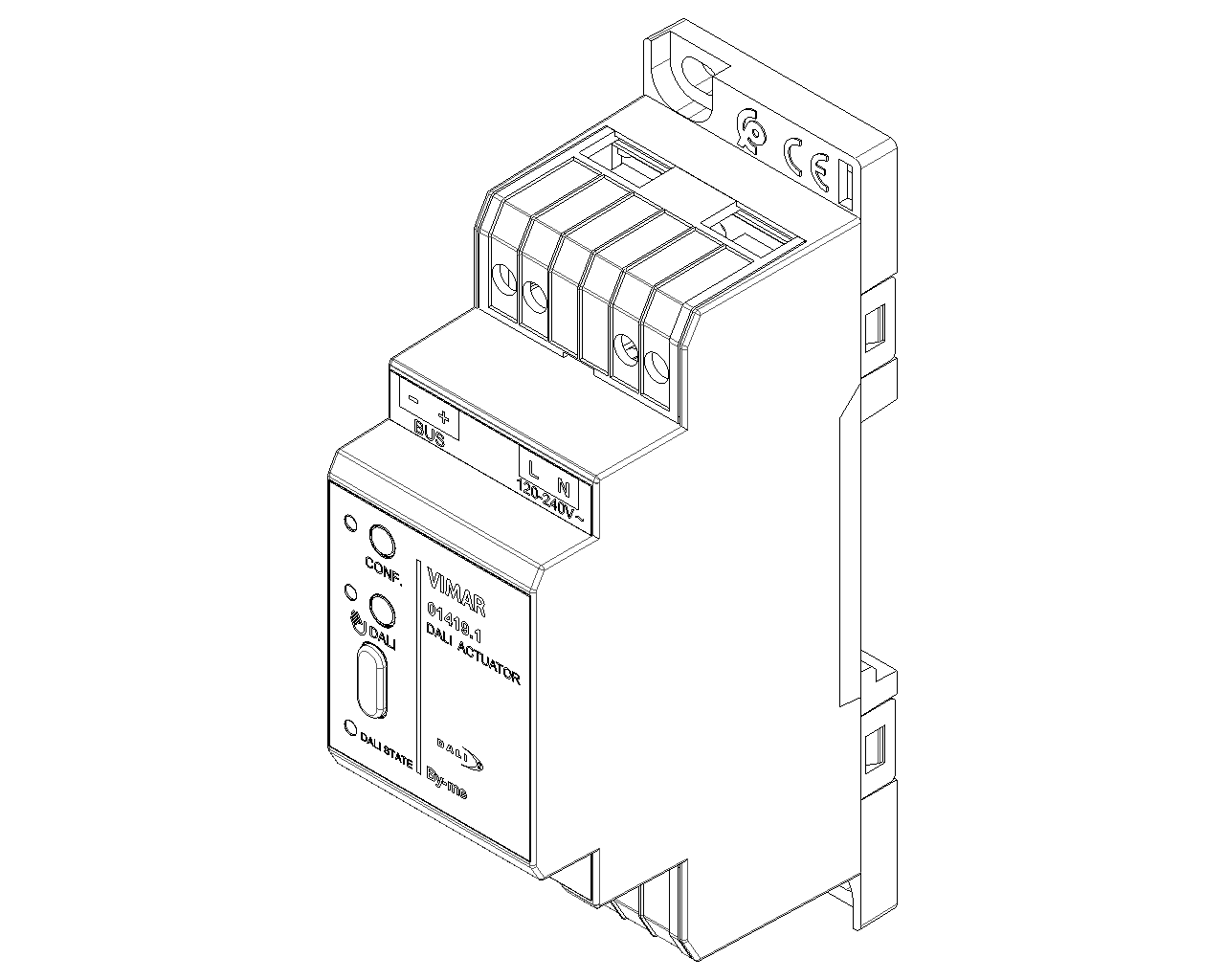

3D view art. 01419.1
PNG DXF
Class group
Installation bus systems
Class
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Model
Light system interface/DALI
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
No
Radio interface
No
IR interface
No
Degree of protection (IP)
IP20

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352657571
1 NR
14.2x6.2x5.6 [cm]
143.6 [g]
