01418
Smart systems&products / By-me Plus / Shared components / DIN devices

Home autom.dimmer 2OUT200W LED120-240V
Dimmer, 120-240 V~ 50/60 Hz, cutting-edge phase, 2 outputs for 40-300 W at 240 V~, 20-150 W at 120 V~ incandescent lamps, 40-300 VA at 240 V~, 20-150 VA at 120 V~ electronic transformers, CFL 10-200 W at 240 V~, 5-100 W at 120 V~ CFL lamps, 3-200 W at 240 V~, 3-100 W at 120 V~ LED lamps, local control push button, By-me Plus smart automation, fuse protection, on DIN (60715 TH35) rail installation, occupies 4 17.5 mm modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Power supply for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
With LED indication
Yes
Bus voltage stockable
No
Number of integrated choke coils
0
Number of lines to feed
2
Max. output current
2,70 mA

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352613447
1 NR

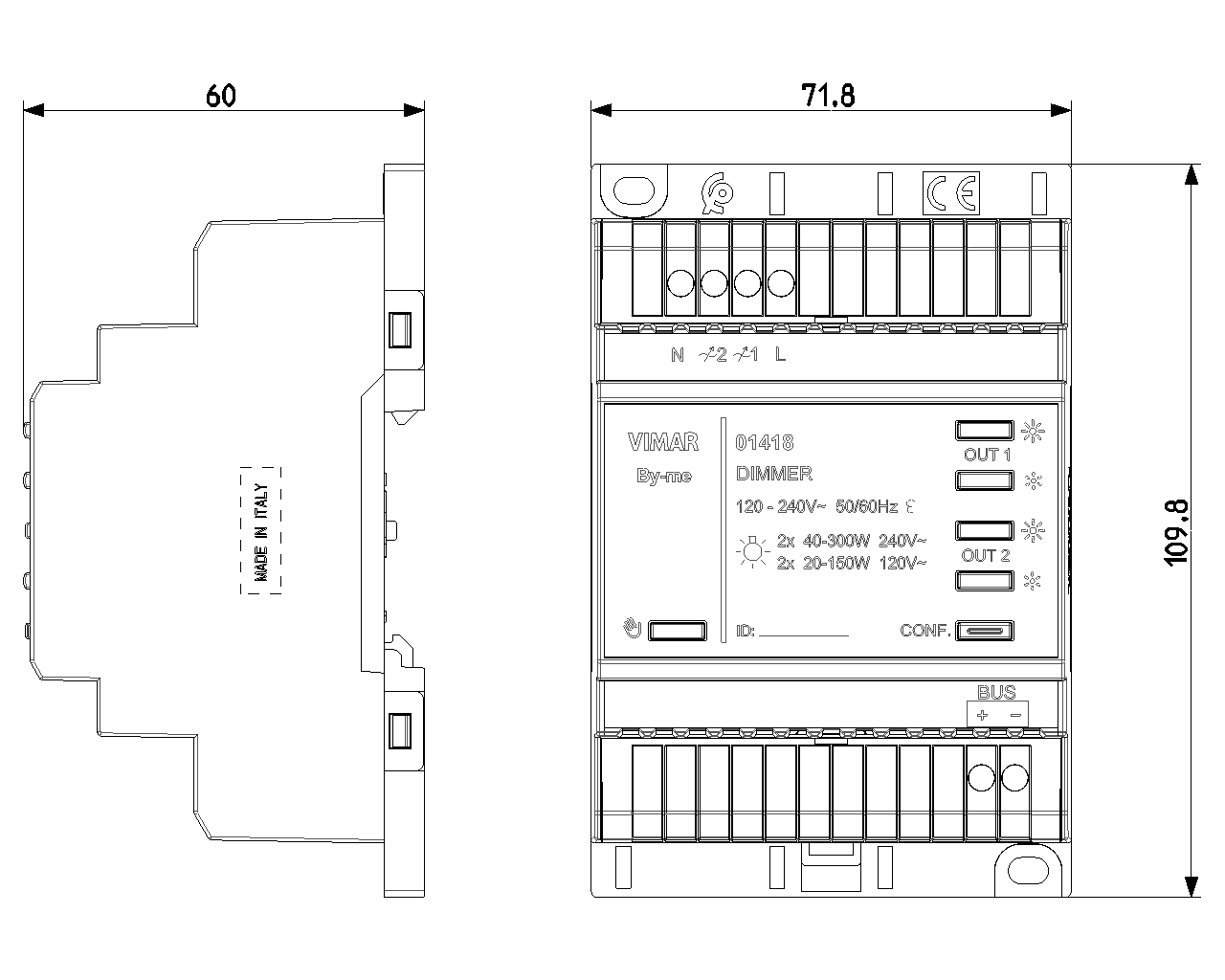

11.7x10.8x7.1 [cm]
210.1 [g]
