Home autom. actuator+RGBW 4OUT dimmer - 01417

Pdf
Vimar - 01417 - Home autom. actuator+RGBW 4OUT dimmer
Vimar - 01417 - Home autom. actuator+RGBW 4OUT dimmer

01417
Smart systems&products / By-me Plus / Surface mounting components / Non-modular components

Home autom. actuator+RGBW 4OUT dimmer
Actuator and RGB (W) dimmer, 4 PWM outputs up to 5 A 12-48 Vdc with steady voltage control, brightness adjustment of max 4 monochrome LED or RGB (W) LED strips/spotlights or Dynamic White LED strips/spotlights, 1 NO 6 A 120-240 V~ relay output for LED power units, local control push button, By-me Plus smart automation, on DIN (60715 TH35) rail installation, occupies 4 17.5 mm modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Analogue actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
DRA (DIN-rail adapter)
Width in number of modular spacings
4
Model
Base module
With LED indication
Yes
With bus connection
Yes
Number of outputs
4
Output current
0 - 12 mA
Output voltage
0 - 48 V
Degree of protection (IP)
IP20

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352613461
1 NR

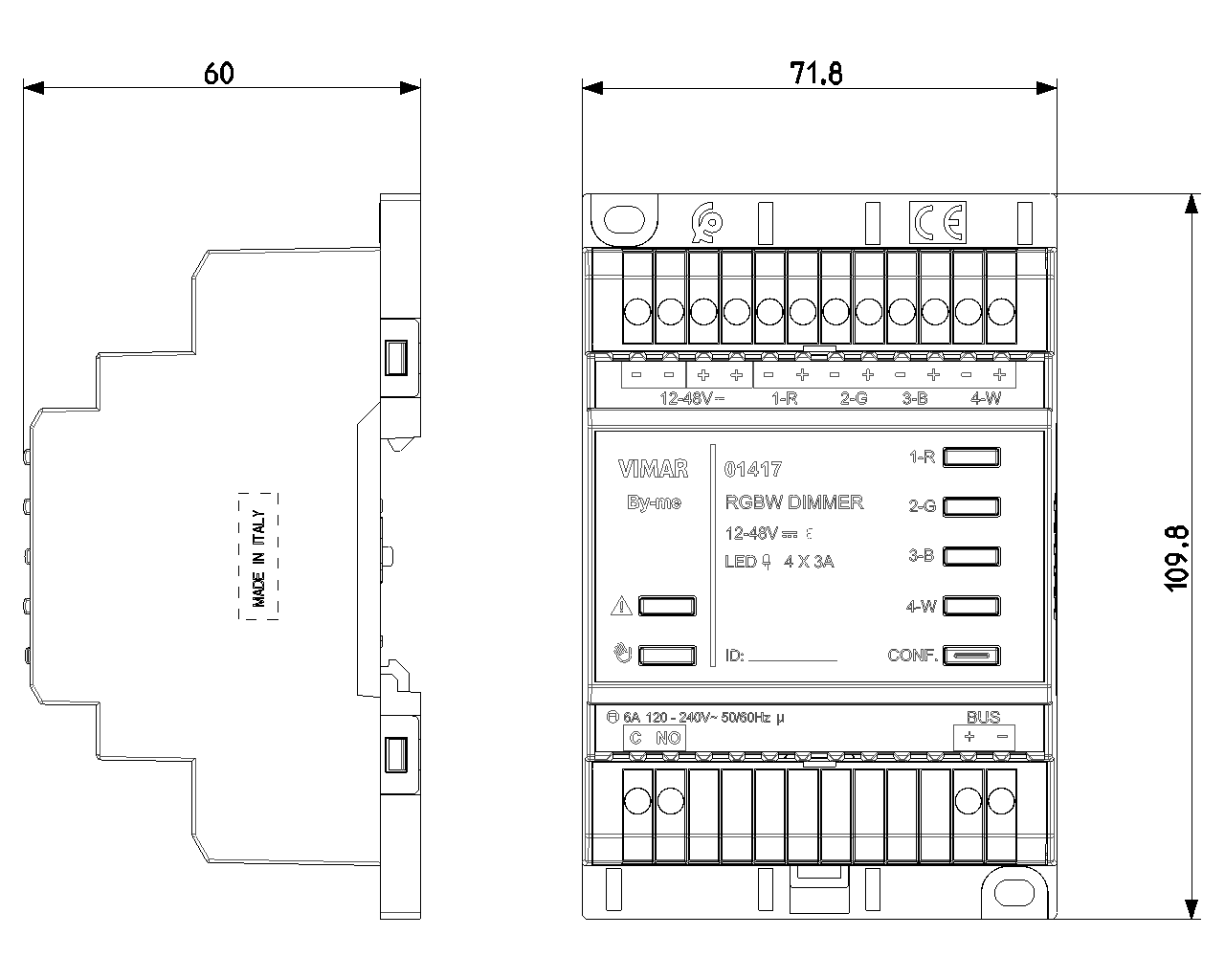

11.7x10.8x7.1 [cm]
210.1 [g]
