Vimar - 01299.1.N - Universal outlet insert black

01299.1.N
Portable installation / Plugs and socket outlets / Plugs&sockets accessories / Panel socket outlets

Universal outlet insert black
SICURY 2P+T 16 A 250 V~ universal socket outlet connector block, for applications, black - for 2P 2.5 A europlugs, 2P and 2P+T 10 A and 16 A Italian standard plugs and 2P+T 16 A German standard plugs - monobloc execution

Product Status
3 - Active

Drawings

view encumbered art. 01299.1.N
PNG DXF

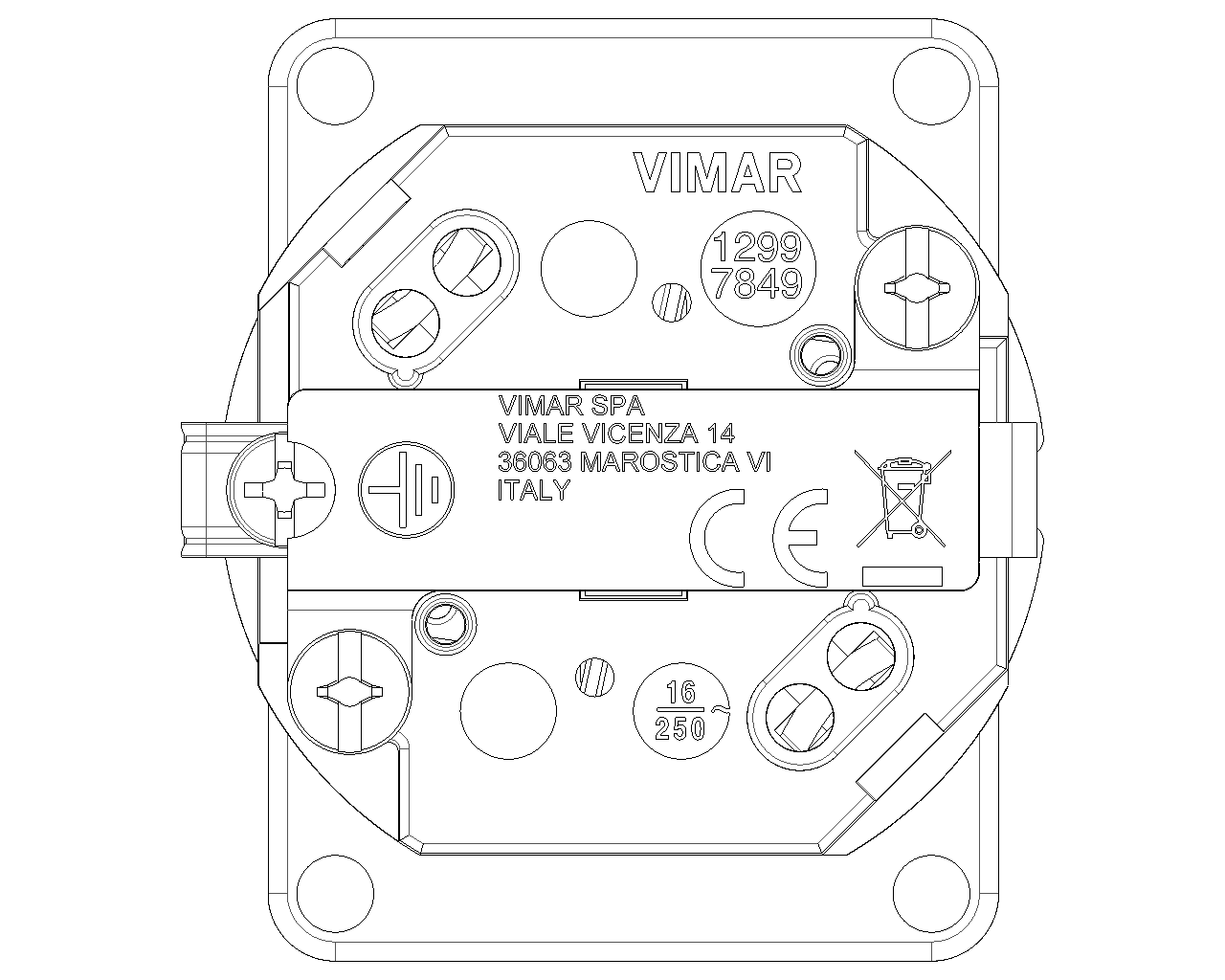

rear view art. 01299.1.N
PNG DXF

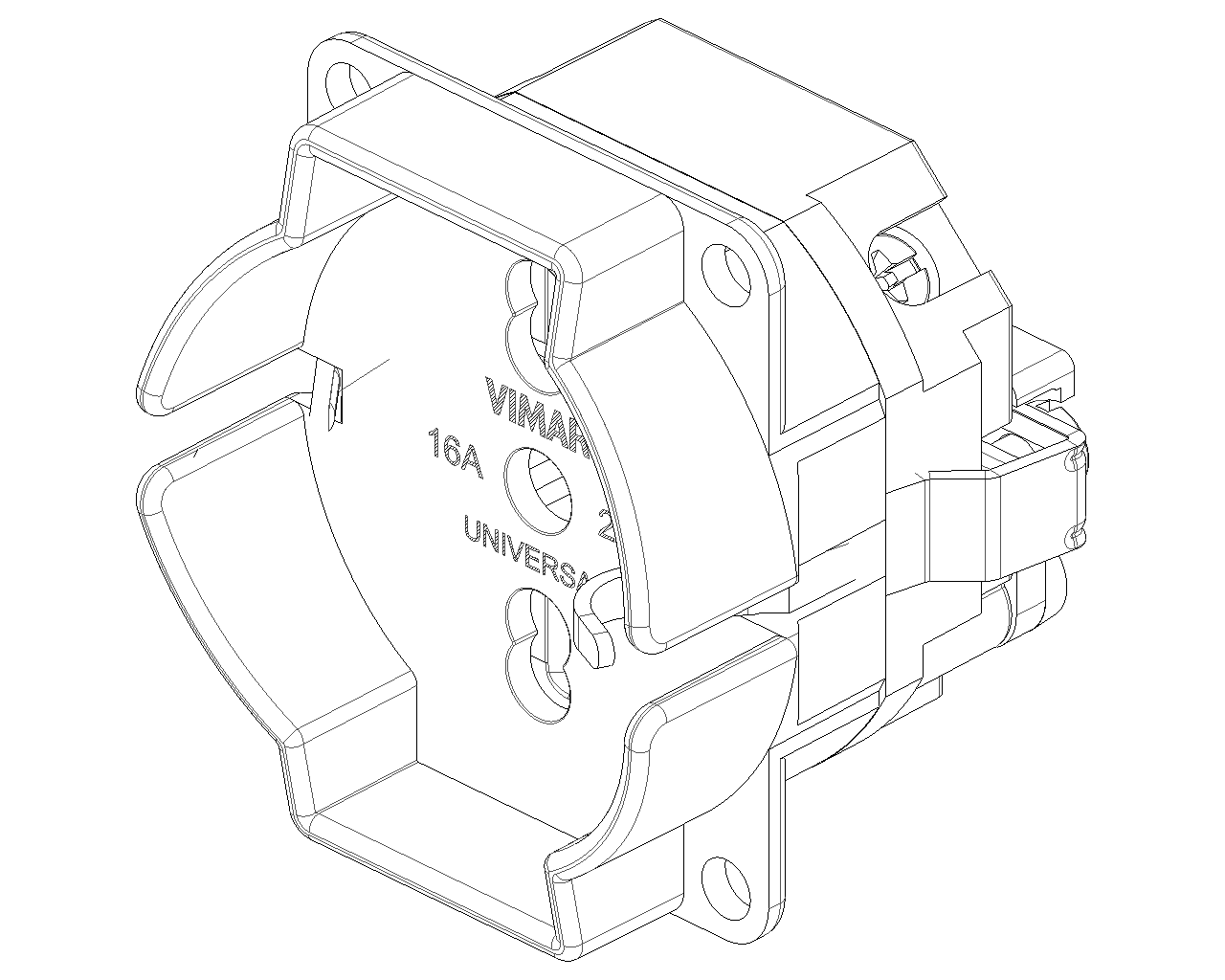

3D view art. 01299.1.N
PNG DXF
Class group
Domestic switching devices
Class
Coupler with protective contact
Model
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Degree of protection (IP)
IP20
Insert direction
Straight
Connection system
Screwed terminal
Suitable for protective contact pin
Yes
Colour
Black
RAL-number
0
Number of poles
2
Nominal voltage
250 V
Nominal current
16 A

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352636446
1 NR
3.8x4.9x4 [cm]
41.8 [g]
Barcode Qty 20 NR
8007352636453
20 NR
24.4x13.9x8.4 [cm]
917 [g]
