Multi-outlet 4USA+EU ivory - 01271

Pdf
Vimar - 01271 - Multi-outlet 4USA+EU ivory
Vimar - 01271 - Multi-outlet 4USA+EU ivory

01271
Portable installation / Plugs and socket outlets / Multiple socket outlets / Other multiple socket outlets

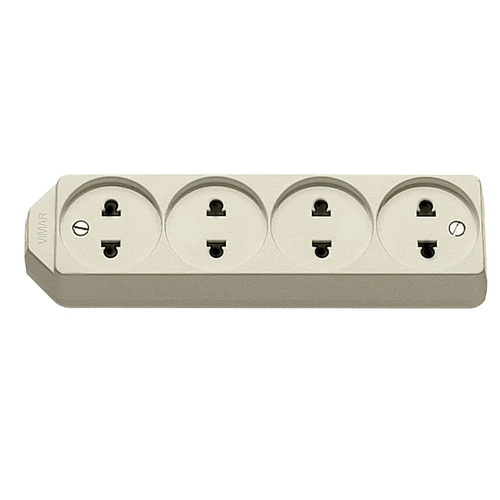

Multi-outlet 4USA+EU ivory
2P 15 A 250 V~ multiple portable socket outlet, ivory: 4 Euro-American standard outlets (for plugs with parallel and flat pins and ø 4,8 mm pins)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet combination
Housing shape
Rectangular
Number of socket outlets CEE 7/1 (no protective contact)
0
Number of socket outlets CEE 7/16 (EURO)
0
Number of socket outlets with protective contact CEE 7/3 (type F)
0
Number of socket outlets with earth pin
0
Number of cold device socket outlets
0
Number of socket outlets Italian standard type Bipasso
0
Number of socket outlets Italian standard type P11
0
Number of socket outlets Italian standard type P17
0
Number of NEMA-outlets
0
Number of socket outlets Swiss standard type 13
0
Number of socket outlets Swiss standard type 15
0
Number of socket outlets Swiss standard type 23
0
Number of socket outlets Swiss standard type 25
0
With on/off switch
No
Residual current circuit breaker (RCCB)
No
Number of universal multi standard sockets
4
Mains filter
No
Number of other socket outlets
4
Number of USB connections
0
Over voltage protection
No
Nominal current
15 A
Core cross section
0,00
With cover
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Beige
RAL-number (similar)
9001
Transparent
No
Degree of protection (IP)
IP20
Length of power cord
0,00 m
Rotated central insert
No
Angle rotated central insert
Other
NEMA designation
5-15

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352036420
1 NR
17.8x4.5x4.5 [cm]
95 [g]
Barcode Qty 10 NR
8007352006485
10 NR
27.8x23.6x5.5 [cm]
1,051 [g]
