2P+E 15A USA+SASO plug white - 01096.B

01096.B
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

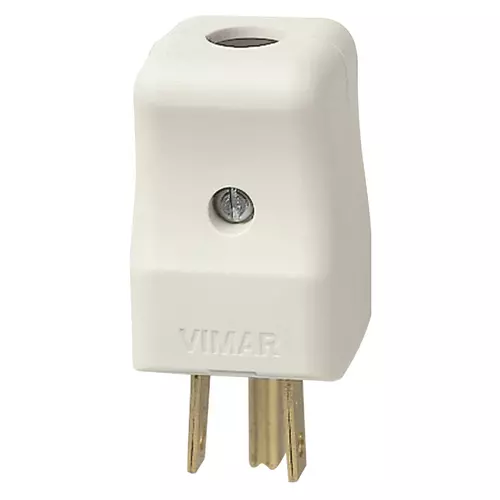

2P+E 15A USA+SASO plug white
2P+E 15 A 127 V~ plug, American and Saudi Arabian standards, axial cable entry, white

Product Status
3 - Active

• ETIM technical data
• Certifications
• Supply data

Class group
Domestic switching devices

Class
Plug with protective contact

Model
NEMA

Material
Plastic

Material quality
Thermoplastic

Degree of protection (IP)
IP20

Insert direction
Straight

Connection system
Screwed terminal

Colour
White

Number of poles
2

Nominal voltage
127 V

Nominal current
15 A

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

---

Barcode

8007352071124

1 NR

3x6.5x3.2 [cm]

25.87 [g]

8007352336551

10 NR

20x10x5 [cm]

258.73 [g]

8007352071131

100 NR

28.4x24.4x16.4 [cm]

2,796.67 [g]
