2P+E 10A 90°-plug white - 01041.B

01041.B
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Mille series plugs&sockets

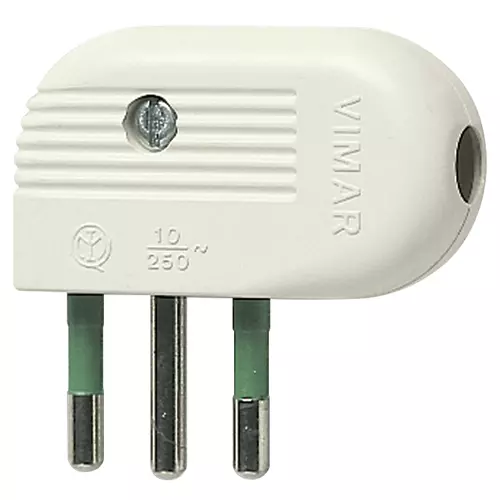

2P+E 10A 90°-plug white
2P+E 10 A 250 V~ SICURY flat plug, Italian standard SPA11, 90° cable entry, white

Product Status
3 - Active

You may also be interested in

01041 - 2P+E 10A 90°-plug black

• ETIM technical data
• Certifications
• Supply data

Class group
Domestic switching devices

Class
Plug with protective contact

Model
Other

Material
Plastic

Material quality
Thermoplastic

Degree of protection (IP)
IP20

Insert direction
Right-angled

Connection system
Screwed terminal

Colour
White

Number of poles
2

Nominal voltage
250 V

Nominal current
10 A

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

---

Barcode

8007352035454

1 NR

5x4.8x1.8 [cm]

22 [g]

8007352008045

100 NR

28.5x26x23.5 [cm]

2,380 [g]
