2P+E 16A axial plug black - 01026

01026
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Mille series plugs&sockets

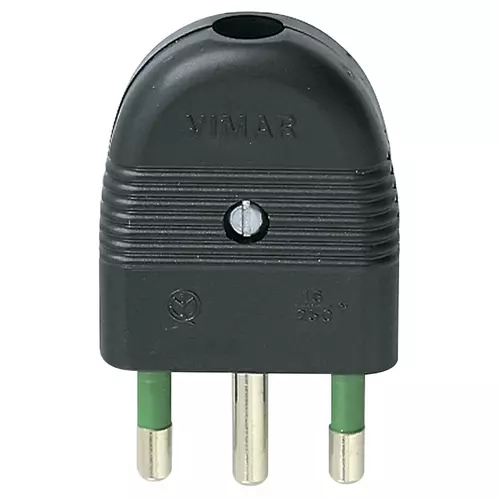

2P+E 16A axial plug black
2P+E 16 A 250 V~ SICURY plug, Italian standard S17, axial cable entry, black

Product Status
3 - Active

You may also be interested in

01026.B - 2P+E 16A axial plug white

• ETIM technical data
• Certifications
• Supply data

Class group
Domestic switching devices

Class
Plug with protective contact

Model
Other

Material
Plastic

Material quality
Thermoplastic

Degree of protection (IP)
IP20

Insert direction
Straight

Connection system
Screwed terminal

Colour
Black

Number of poles
2

Nominal voltage
250 V

Nominal current
16 A

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

---

Barcode

8007352035362

1 NR

4x6.6x1.8 [cm]

29 [g]

8007352005860

100 NR

28.5x26x23.5 [cm]

3,202 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
