2P 10A P10 axial outlet white - 01022.B

Pdf
Vimar - 01022.B - 2P 10A P10 axial outlet white
Vimar - 01022.B - 2P 10A P10 axial outlet white

01022.B
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Mille series plugs&sockets

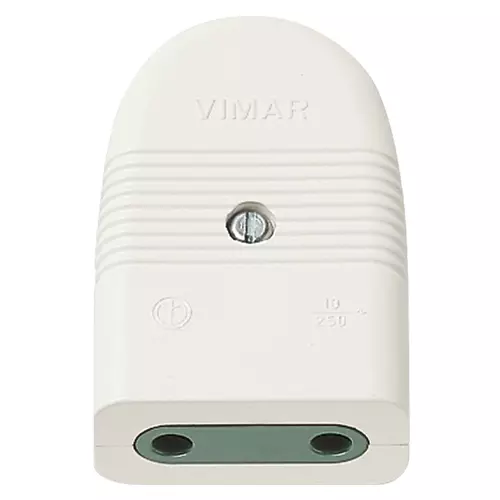

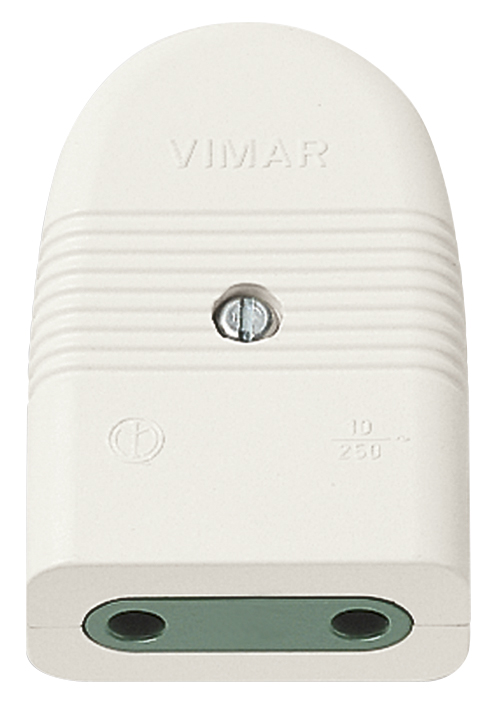

2P 10A P10 axial outlet white
2P 10 A 250 V~ SICURY socket outlet, Italian standard P10, axial cable entry, white

Product Status
3 - Active

You may also be interested in

01022
01022 - 2P 10A P10 axial outlet black
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P10
With signal lamp
No
Number of units
1
Number of modules (module system)
0
Number of socket outlets switchable
0
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
Yes
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Other
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Device width
40,00 mm
Device height
46,00 mm
Device depth
18,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352035331
1 NR
4x6.6x1.8 [cm]
28.2 [g]
Barcode Qty 100 NR
8007352009943
100 NR
28.5x26x23.5 [cm]
3,110 [g]
