00931
Wiring devices / Traditional wiring devices / Shared components / Accessories

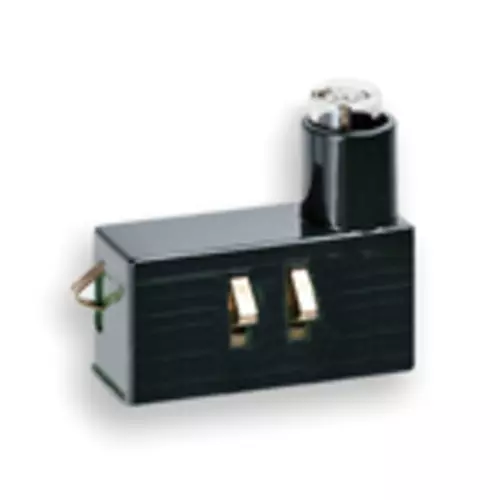

Pre-wired LED unit 110-250V 0,5W amber
LED signalling unit, pre-wired, for visibility in darkness, 110-250 V 50/60 Hz 0,5 W, amber
Product Status
3 - Active

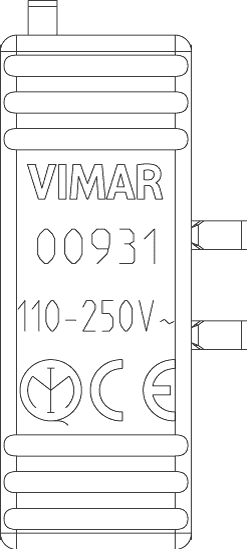

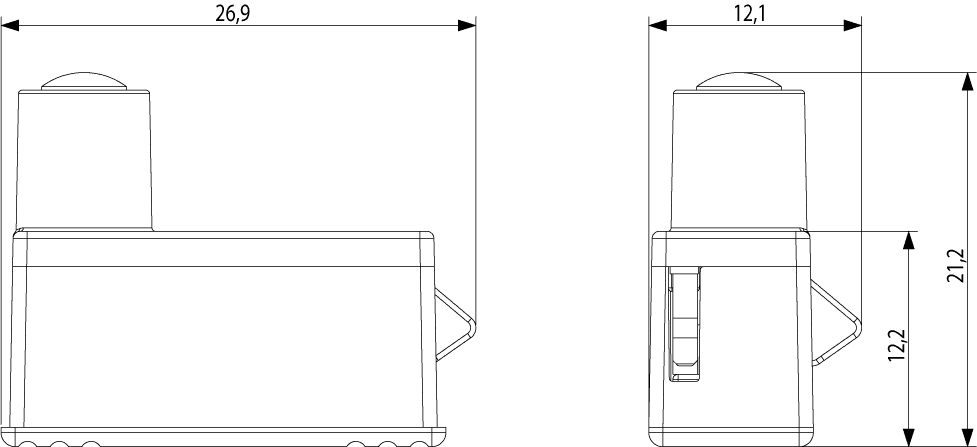

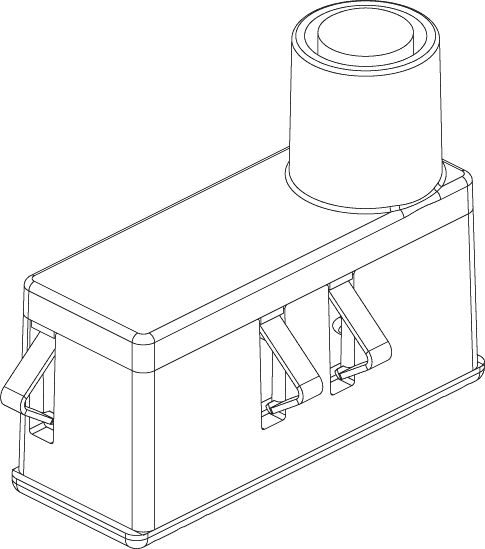

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Illumination insert for domestic switching devices
Illumination insert for domestic switching devices
Application
Switch/push button
Switch/push button
Lamp type
LED
LED
With light source
Yes
Yes
Colour light source
Amber
Amber
Lamp holder
Other
Other
Nominal voltage
250,00 - 250,01 V
250,00 - 250,01 V
00. CE Marking - EU
29. QCERT - Colombia
37. Marking - Morocco
Minimum order quantity: 20 NR
Barcode
8007352401143
1 NR
1.4x1.9x1 [cm]
2.6 [g]
8007352401150
20 NR
5.3x3.9x7.6 [cm]
54.8 [g]
8007352401167
100 NR
20.6x8.5x6 [cm]
322.47 [g]
| Question: | How can I illuminate inverters, switches and buttons of the Plana series so that they are lit and visible in the dark, and not illuminated in the presence of ambient light? |
|---|---|
| Answer: | With a 00931 pre-wired signalling unit which illuminates devices in the dark without the need for any extra connections. Illumination units provided with cables (e.g., 10493) illuminate devices which can accommodate them or signal the operating status of the associated loads. |
