1P 2[32]A 1-way push button switch - 00750

Pdf
Vimar - 00750 - 1P 2[32]A 1-way push button switch
Vimar - 00750 - 1P 2[32]A 1-way push button switch

00750
Portable installation / Lighting components / Portable controls / Portable push buttons

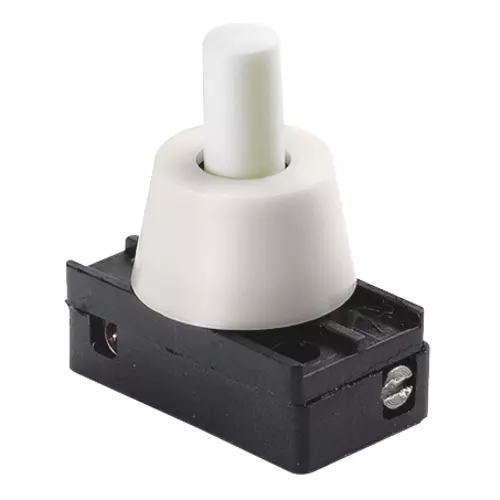

1P 2[32]A 1-way push button switch
1P 2[32] A 250 V~ 1-way push button-operated switch, 8 mm, mounted ring

Product Status
3 - Active

Class group
Domestic switching devices
Class
Device built-in switch and -push button
Model
Combination switch/button
Method of operation
Push button
Number of control elements
1
Connection type
Screwed terminal
Number of poles
1-pole
Type of fastening
Fastening ring/-nut
Hole diameter built-in
0 - 10 mm
Built-in depth
10 mm
Illumination
None
Imprint/indication
None
Nominal voltage
250 V
Nominal current
2,00 A
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Transparent
No
Colour control elements
White
RAL-number (similar) control element
9003
Housing colour
Black
RAL-number (similar) housing
9005

00. CE Marking - EU

17. ENEC 03 (IMQ)

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 250 NR

Barcode

Barcode Qty 1 NR
8007352035201
1 NR
2.3x2.8x1.3 [cm]
4.6 [g]
Barcode Qty 250 NR
8007352006577
250 NR
19x19x11 [cm]
1,335.53 [g]
