Multi-outlet 4Schuko+switch 3m white - 00494.L.B

Pdf
Vimar - 00494.L.B - Multi-outlet 4Schuko+switch 3m white
Vimar - 00494.L.B - Multi-outlet 4Schuko+switch 3m white

00494.L.B
Portable installation / Plugs and socket outlets / Multiple socket outlets / Other multiple socket outlets

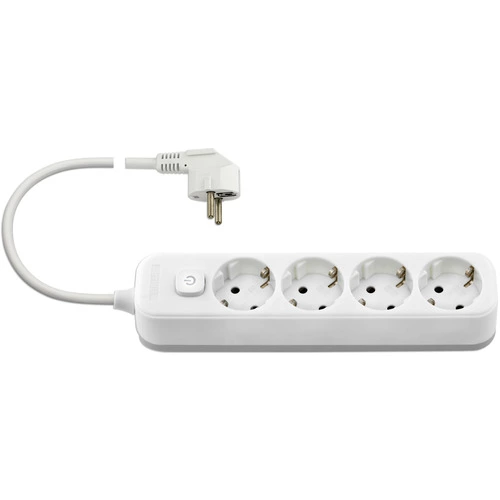

Multi-outlet 4Schuko+switch 3m white
2P+T 16 A 250 V~ portable multiple socket outlet, 4 SICURY outputs, German standard, 2P 16 A luminous 1-way switch, 3 m cable with 3 conductors size 1.5 mm2 (3G1.5), and 2P+T 16 A German/French standard plug with 90° cable output, max output power 3680 W, white

Product Status
3 - Active

Drawings

view encumbered art. 00494.L.B
PNG DXF
rear view art. 00494.L.B
PNG DXF
3D view art. 00494.L.B
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet combination
Housing shape
Rectangular
Number of socket outlets CEE 7/1 (no protective contact)
0
Number of socket outlets CEE 7/16 (EURO)
0
Number of socket outlets with protective contact CEE 7/3 (type F)
4
Number of socket outlets with earth pin
0
Number of cold device socket outlets
0
Number of socket outlets Danish standard (earthing pin)
0
Number of socket outlets French standard type E
0
Number of socket outlets Italian standard type Bipasso
0
Number of socket outlets Italian standard type P11
0
Number of socket outlets Italian standard type P17
0
Number of NEMA-outlets
0
Number of socket outlets Swiss standard type 13
0
Number of socket outlets Swiss standard type 15
0
Number of socket outlets Swiss standard type 23
0
Number of socket outlets Swiss standard type 25
0
With on/off switch
Yes
Residual current circuit breaker (RCCB)
No
Number of universal multi standard sockets
0
Mains filter
No
Number of other socket outlets
0
Number of USB connections
0
Over voltage protection
No
Nominal current
16 A
Core cross section
1,50
With cover
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Degree of protection (IP)
IP20
Impact strength
Other
Length of power cord
3,00 m
Rotated central insert
Yes
Angle rotated central insert
Other
NEMA designation
None
Operating temperature
0 - 25 °C
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352725904
1 NR
28x12.5x7.5 [cm]
536.5 [g]
Barcode Qty 10 NR
8007352725911
10 NR
32x26x28 [cm]
5,890 [g]
