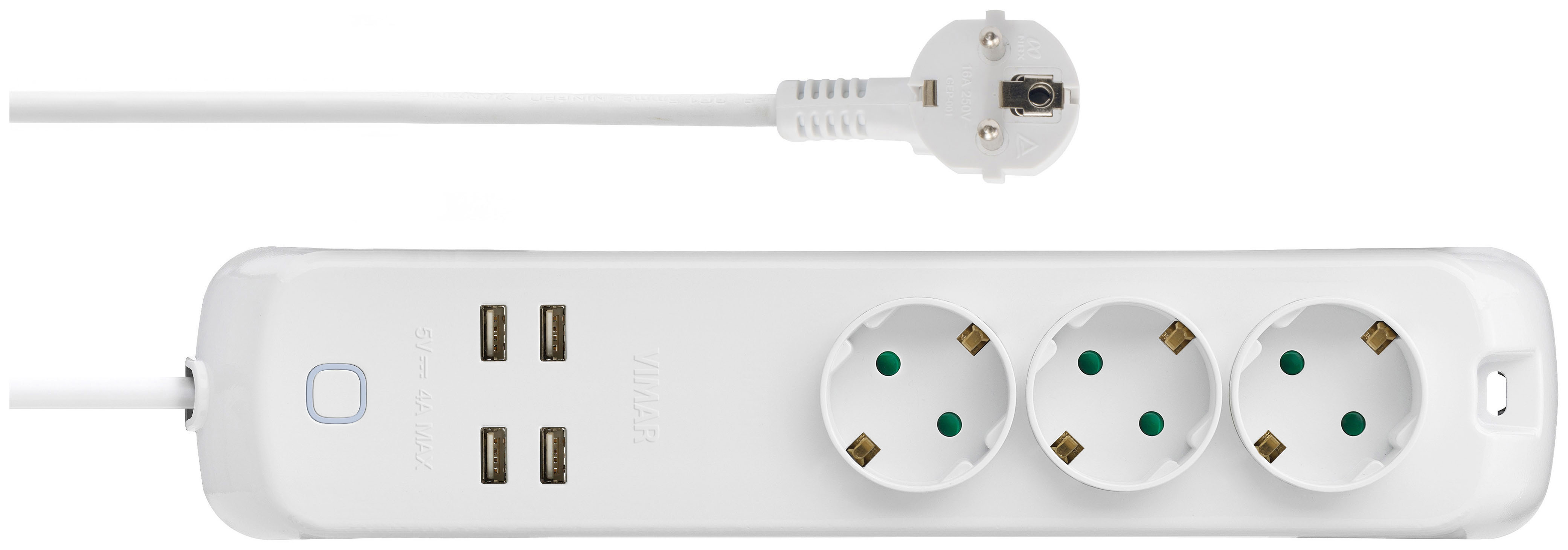

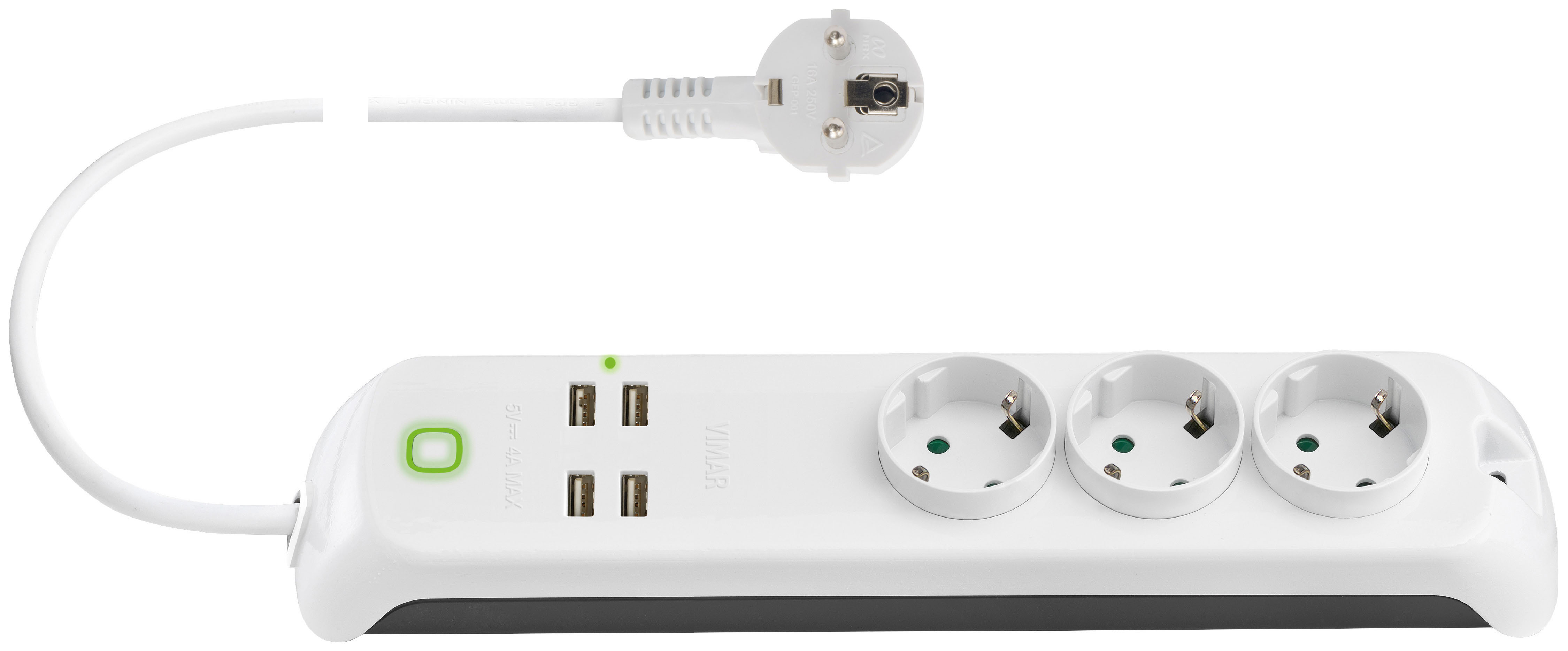

Foto gallery #1

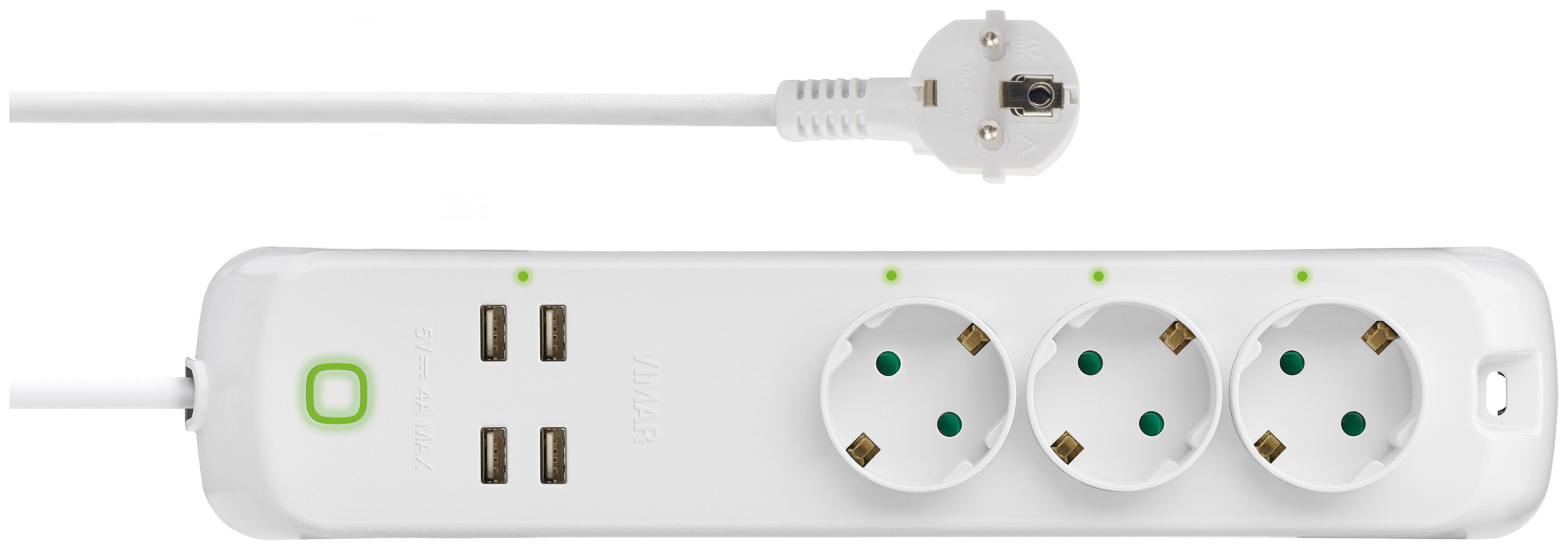

Foto gallery #2
Foto gallery #3
Foto gallery #4
Vimar - 00447.CK.B - Multi-outlet16A 3DE+4USB+swit.+Wi-Fi+S31

00447.CK.B
Portable installation / Plugs and socket outlets / Multiple socket outlets / Other multiple socket outlets

Multi-outlet16A 3DE+4USB+swit.+Wi-Fi+S31
2P+E 16 A 250 V~ multiple portable socket outlet, 3 SICURY German standard outlets, 4 5 Vdc 2,4 A USB ports, luminous 1-way switch, local and remote control by app, 1.5 m 3-wire 1,5 mm2 (3G1,5) cable and 2P+E 16 A plug, German/French standards, 90° cable entry, white

  • You can control your household appliances from your smartphone or voice assistants
  • View Product App to turn on/turn off/time connected devices, check consumption levels, create scenarios by combining multiple actions and receive notifications if the device is offline
  • 3 Schuko outputs and 4 USB outputs for remote control

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

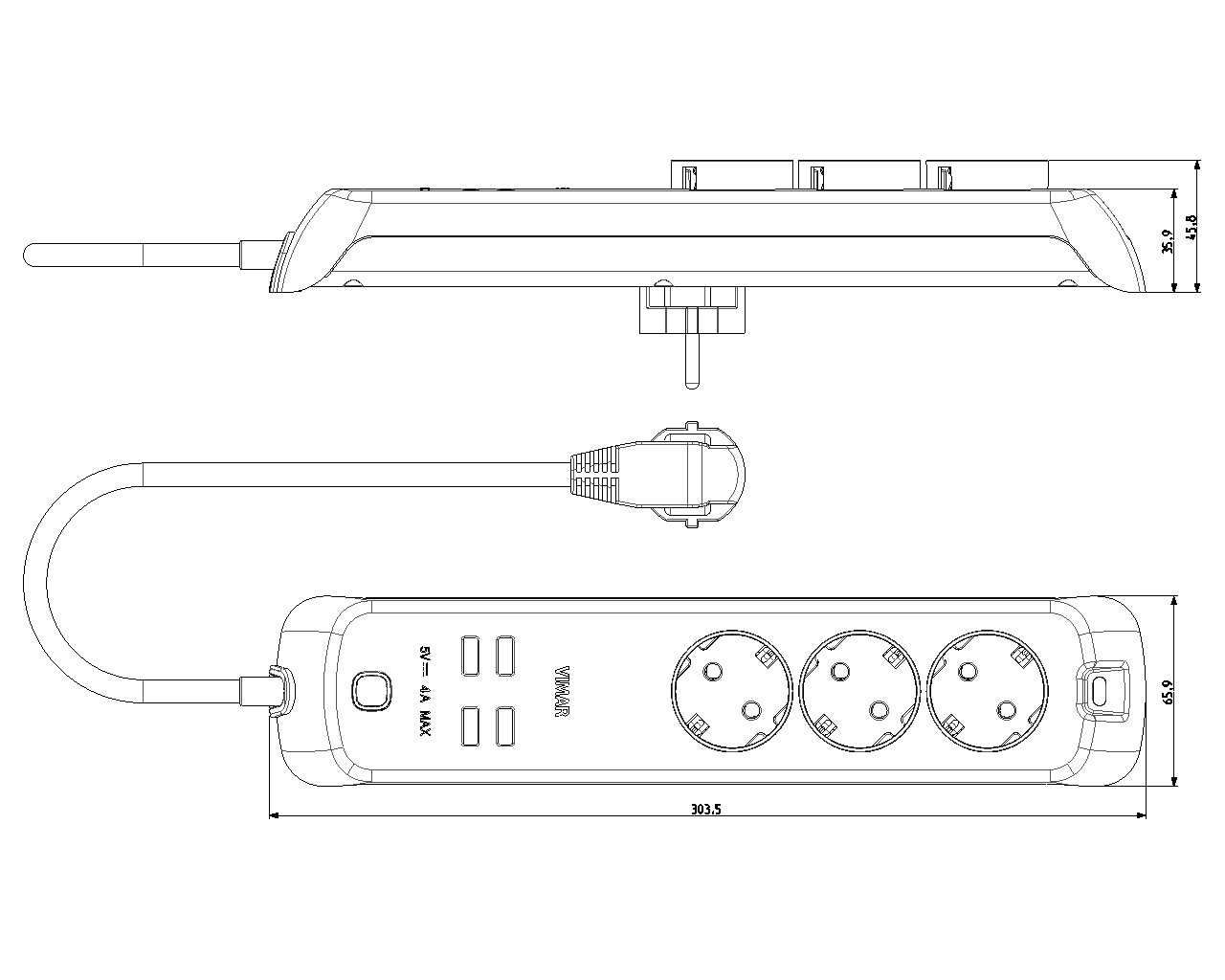

view encumbered art. 00447.CK.B
PNG DXF

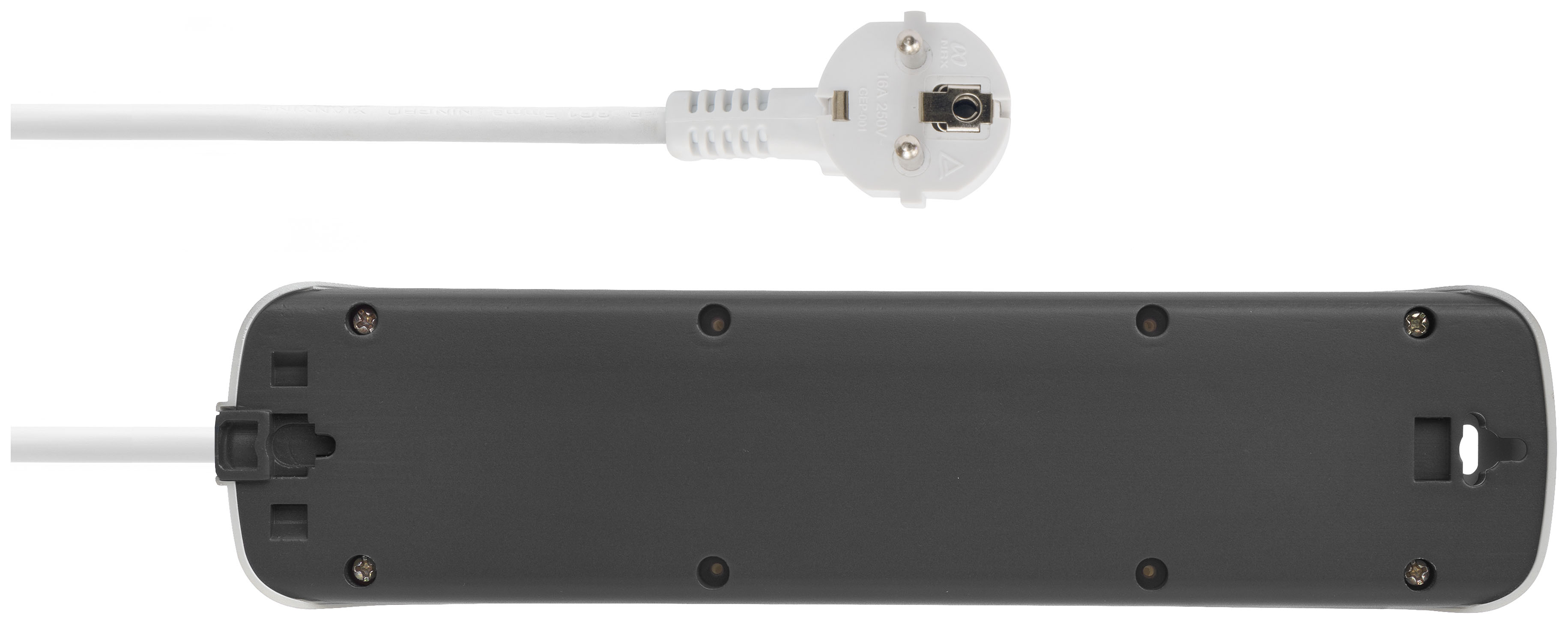

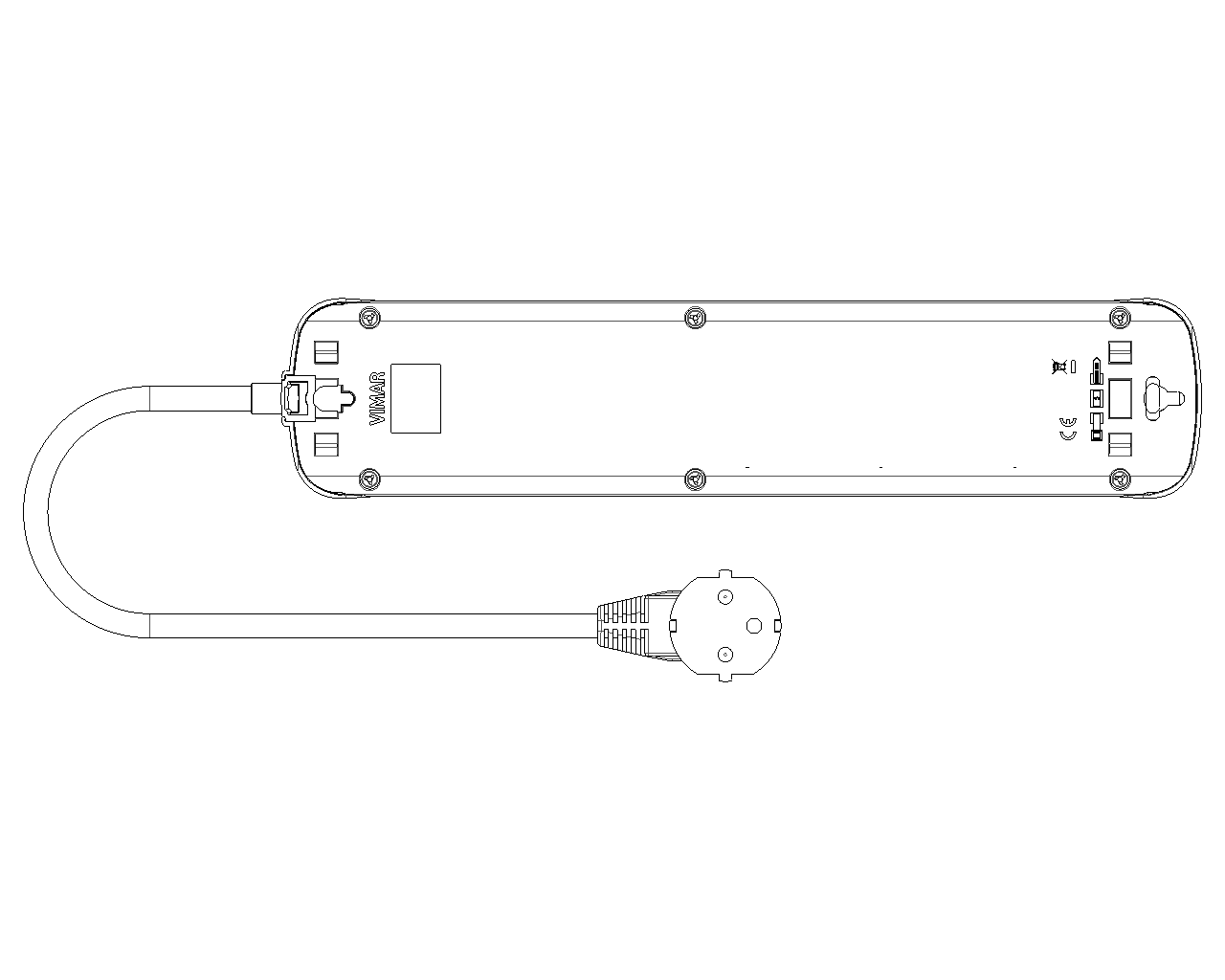

rear view art. 00447.CK.B
PNG DXF

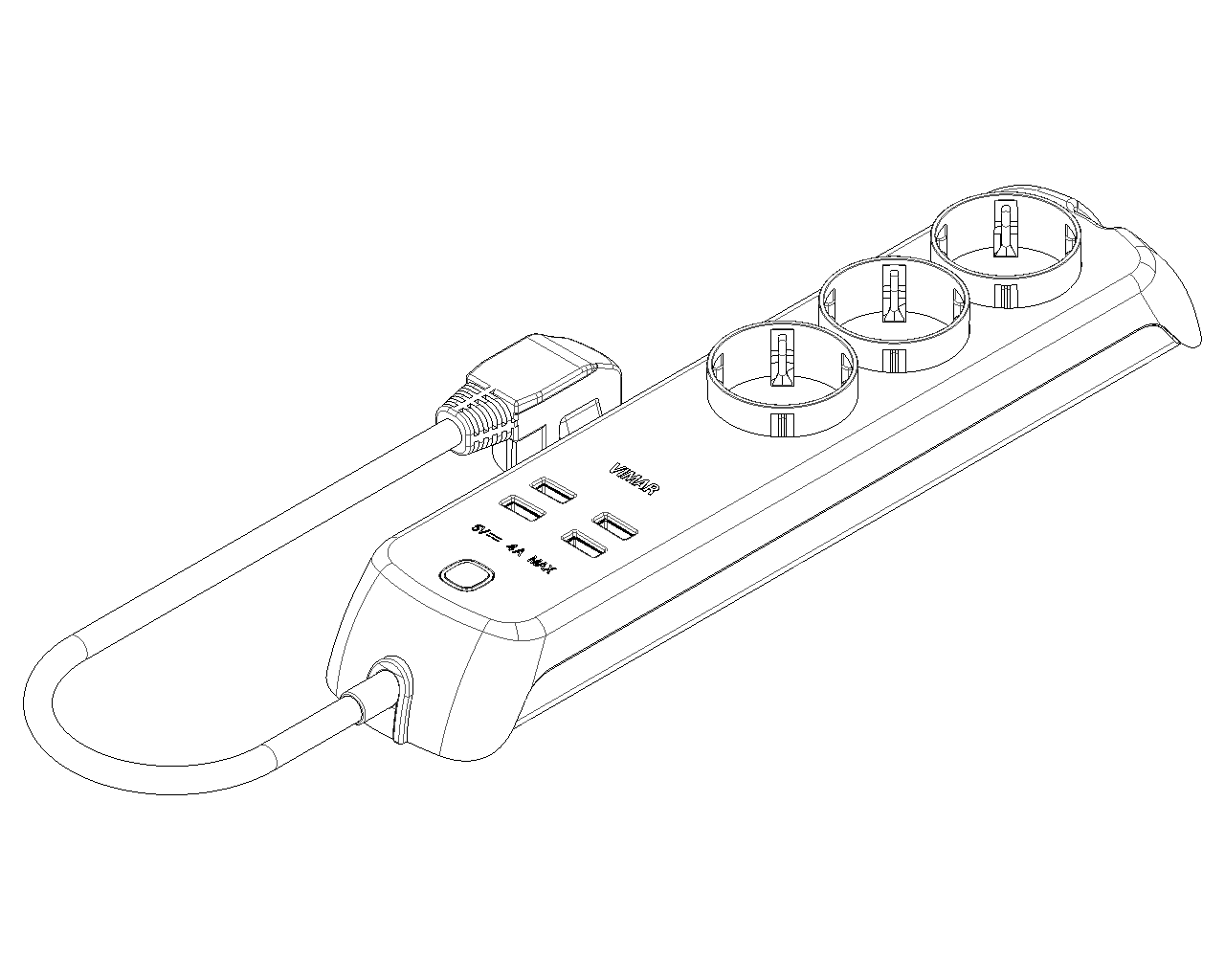

3D view art. 00447.CK.B
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet combination
Housing shape
Rectangular
Number of socket outlets CEE 7/1 (no protective contact)
0
Number of socket outlets CEE 7/16 (EURO)
0
Number of socket outlets with protective contact CEE 7/3 (type F)
3
Number of socket outlets with earth pin
3
Number of socket outlets Italian standard type Bipasso
0
Number of socket outlets Italian standard type P11
0
Number of socket outlets Italian standard type P17
0
Number of NEMA-outlets
0
Number of socket outlets Swiss standard type 13
0
Number of socket outlets Swiss standard type 15
0
Number of socket outlets Swiss standard type 23
0
Number of socket outlets Swiss standard type 25
0
With on/off switch
Yes
Residual current circuit breaker (RCCB)
No
Number of universal multi standard sockets
0
Mains filter
No
Number of other socket outlets
0
Number of USB connections
4
Over voltage protection
No
Nominal current
16 A
With cover
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
Degree of protection (IP)
IP20
Length of power cord
1,50 m
Rotated central insert
No
Angle rotated central insert
45°

00. CE Marking - EU

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 12 NR

Barcode

Barcode Qty 1 NR
8007352682719
1 NR
7.2x8.4x36.5 [cm]
489 [g]
Barcode Qty 12 NR
8007352693807
12 NR
36x35x24 [cm]
6,420 [g]
