2P+E 16A German axial outlet white - 00250.B

00250.B
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

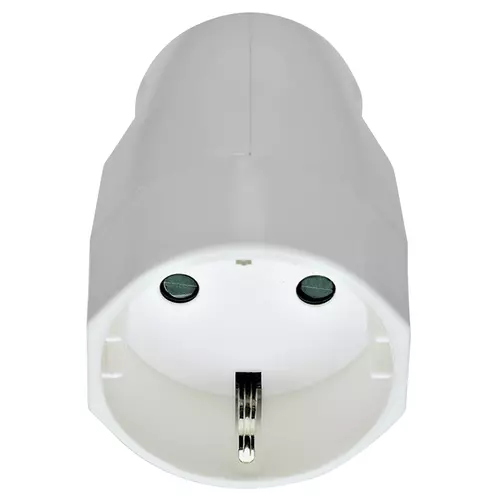

2P+E 16A German axial outlet white
Portable 2P+E 16 A 250 V~ SICURY socket outlet, German standard, axial cable entry, white

Product Status
3 - Active

You may also be interested in

00250 - 2P+E 16A German axial outlet black

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

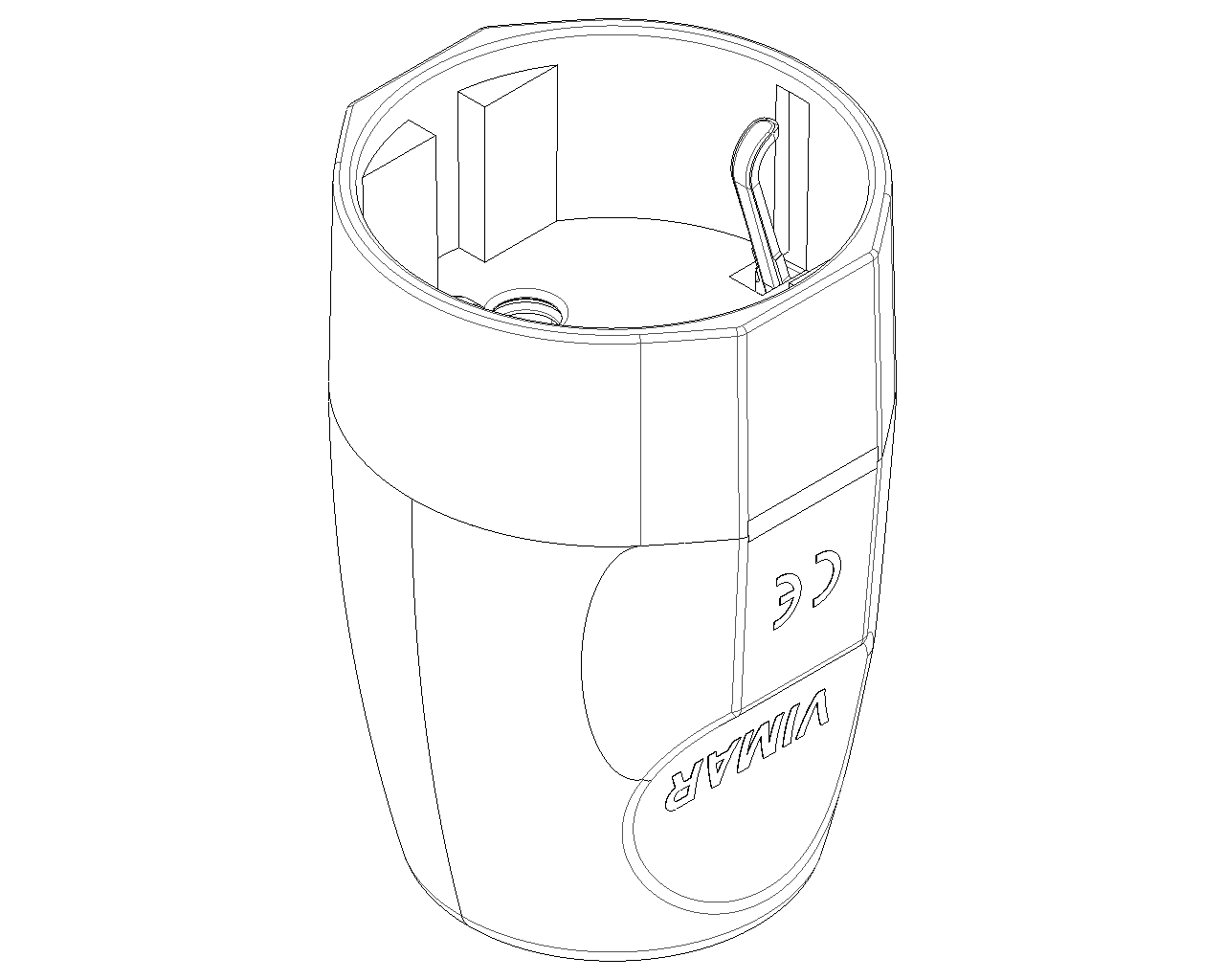

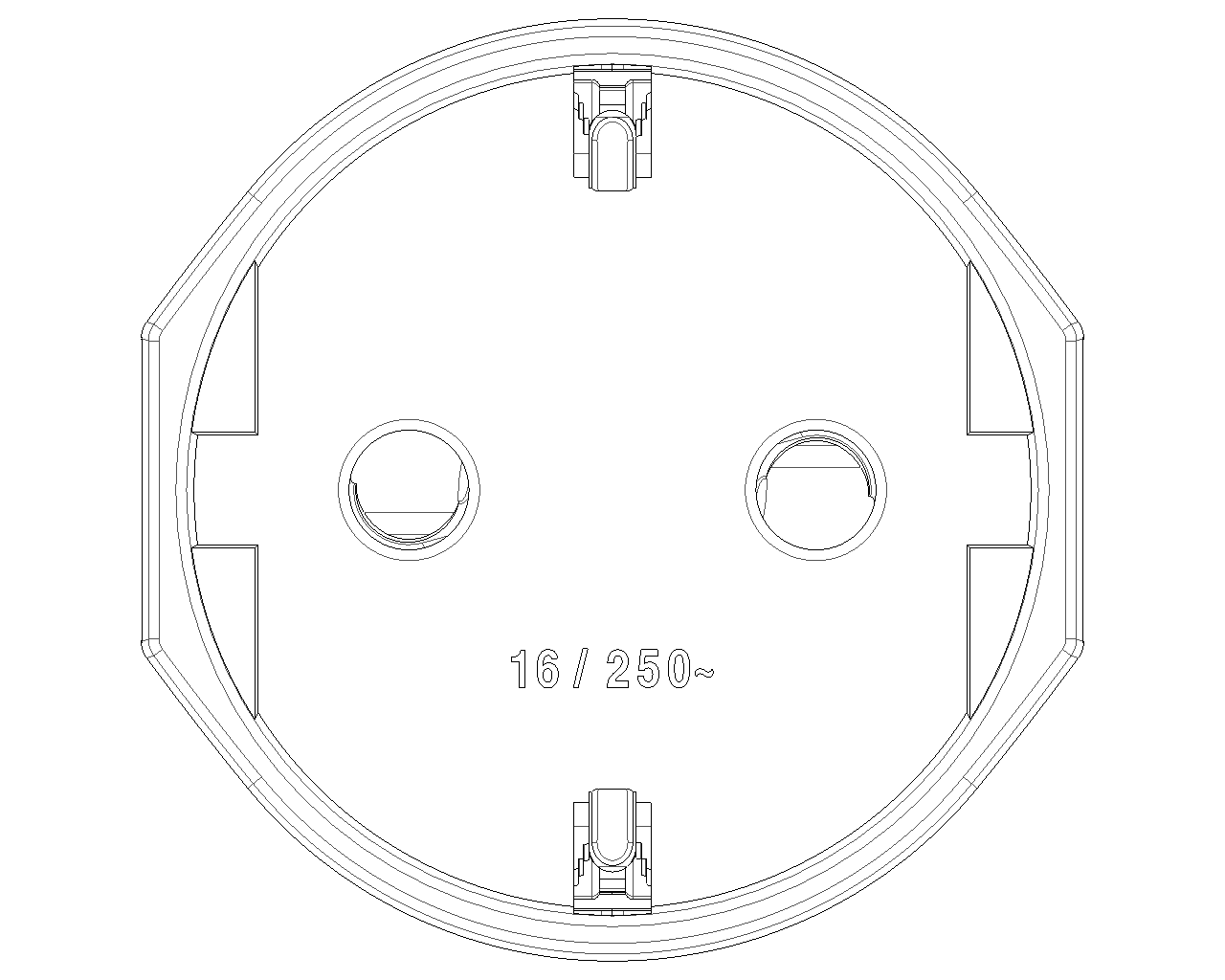

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Coupler with protective contact

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Degree of protection (IP)
IP20

Insert direction
Straight

Connection system
Screwed terminal

Suitable for protective contact pin
Yes

Colour
White

RAL-number
0

Number of poles
2

Nominal voltage
250 V

Nominal current
16 A

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 50 NR

---

Barcode

8007352066373

1 NR

14x6x4 [cm]

52.1 [g]

8007352066380

50 NR

28.5x27x17 [cm]

2,930 [g]
