2P+E 16A S31 axial plug white - 00231.B

Pdf

00231.B
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

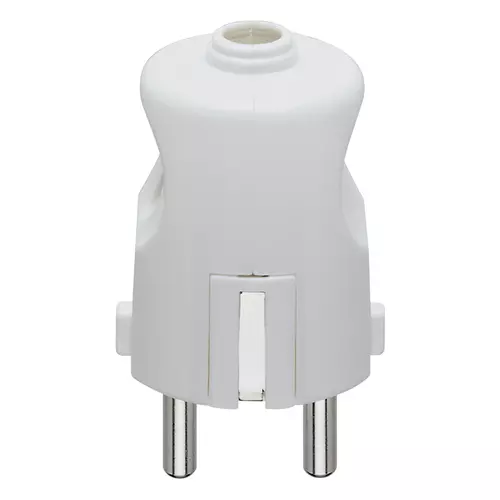

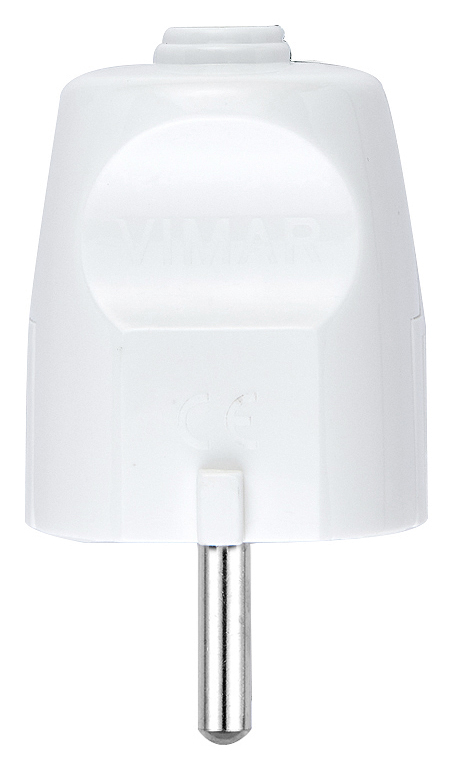

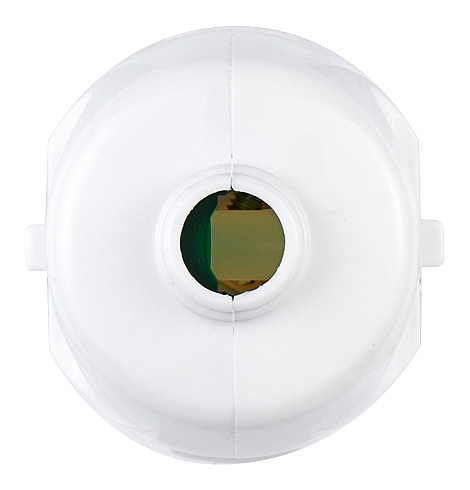

2P+E 16A S31 axial plug white
Portable 2P+E 16 A 250 V~ plug, German/French standards, axial cable entry, white

Product Status
3 - Active

You may also be interested in

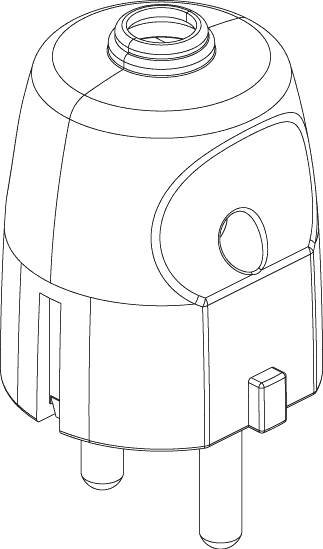

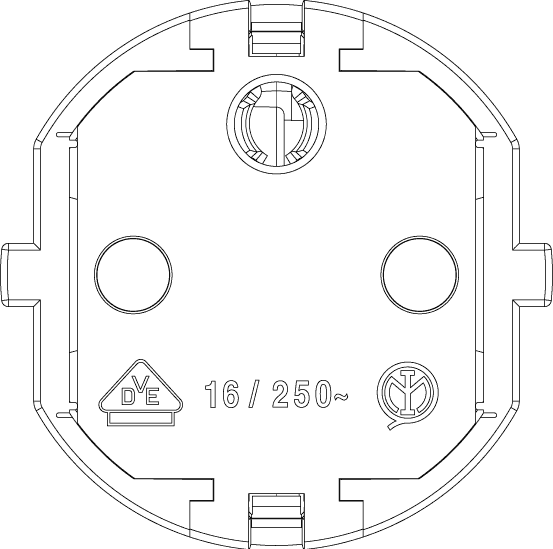

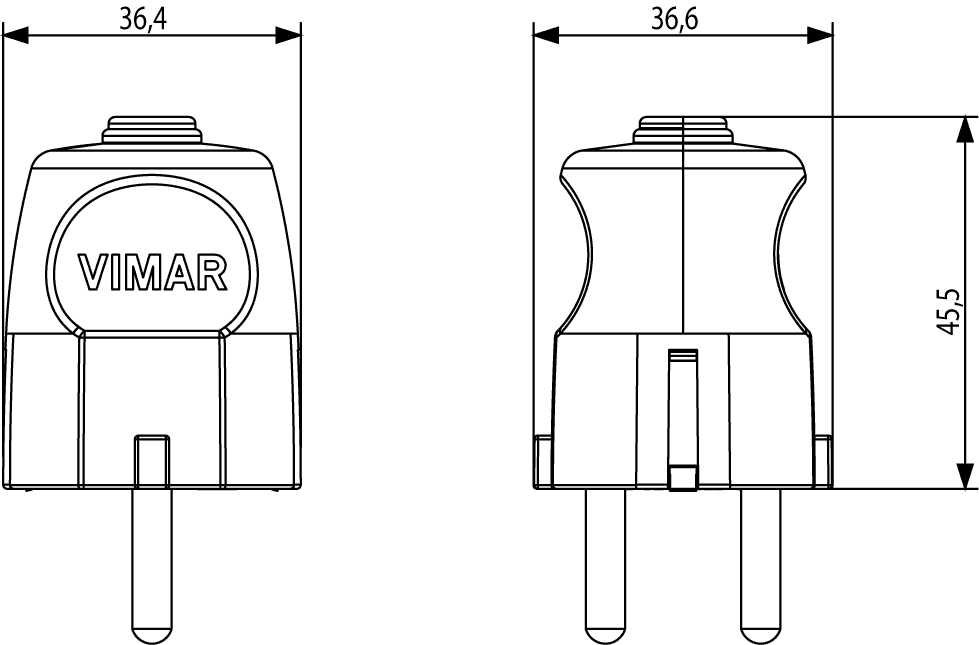

Drawings

Class group
Domestic switching devices
Class
Plug with protective contact
Material
Plastic
Material quality
Thermoplastic
Degree of protection (IP)
IP20
Insert direction
Straight
Connection system
Screwed terminal
Colour
White
Number of poles
2
Nominal voltage
250 V
Nominal current
16 A

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352064393
1 NR
12x5x3.5 [cm]
30.8 [g]
Barcode Qty 100 NR
8007352064515
100 NR
28x25.5x19.5 [cm]
3,472 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
