2P+E 16A axial outlet universal black - 00225

Pdf

00225
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

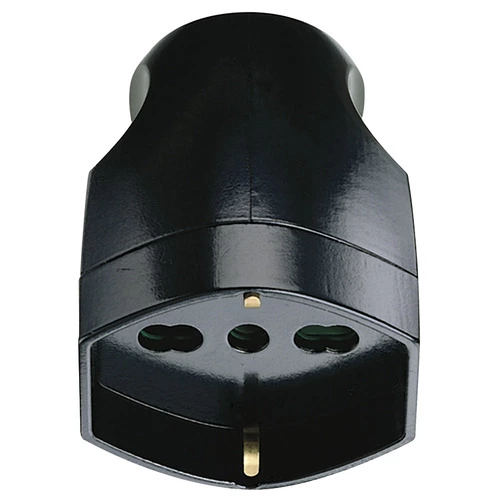

2P+E 16A axial outlet universal black
Portable 2P+E 16 A 250 V~ SICURY socket outlet , universal, for 2P 2,5 A Europlugs, for 2P and 2P+E 10 A and 16 A Italian standard plugs, 2P+E 16 A German standard plugs, axial cable entry, black. Earth connection is not realized with 2P+E 16 A 250 V~ French standard plug

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Coupler with protective contact
Model
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Degree of protection (IP)
IP20
Insert direction
Straight
Connection system
Screwed terminal
Suitable for protective contact pin
Yes
Colour
Black
RAL-number
0
Number of poles
2
Nominal voltage
250 V
Nominal current
16 A

00. CE Marking - EU

03. CSv-IMQ - Italy

37. Marking - Morocco

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352043886
1 NR
14x6x4.2 [cm]
56.6 [g]
Barcode Qty 50 NR
8007352043893
50 NR
28.5x27x17 [cm]
3,082 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
