1P 2[16]A line-end 1-way switch black - 00112

Pdf
Vimar - 00112 - 1P 2[16]A line-end 1-way switch black
Vimar - 00112 - 1P 2[16]A line-end 1-way switch black

00112
Portable installation / Lighting components / Portable controls / Portable 1-way switches

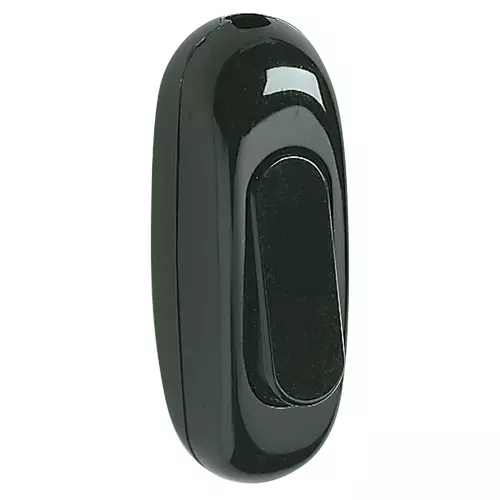

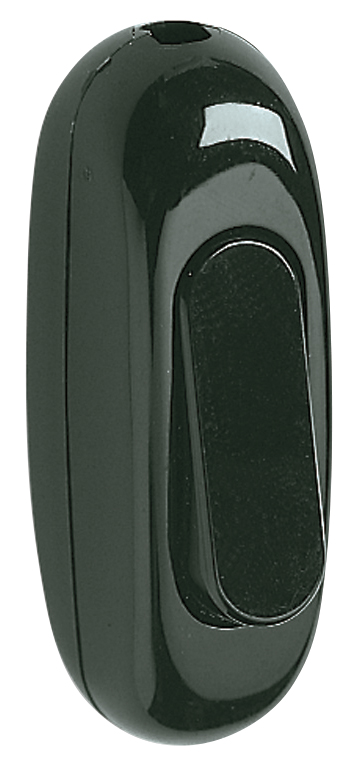

1P 2[16]A line-end 1-way switch black
Line-end 1P 2 [16] A 250 V~ flexible-cord 1-way switch, rocking button, for flat cable, black

Product Status
3 - Active

Drawings

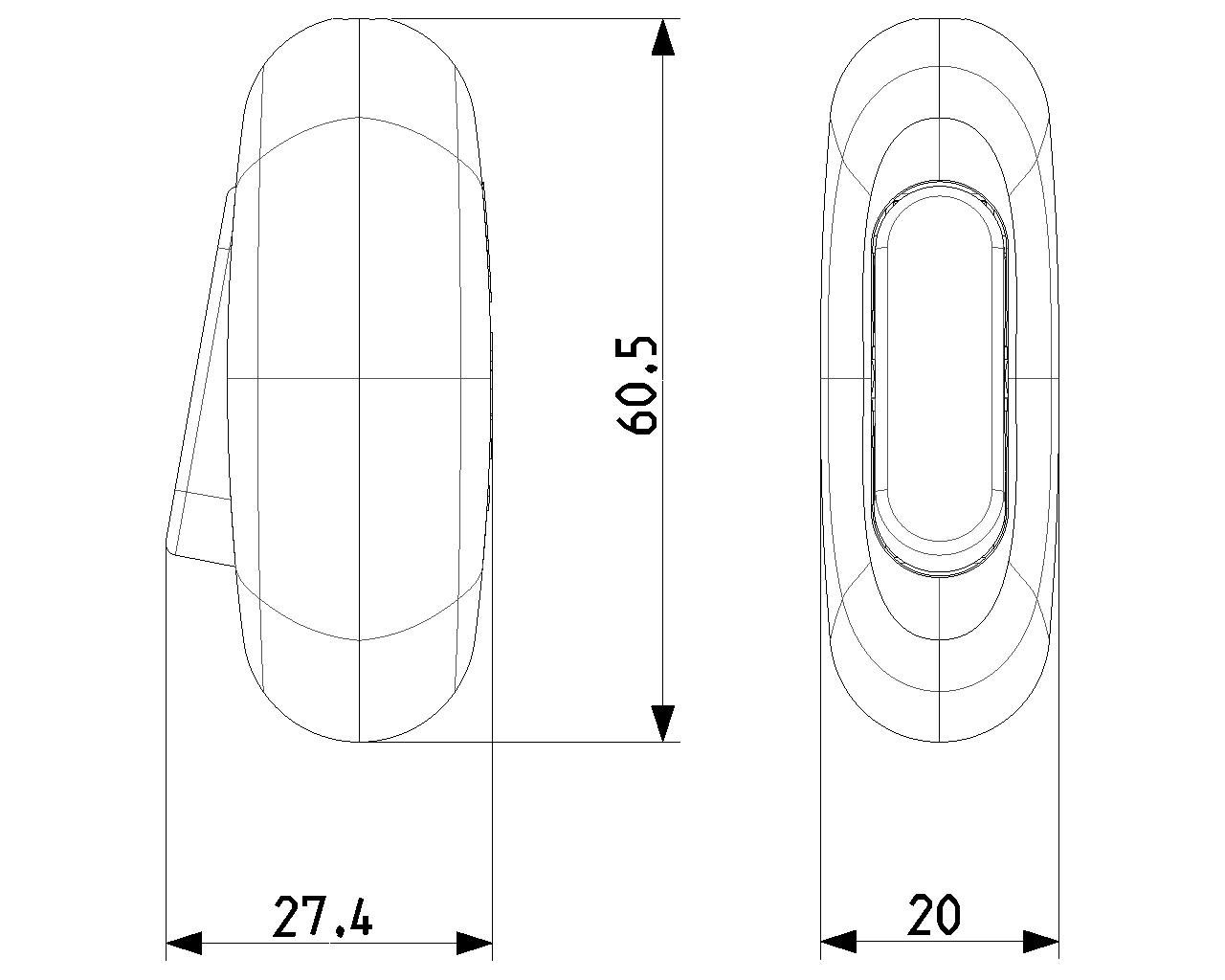

view encumbered art. 00112
PNG DXF
rear view art. 00112
PNG DXF

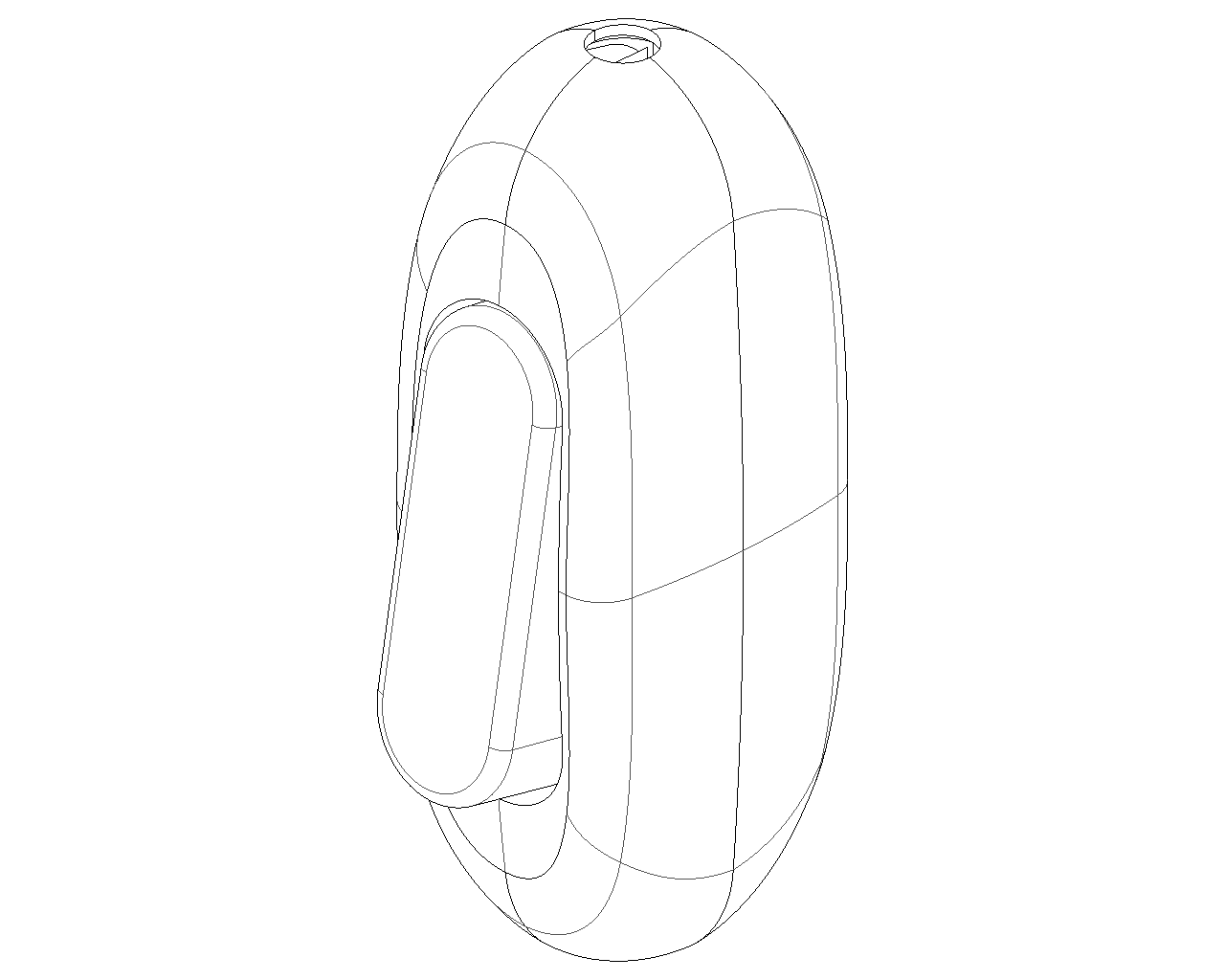

3D view art. 00112
PNG DXF
Class group
Domestic switching devices
Class
Cord switch/dimmer
Model
Other
Method of operation
Rocker
Type of load
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9005
Transparent
No
Nominal voltage
250 V
Nominal current
2 A
Power
0 - 500 W

00. CE Marking - EU

17. ENEC 03 (IMQ)

19. NOM - Mexico

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352035003
1 NR
2x6x3 [cm]
13.9 [g]
Barcode Qty 10 NR
8007352325609
10 NR
10x4x3 [cm]
139.333 [g]
Barcode Qty 100 NR
8007352009639
100 NR
28.4x18.4x11.6 [cm]
1,517.6 [g]
Barcode Qty 800 NR
8007352649125
800 NR
59.5x38.5x26.5 [cm]
12,800 [g]
