01700
Safety / By-alarm Plus / Surface mounting components / Non-modular components

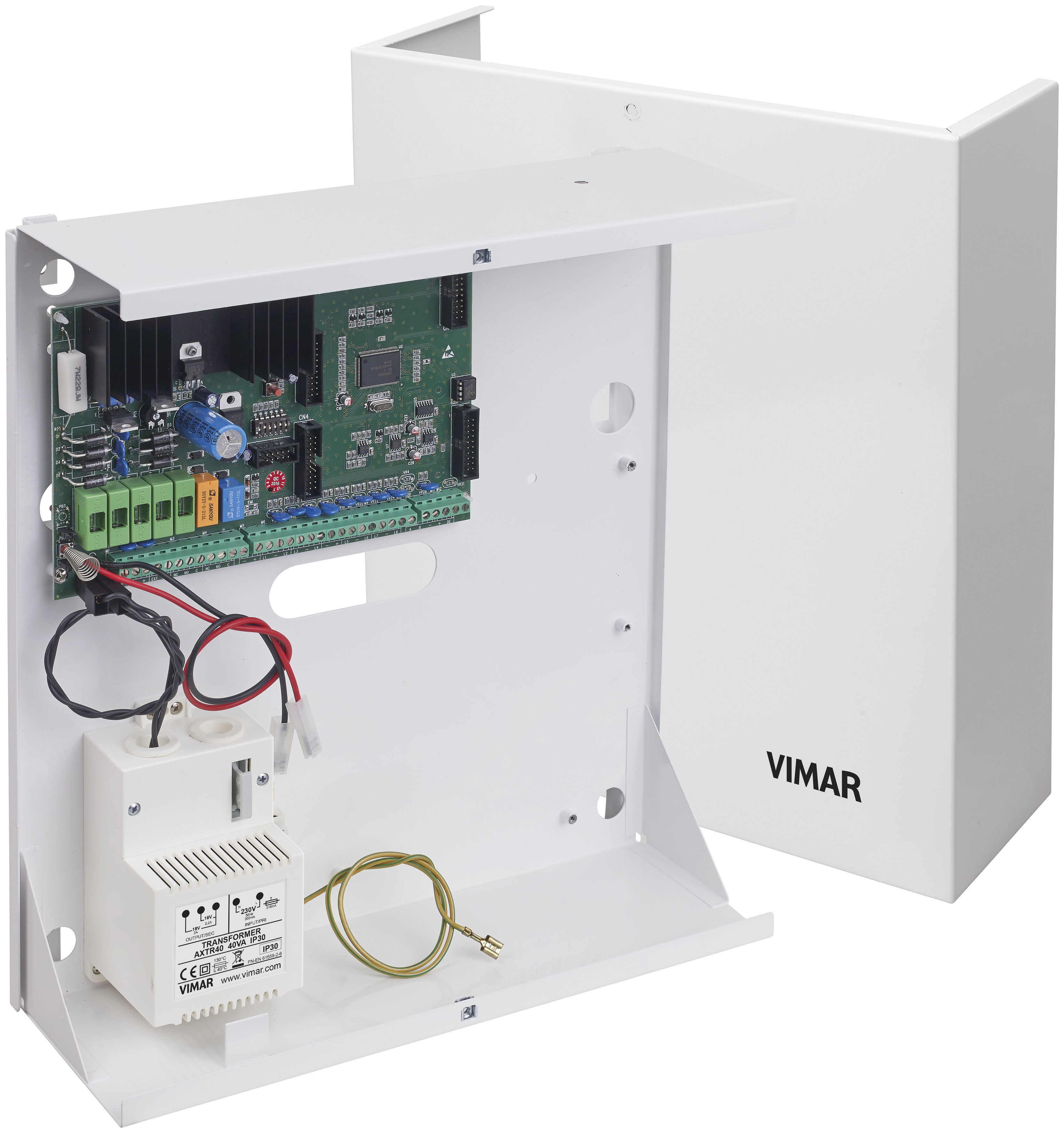

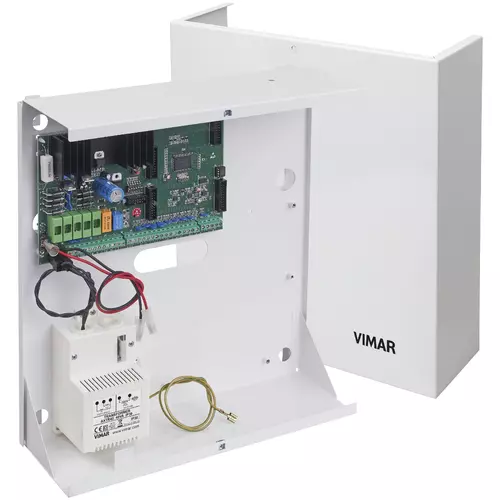

By-alarm - 24-zone control unit 230V~
By-alarm programmable control panel that can be managed via display keyboard, power supply 230 V~ 50 Hz, 8 local inputs expandable to 24 via the expansion modules, 1 power supply output 13.8 Vdc 1.5 A expandable with additional power supply unit, 1 alarm relay output, 1 change-over relay output 3 A 24 V~ expandable with another 24 via expansion modules, complete with metal enclosure, surface mounting
Product Status
9 - Discontinued
Sheets, Manuals, Documentation
- Multilanguage instructions sheet (523 kb)
- Manuale per l'installazione (4477 kb)
- Installation manual (4414 kb)
- Manuale di programmazione (2468 kb)
- Programming manual (1832 kb)
Product Software
Drawings
| Question: | Can I connect roller shutter or inertia sensors (art.01825, art.01826) directly on the control panel 01700 or 01703 inputs? |
|---|---|
| Answer: | No. These sensors are managed exclusively by the expansion module art.01709 inputs. |
